Park/Neutral Position (PNP) Switch Test

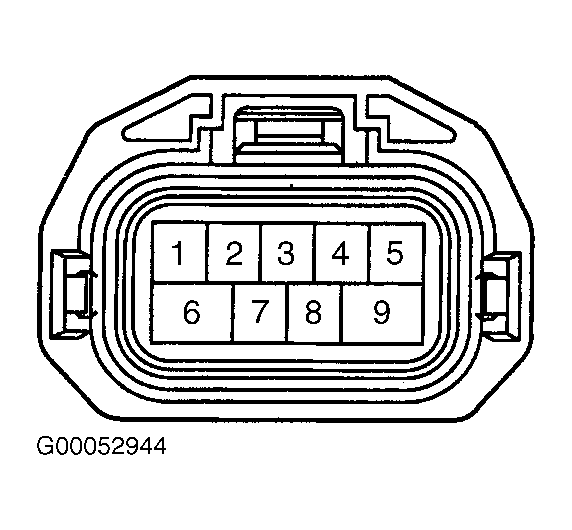

Disconnect Park/Neutral Position (PNP) switch connector. See COMPONENT LOCATIONS . Check for continuity between specified terminals of PNP switch. See PARK/NEUTRAL POSITION (PNP) SWITCH CONTINUITY SPECIFICATIONS table. See Fig 1 or Fig 2 . If continuity is not as specified, replace PNP switch.
PARK/NEUTRAL POSITION (PNP) SWITCH CONTINUITY SPECIFICATIONS
| Application & Gearshift Position | Continuity Between Terminals No. | |
|---|---|---|
| ES300 | ||
| P | 2 & 7 | |
| R | 2 & 8 | |
| N | 2 & 9 | |
| D | 2 & 10 | |
| 2 | 2 & 3 | |
| L | 2 & 4 | |
| GS300, GS430, LS430 & RX300 | ||
| P | 3 & 1 | |
| R | 2 & 3 | |
| N | 3 & 5 | |
| D, 4 | 3 & 7 | |
| 3 | 3 & 4 | |
| 2 Or L | 3 & 8 | |
| IS300 | ||
| P | 1 & 3 | |
| R | 2 & 3 | |
| N | 3 & 5 | |
| D Or M | 3 & 7 | |
| 3 | 3 & 4 | |
| 2 Or L | 3 & 8 | |
