Headlight Beam Level Control System: Location

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

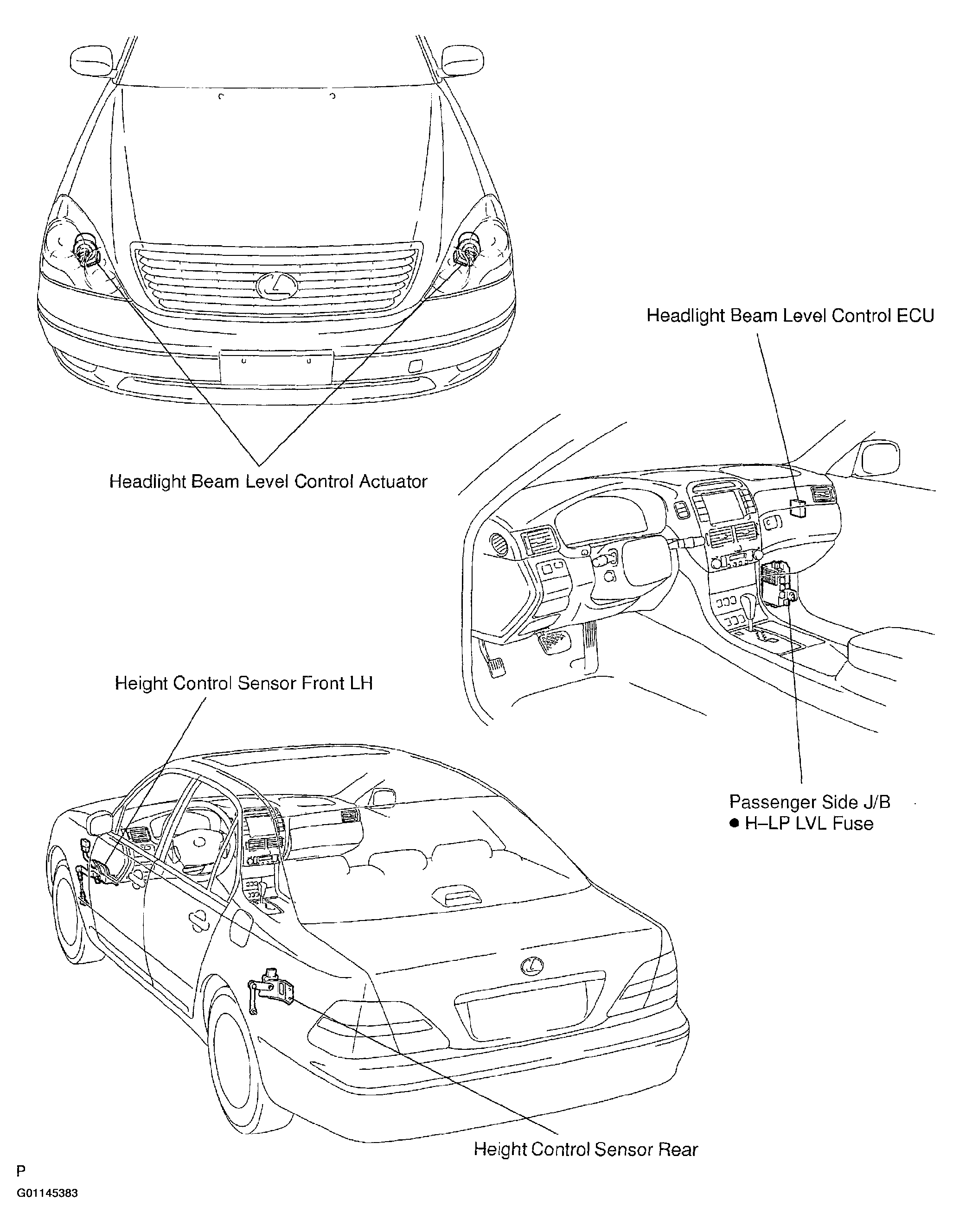

Fig 1: Locating Headlight Beam Level Control System Components
G01145383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
