Overhead J/B side: INSPECT FRONT PERSONAL LIGHT ASSEMBLY
Disconnect the overhead J/B assembly connector.

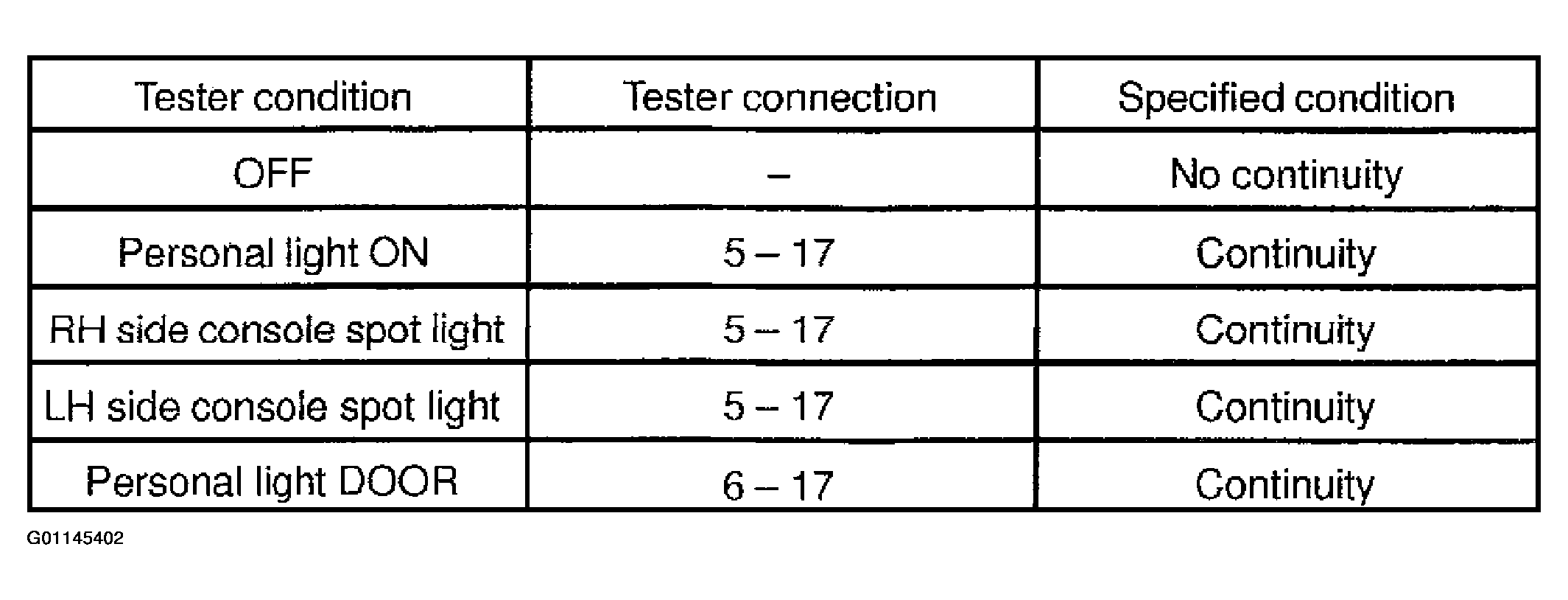

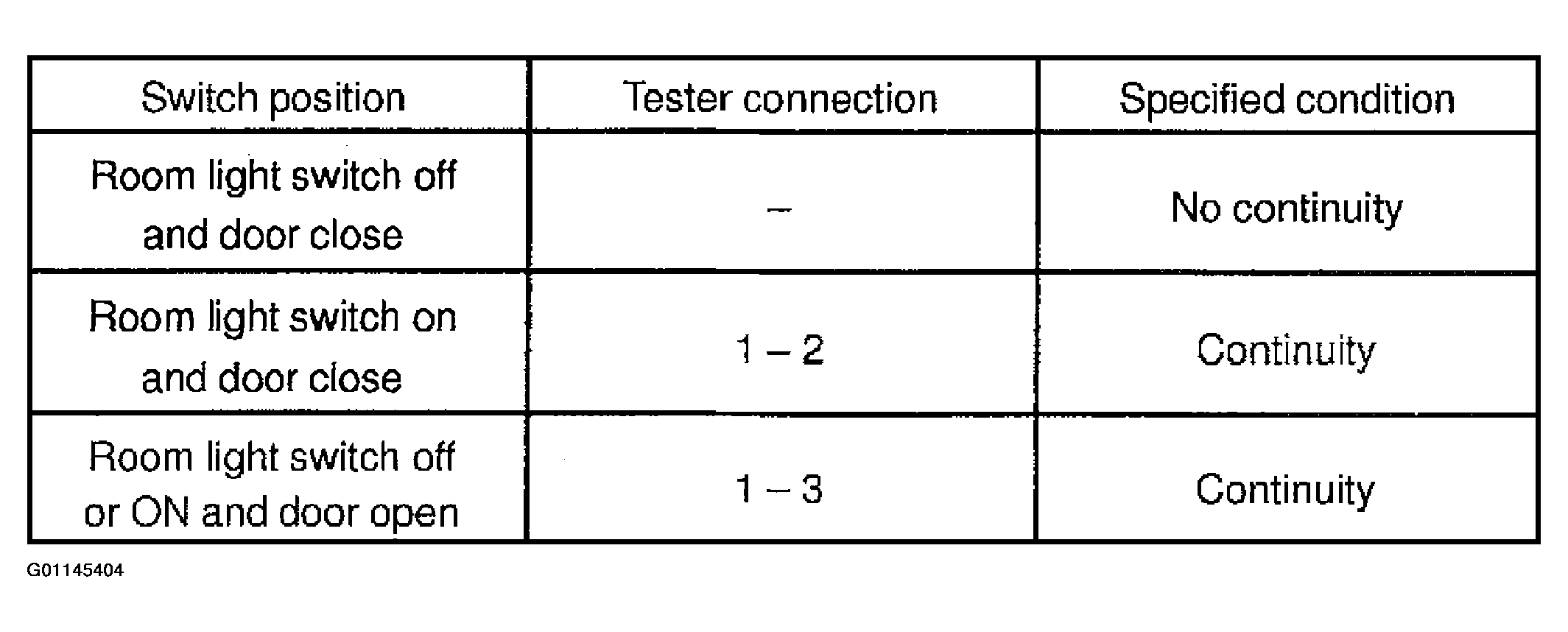

Fig 1: Front Personal Light Continuity Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the overhead J/B assembly.

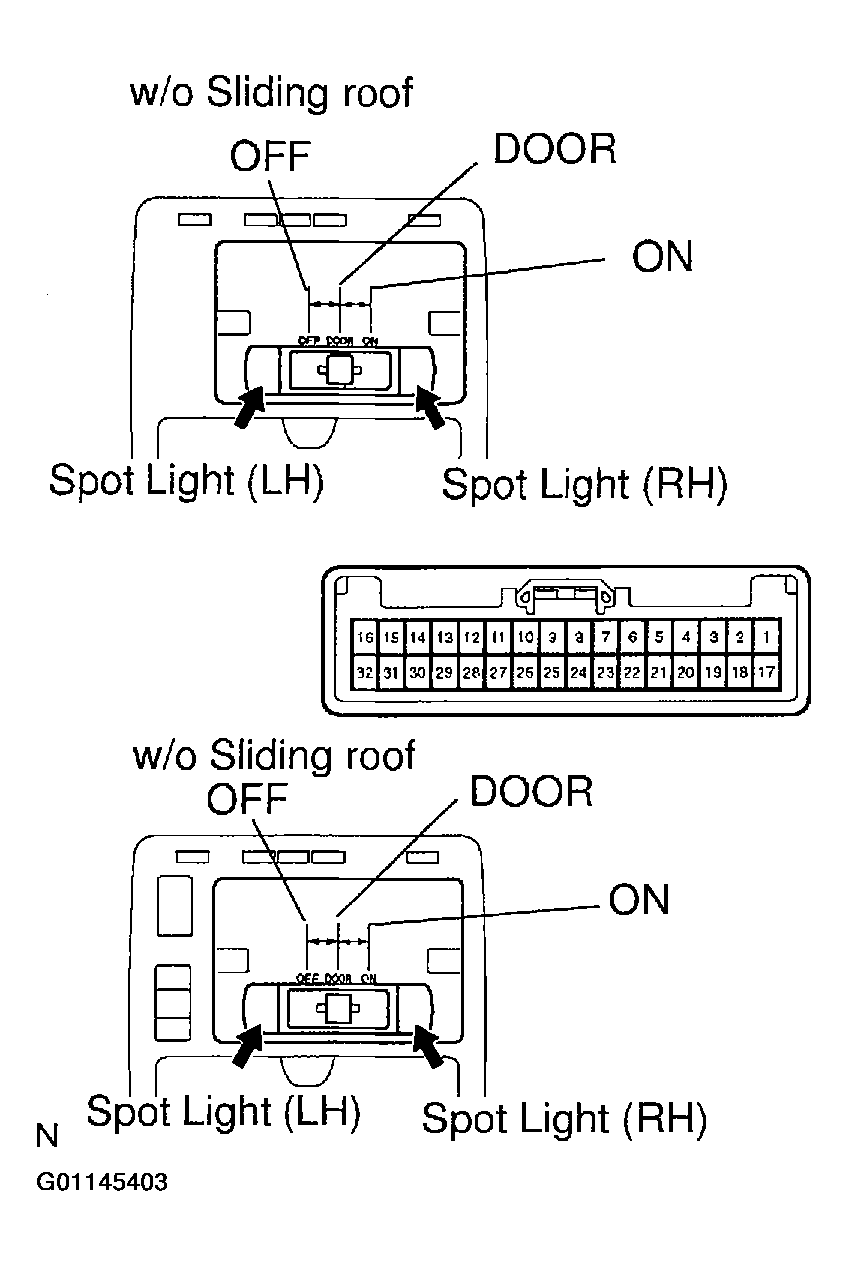

Fig 2: Identifying Front Personal Light Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Rear room light: INSPECT REAR PERSONAL LIGHT ASSEMBLY CONTINUITY

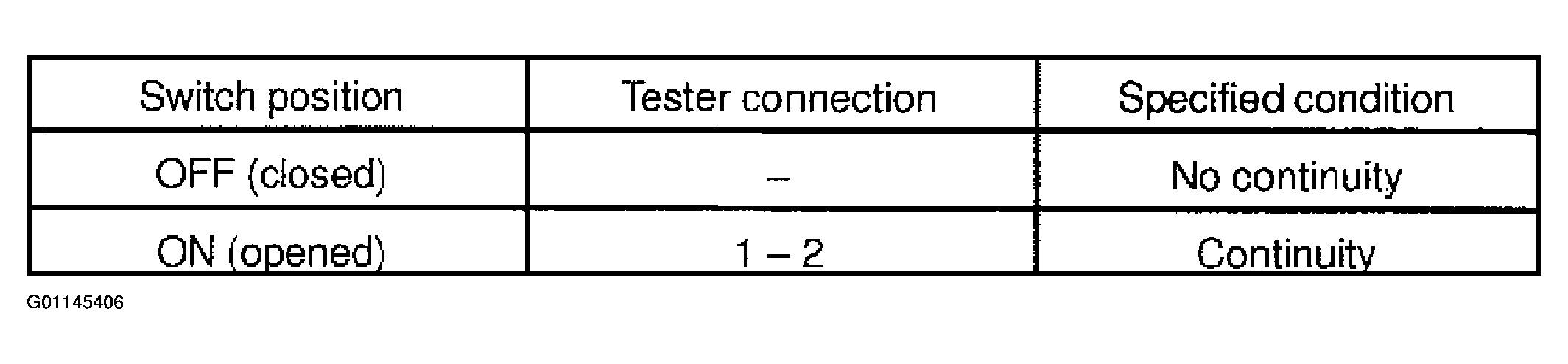

Fig 3: Rear Personal Light Switch Continuity Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace bulb or rear personal light assembly.

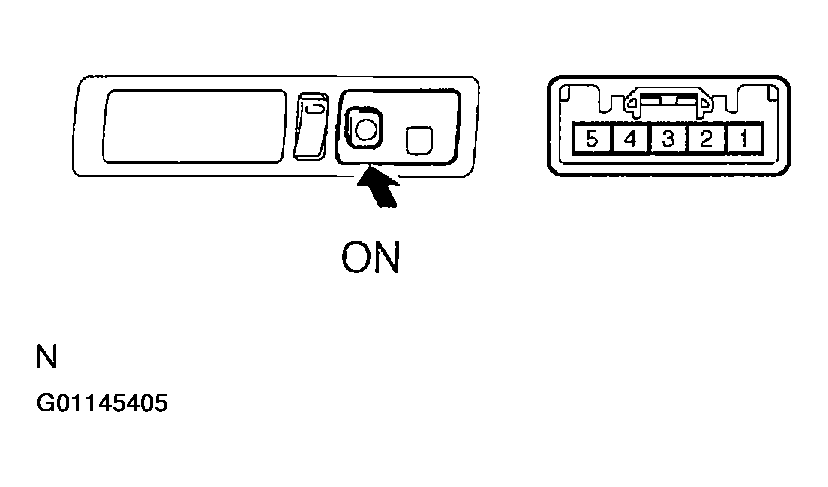

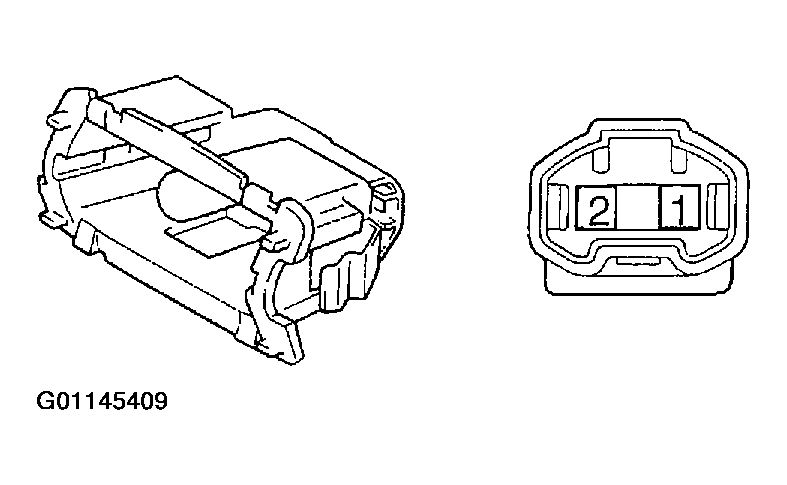

Fig 4: Identifying Rear Personal Light Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT VANITY LIGHT CONTINUITY

Fig 5: Vanity Light Continuity Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the vanity light assembly or bulb.

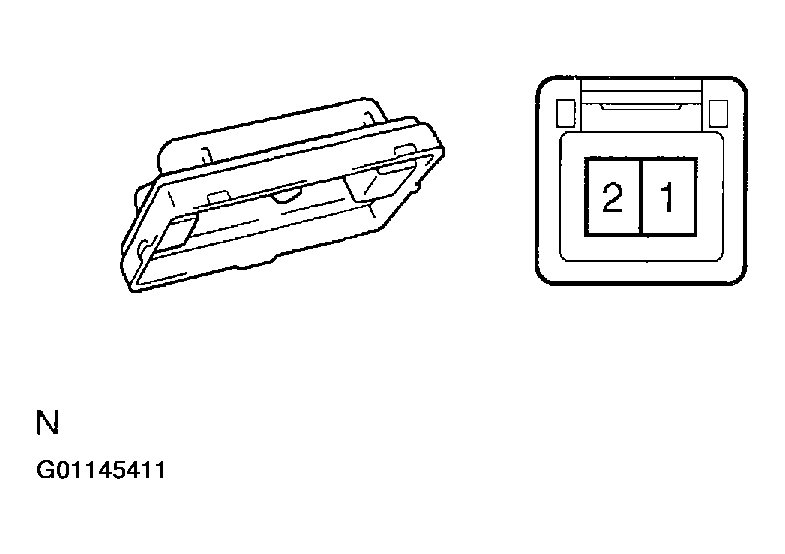

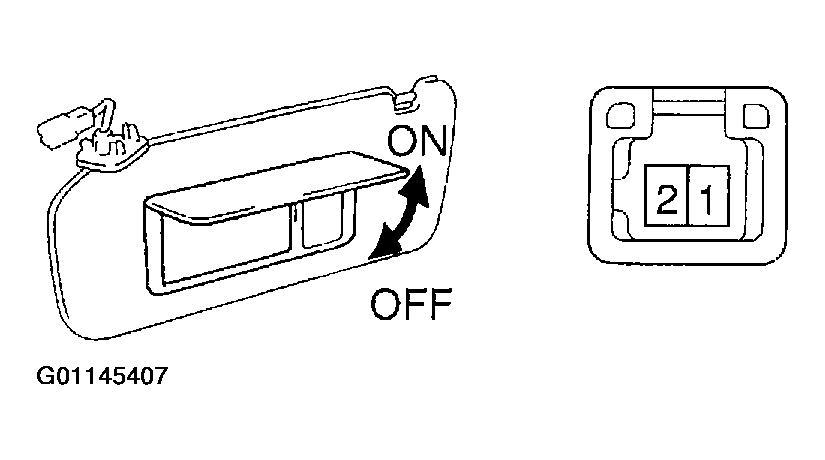

Fig 6: Identifying Vanity Light Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DOOR COURTESY SWITCH CONTINUITY
1. Check that continuity exists between terminals and the switch body with the switch ON (switch pin released: opened door).
2. Check that no continuity exists between terminals and the switch body with the switch OFF (switch pin pushed in: closed doors)
  If operation is not as specified, replace the switch.

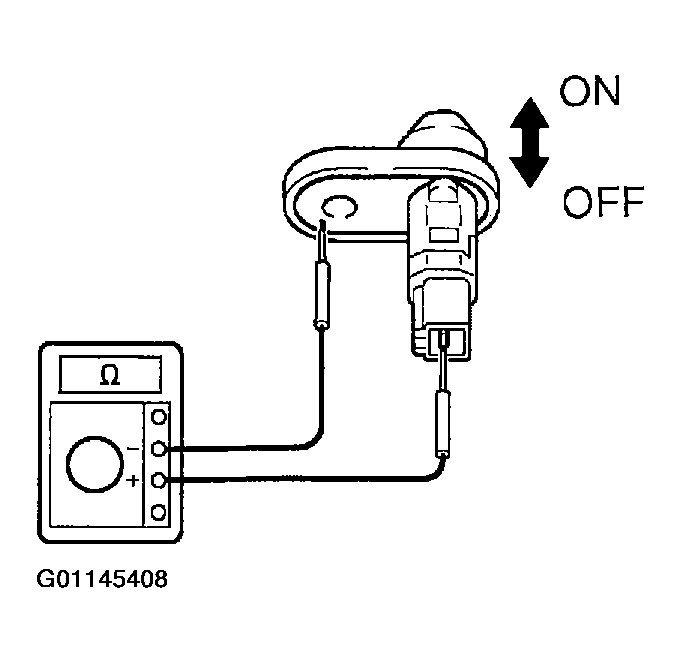

  Fig 7: Inspecting Door Courtesy Switch Continuity
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT DOOR COURTESY LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly or bulb.

Fig 8: Identifying Door Courtesy Light Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT LUGGAGE COMPARTMENT LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly or bulb.

Fig 9: Identifying Luggage Compartment Light Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT GLOVE COMPARTMENT LIGHT CONTINUITY
Using the ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly or bulb.

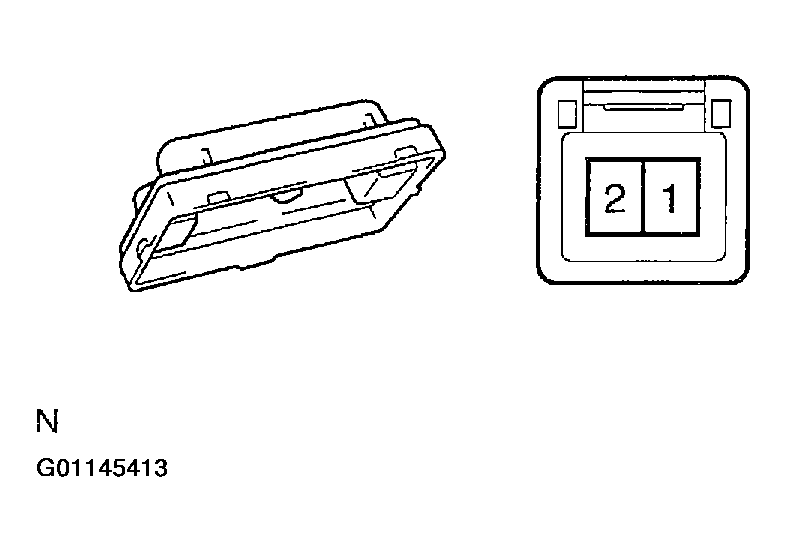

Fig 10: Identifying Glove Compartment Light Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT LICENSE PLATE LIGHT CONTINUITY
Using the ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly or bulb.

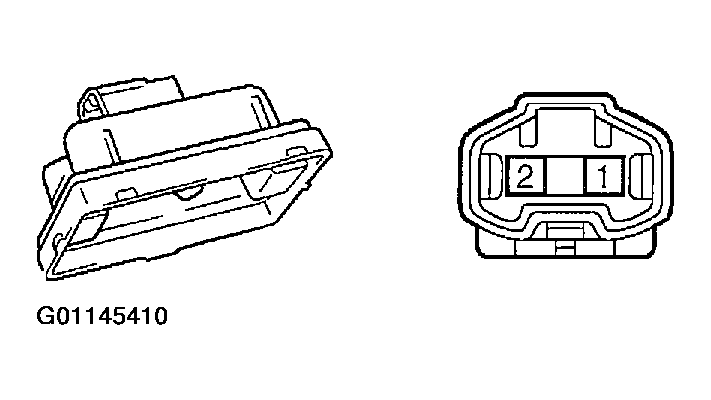

Fig 11: Identifying License Plate Light Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STEP LIGHT CONTINUITY
Using the ohmmeter, check that continuity exists between terminals.

If continuity is not as specified, replace the light assembly or bulb.

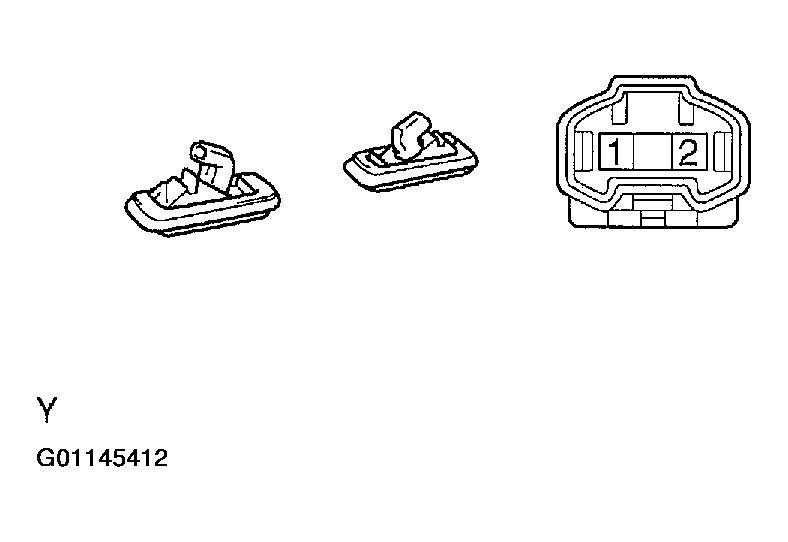

Fig 12: Identifying Step Light Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT OUTER FOOT LIGHT
Connect the positive (+) lead from the battery to terminal 10 and the negative (-) lead to terminal 2, and check that the outer foot light goes on.

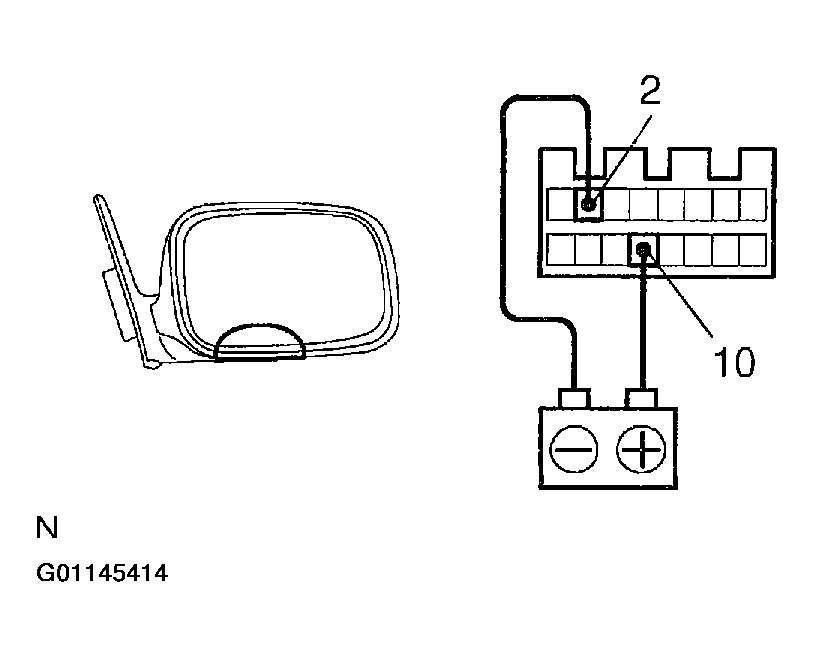

Fig 13: Inspecting Outer Foot Light
