Stop Light System: Inspection

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STOP LIGHT SWITCH CONTINUITY

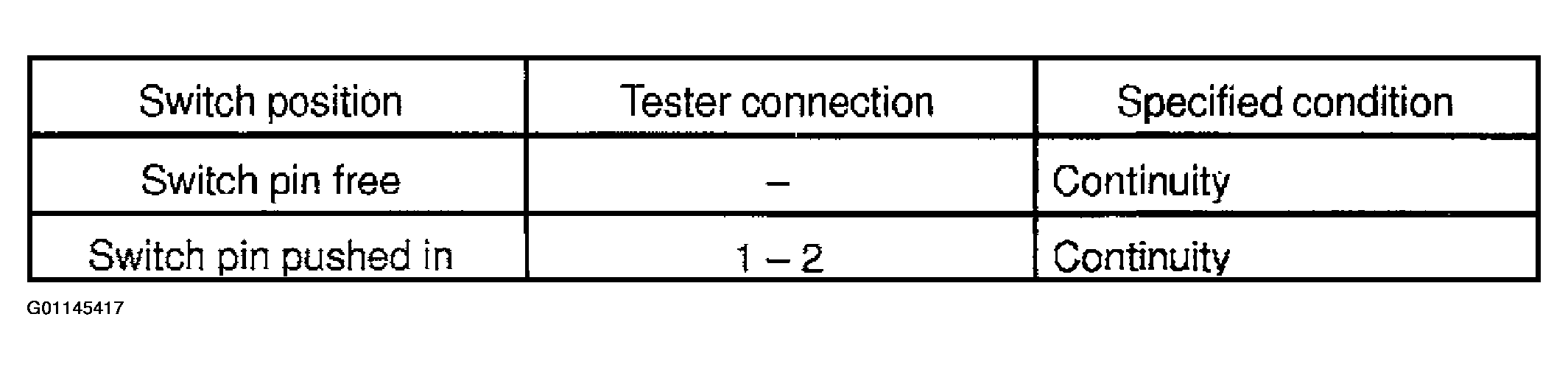

Fig 1: Stop Light Switch Continuity Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.

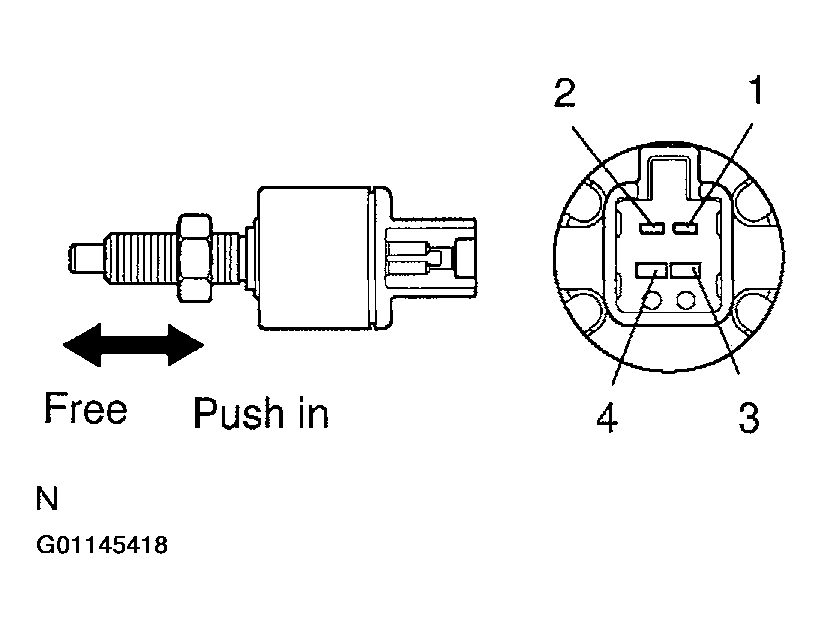

Fig 2: Identifying Stop Light Switch & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STOP LIGHT SWITCH CIRCUIT
Disconnect the connector from the switch and inspect the connector on the wire harness side, as shown.

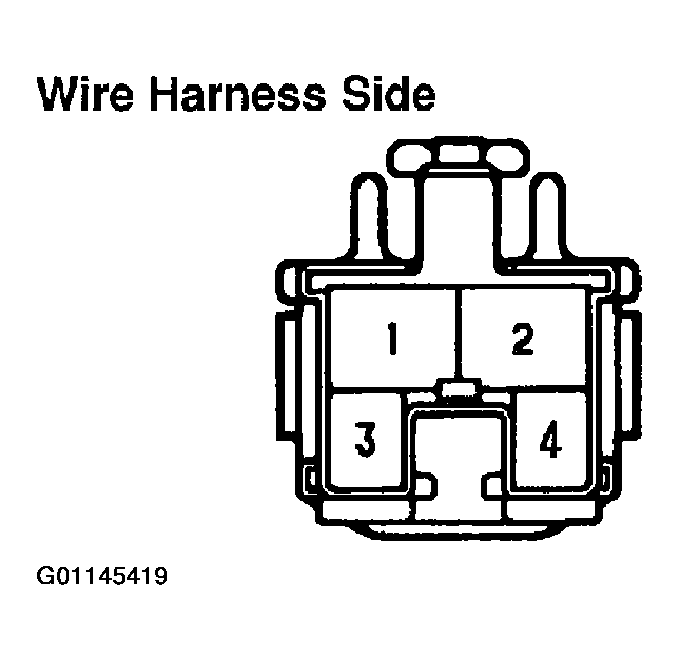

Fig 3: Identifying Stop Light Switch Connector (Wire Harness Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

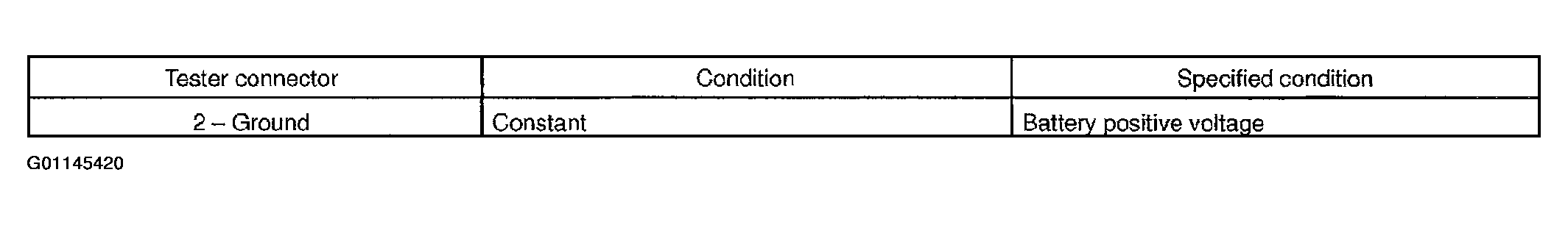

Fig 4: Stop Light Switch Connector Condition Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If circuit is not as specified, inspect the power source or wire harness.
