Combination Meter: Disassembly

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

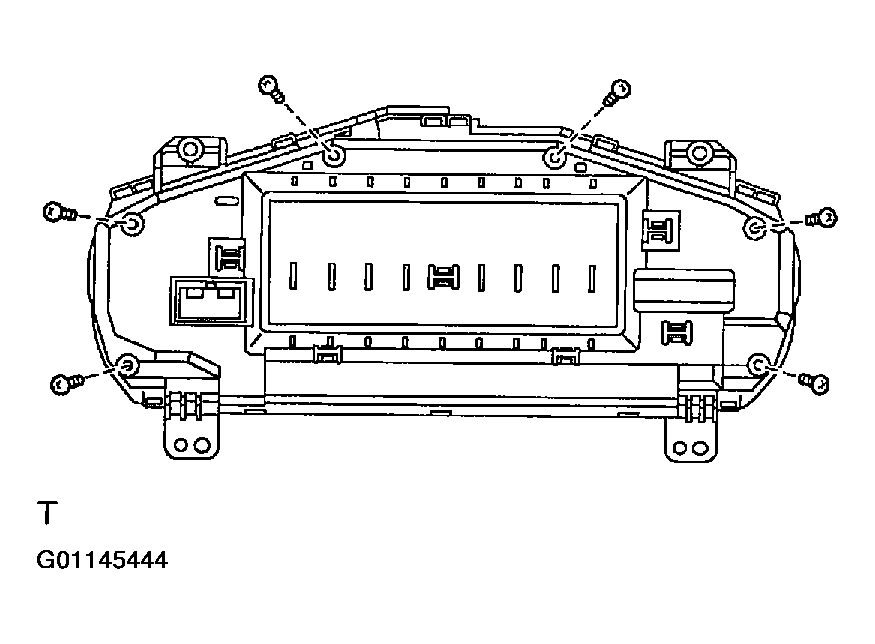

REMOVE METER COVER
Remove the 6 screws and the meter cover.

NOTE: Be careful of the high-temperature earth plate immediately after the ignition switch turned off.
Do not place the combination meter with its front side down for 30 min or more after it is disassembled.

Fig 1: Removing Meter Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

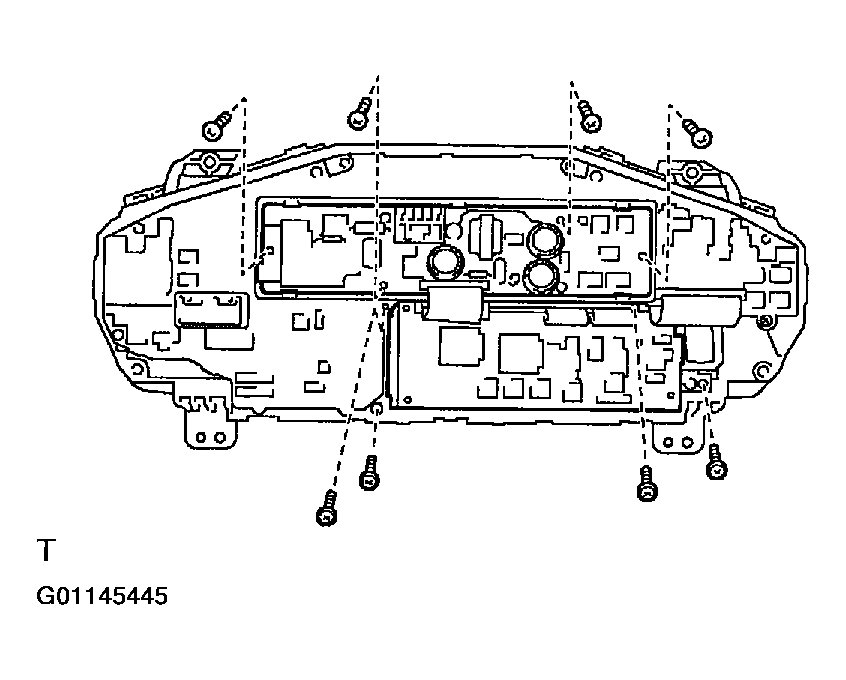

REMOVE PANEL ASSEMBLY
1. Remove the 8 screws and the telltale light assembly.
2. Disconnect a flat circuit plate.
  HINT:

  When disconnecting the flat circuit plate, disconnect it holding the connector.

  Fig 2: Removing 8 Screws And Telltale Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

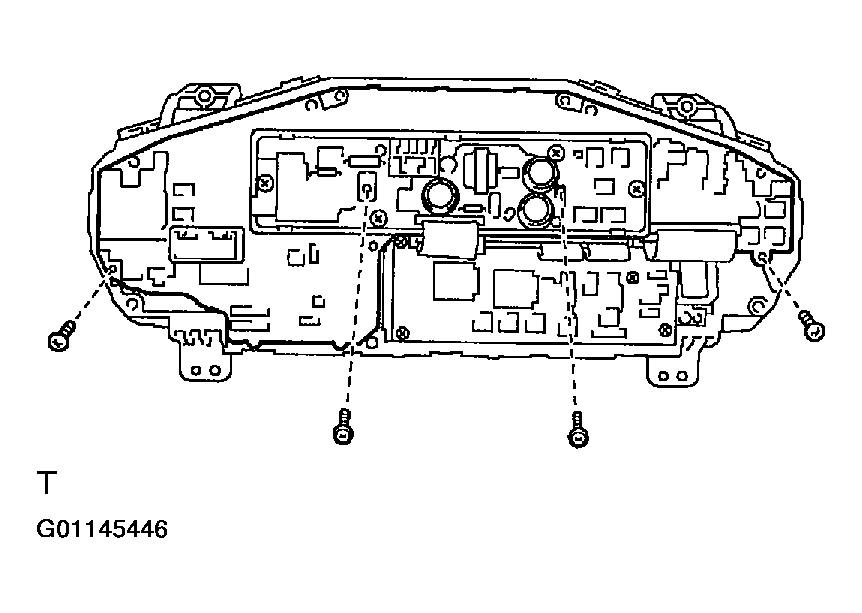

REMOVE METER ECU PLATE
Remove the 4 screws and the meter ECU plate assembly.

Fig 3: Removing 4 Screws And Meter ECU Plate Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

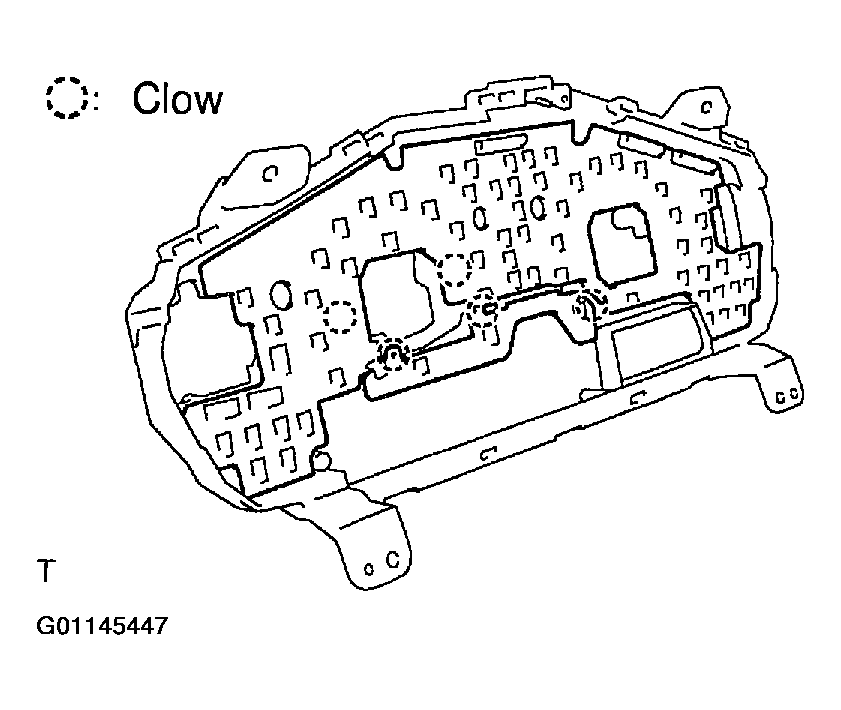

REMOVE METER CASE AND METER CIRCUIT PLATE
Be careful not to break 5 claws on the meter case when the meter circuit plate is removed from the meter case.

Fig 4: Removing Meter Case And Meter Circuit Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

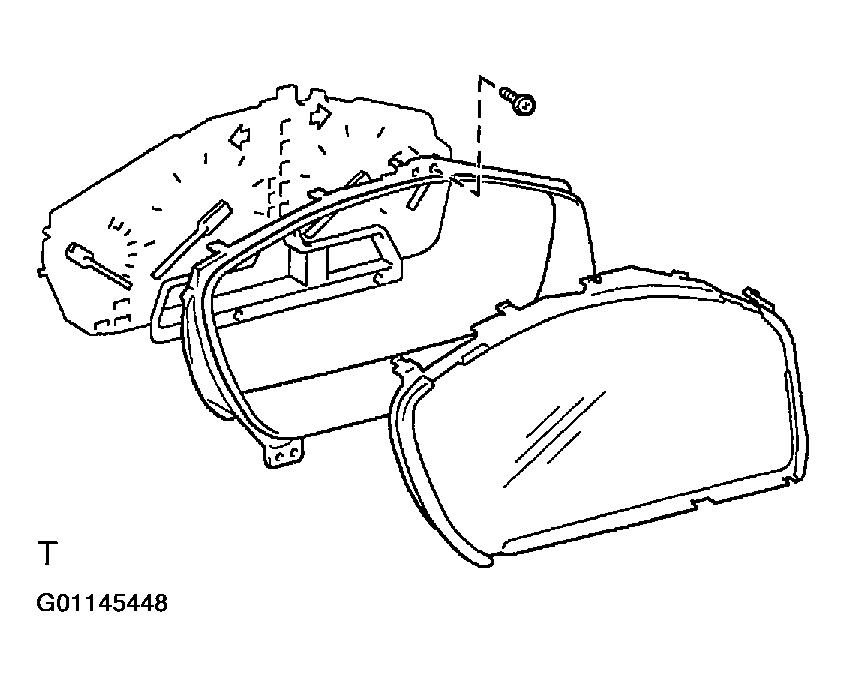

REMOVE METER GLASS AND METER PLATE
Remove the screw.

Fig 5: Removing Meter Glass And Meter Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
