Power Seat Control System: Location

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

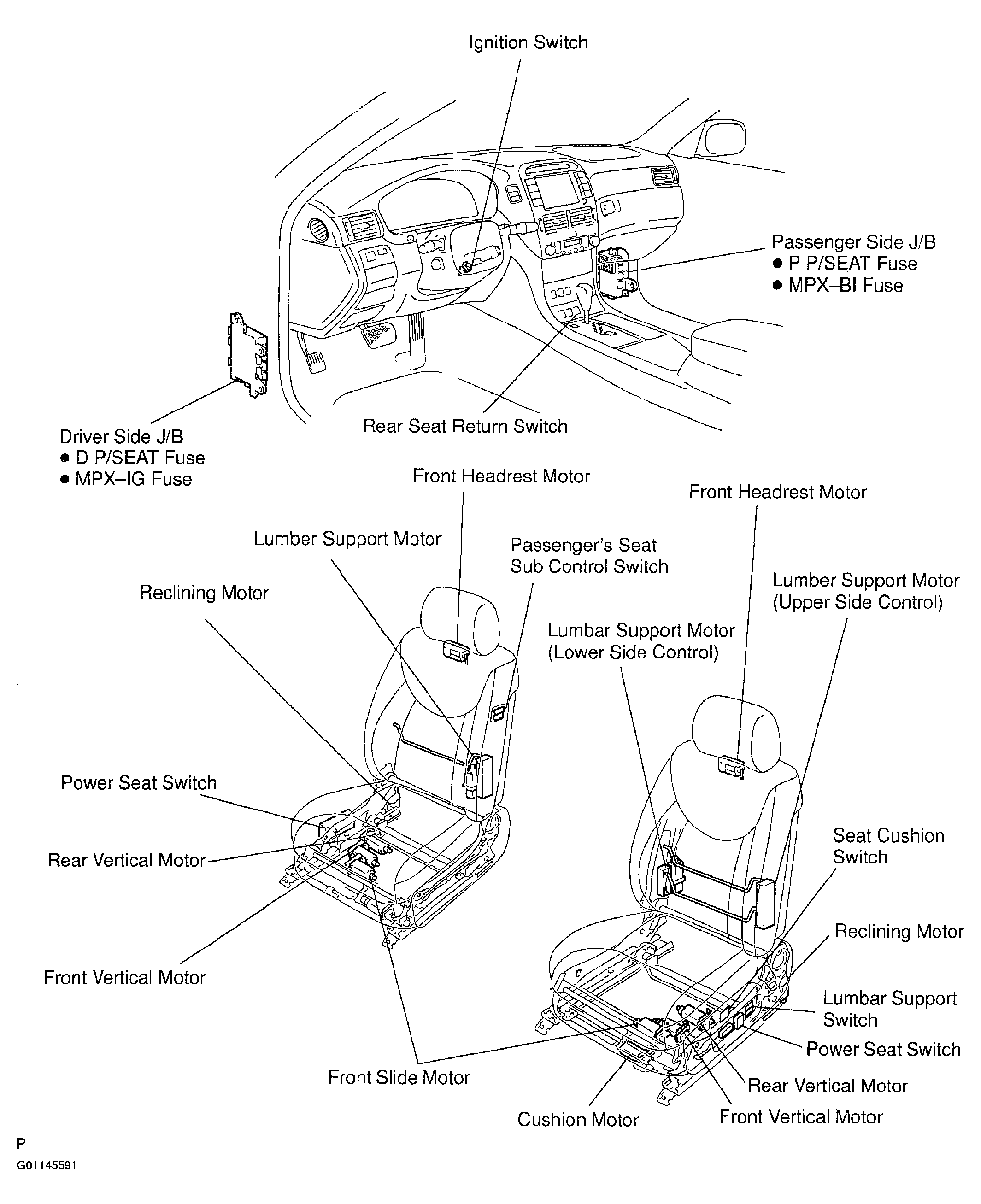

Fig 1: Identifying Power Seat Control System (1 Of 2)
G01145591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

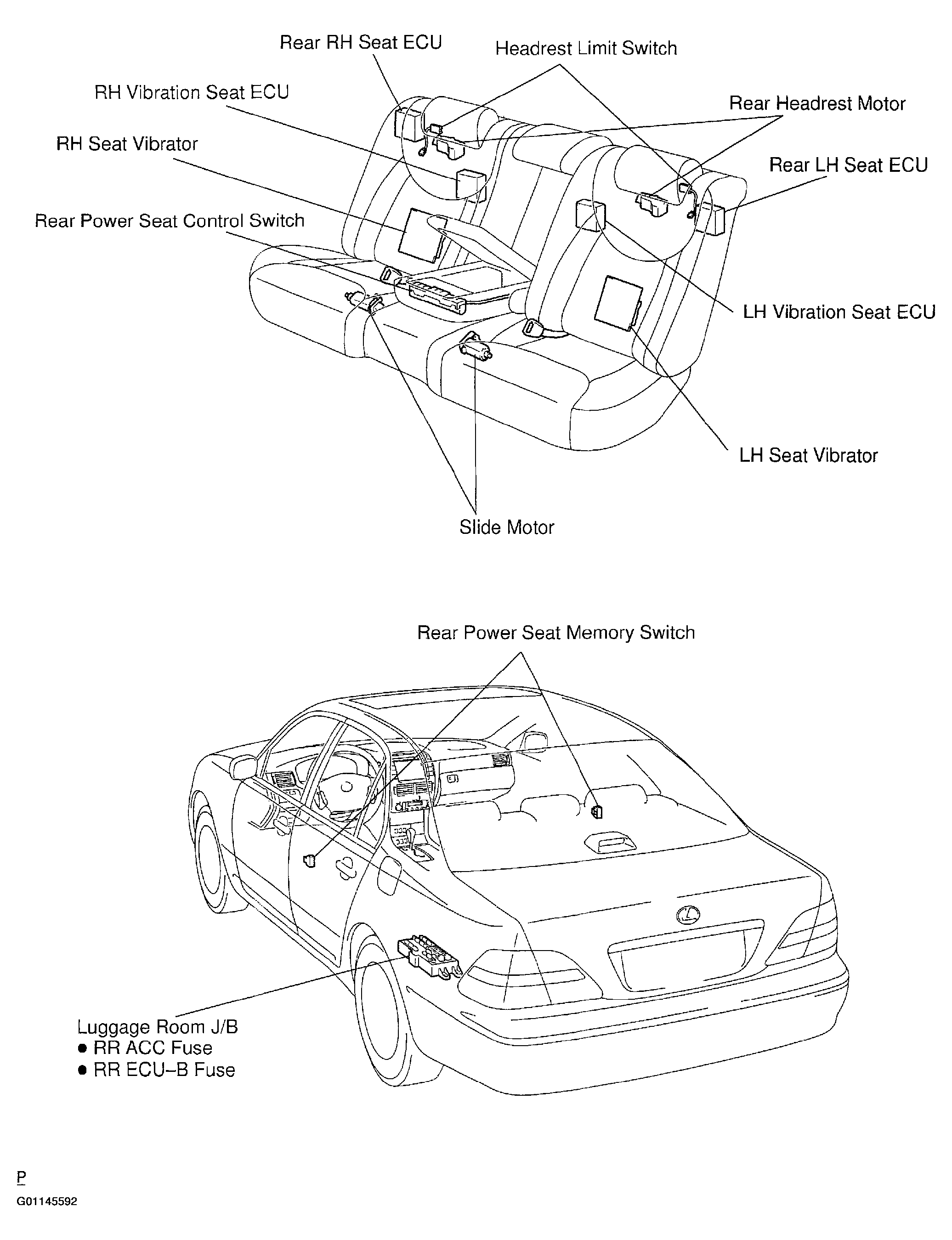

Fig 2: Identifying Power Seat Control System (2 Of 2)
G01145592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
