Overhead Junction Block: Components

WARNING: This page is about a different car, the 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

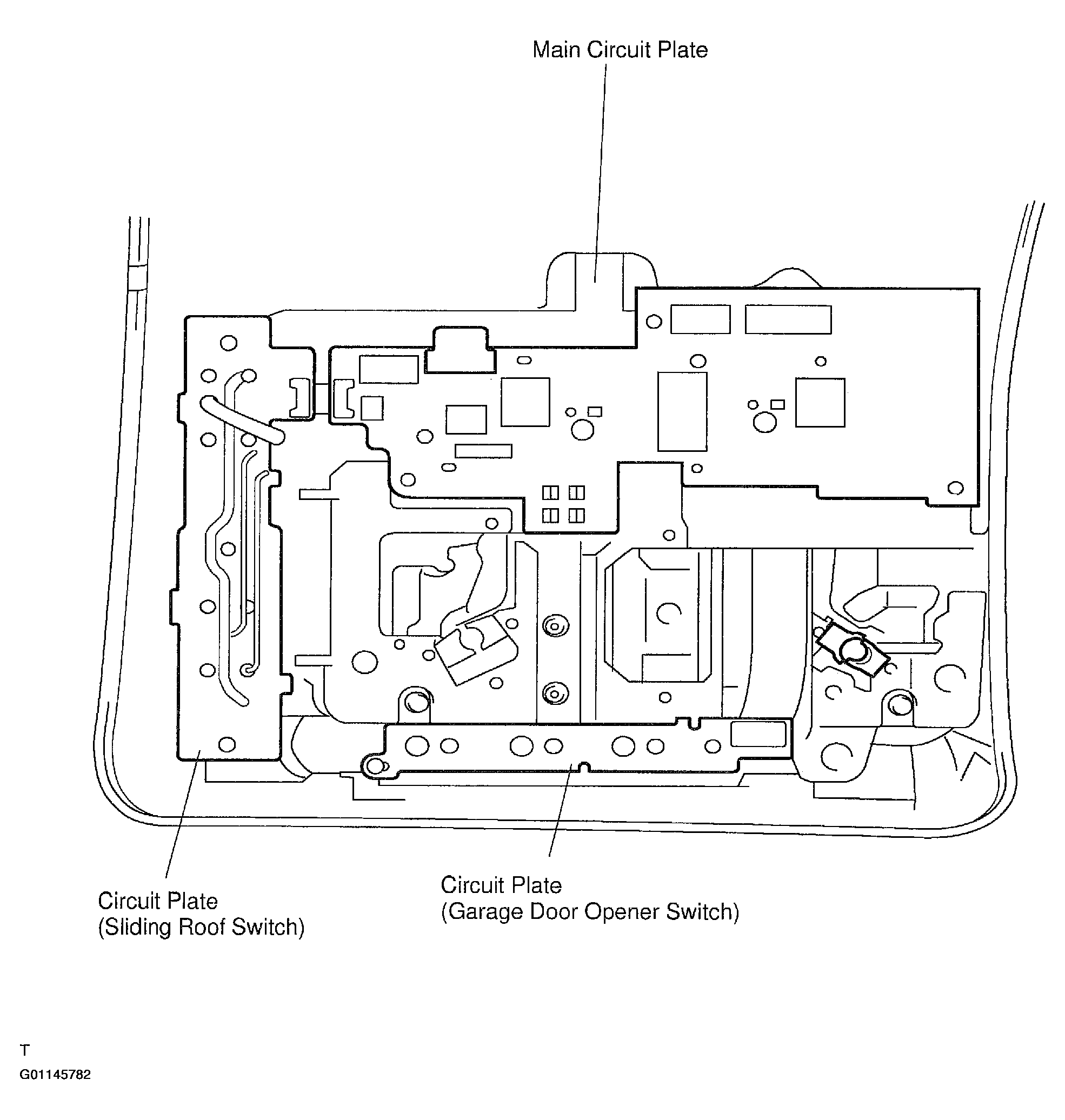

Fig 1: Locating Circuit Plate

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

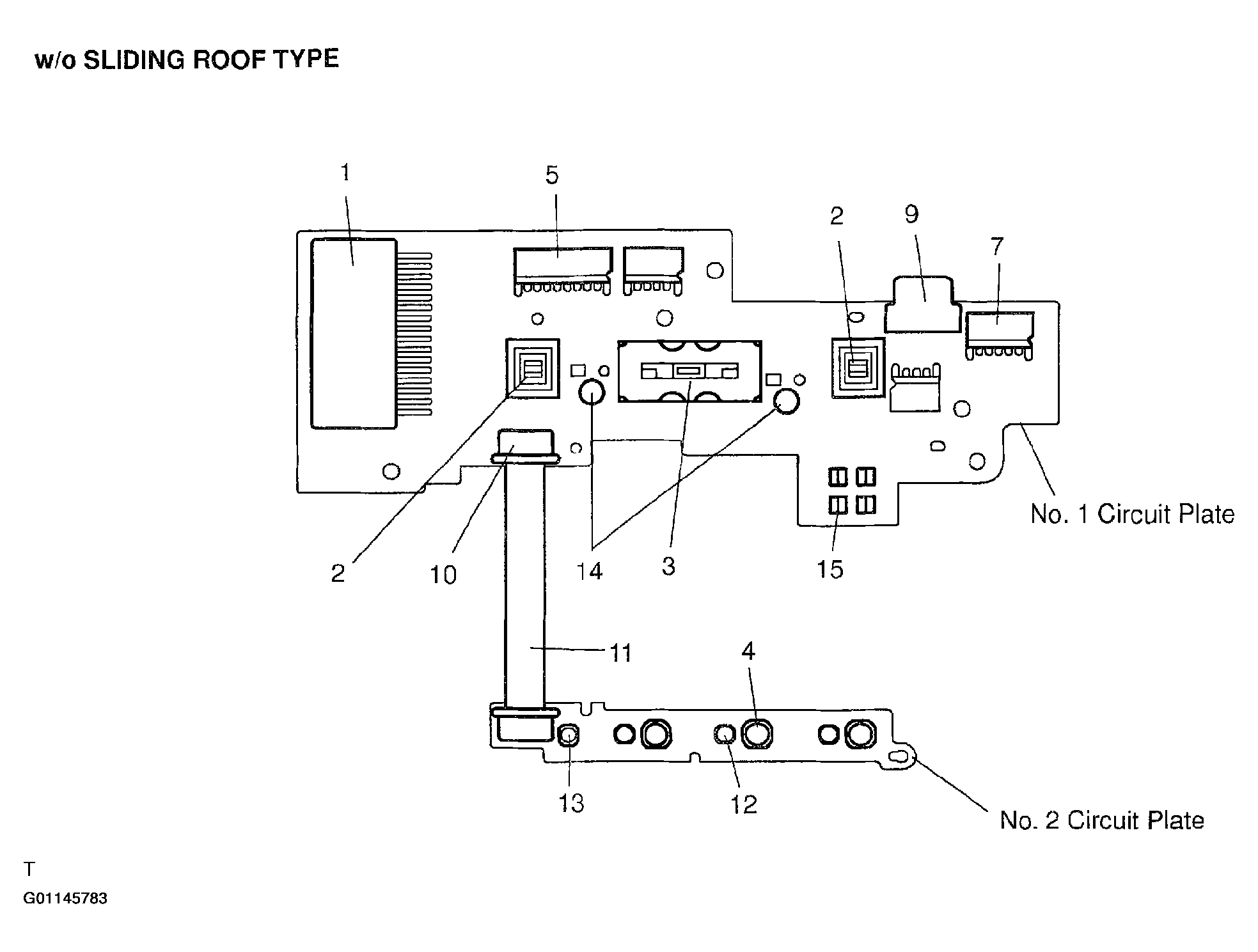

Fig 2: Locating Circuit Plates (w/o Sliding Roof Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

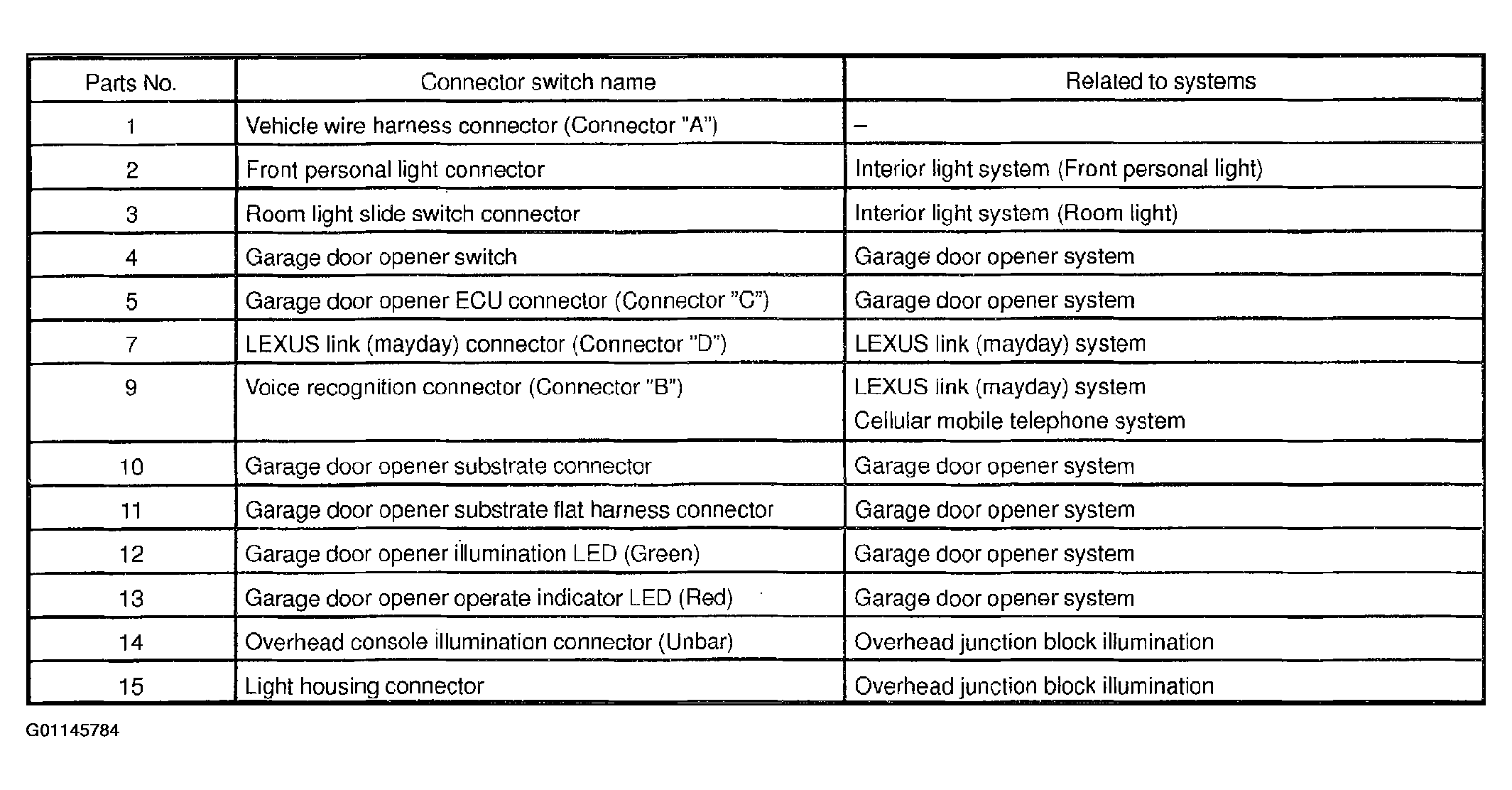

Fig 3: Circuit Plates Parts Reference Chart (w/o Sliding Roof Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

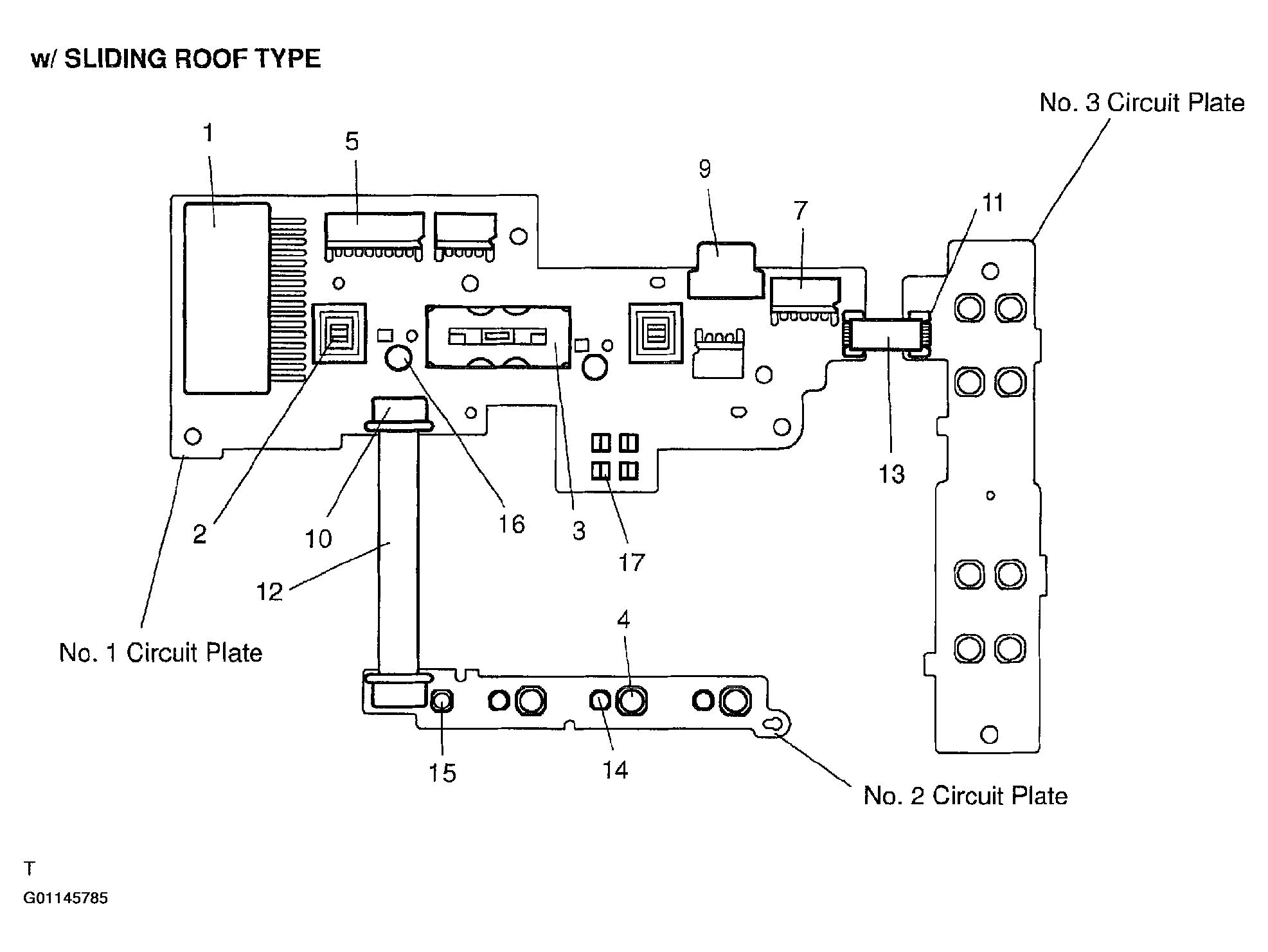

Fig 4: Locating Circuit Plates (w/ Sliding Roof Type)

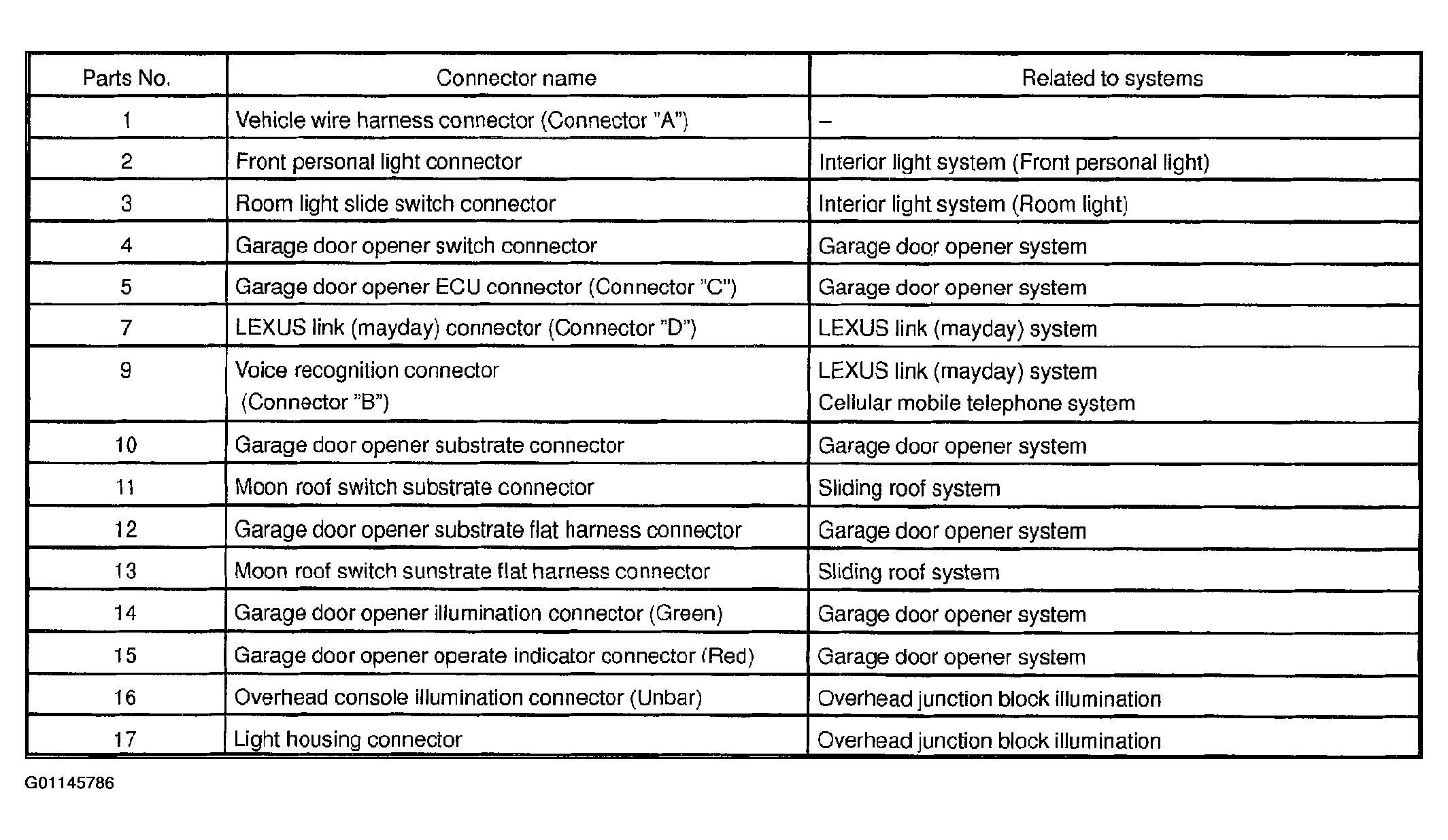

Fig 5: Circuit Plates Parts Reference Chart (w/ Sliding Roof Type)
