Laser Sensor: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. SEPARATE BATTERY NEGATIVE TERMINAL
  2. REMOVE ENGINE UNDER COVER NO.1 (SEE  REPLACEMENT  )
  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH (SEE  REPLACEMENT  )
  4. REMOVE FRONT FENDER LINER LH (SEE  REPLACEMENT  )
  5. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH (SEE  REPLACEMENT  )
  6. REMOVE FRONT FENDER LINER RH (SEE  REPLACEMENT  )
  7. REMOVE FRONT BUMPER COVER (SEE  REPLACEMENT  )
  8. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSY (SEE  REPLACEMENT  )
  9. REMOVE LASER SENSOR
    1. Disconnect the connector and remove the laser sensor.

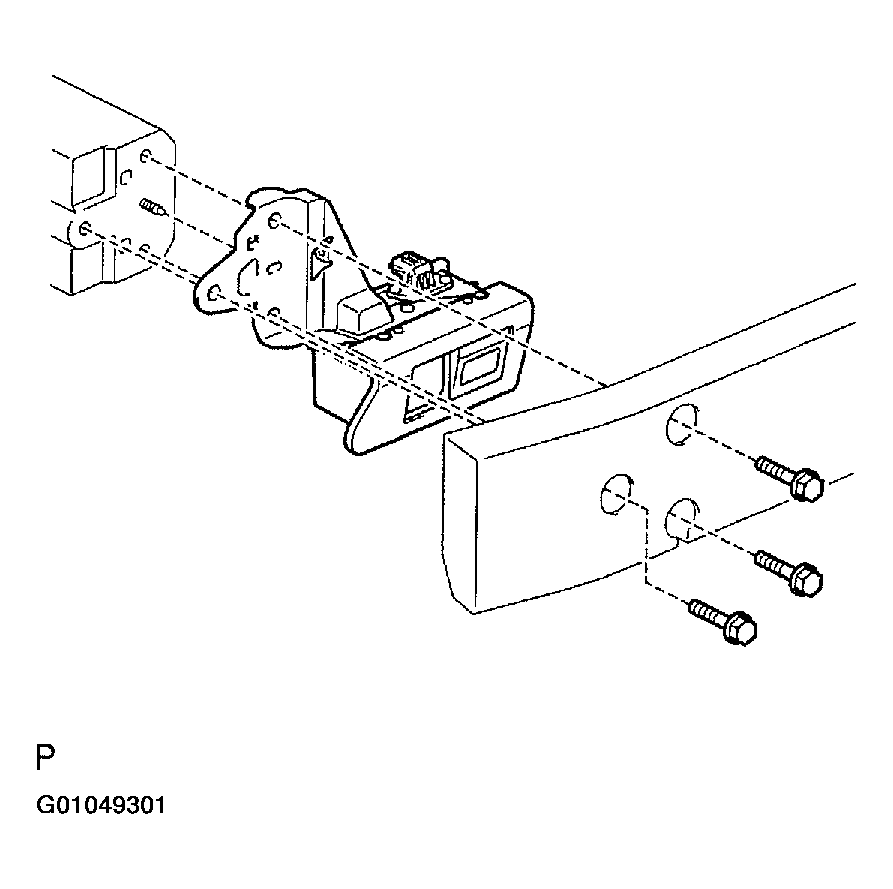

      Fig 1: Disconnecting Connector And Removing Laser Sensor
      G01049301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL LASER SENSOR
    NOTE: Do not install the laser sensor if it has been damaged or if it has received some sort of shock.
  11. INSTALL FRONT BUMPER REINFORCEMENT SUB-ASSY (SEE  REPLACEMENT  )
  12. ADJUST FOG LIGHT AIM (SEE  FOG LAMPS  )
  13. CHECK FOG LIGHT AIM
  14. ADJUST LASER SENSOR (SEE  ADJUSTMENT  )
