Fog Lamp Unit LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE RADIATOR GRILLE (See REPLACEMENT )
REMOVE FRONT FENDER LINER LH (See REPLACEMENT )
REMOVE FRONT FENDER LINER RH (See REPLACEMENT )
REMOVE FRONT BUMPER COVER (See REPLACEMENT )
REMOVE FOG LAMP UNIT LH
1. Remove the 3 bolts and fog lamp assy.

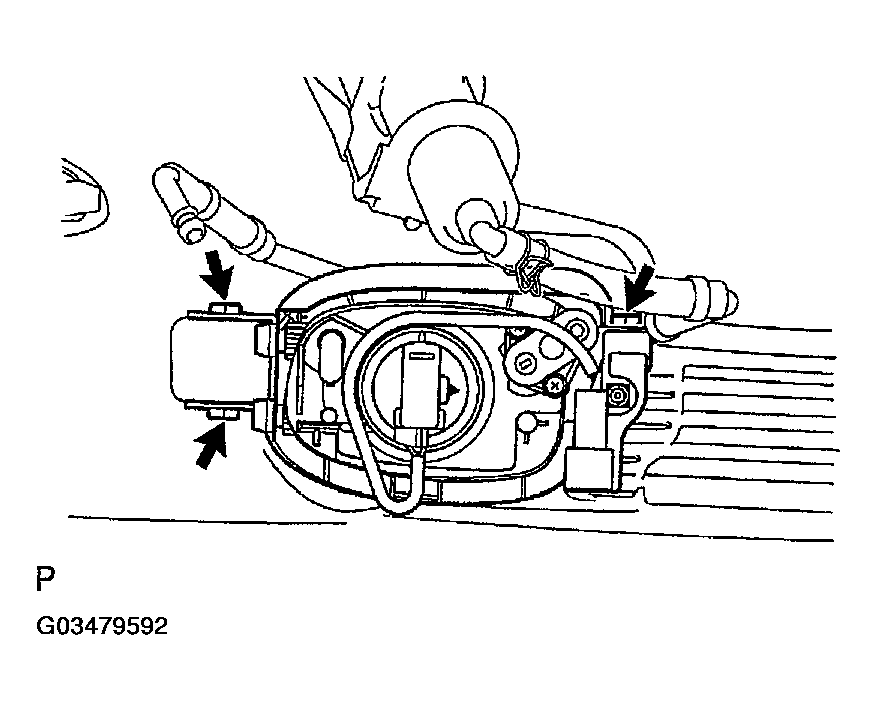

  Fig 1: Removing Fog Lamp Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw and fog lamp bracket LH.
3. Remove the bulb and fog lamp unit LH.
PUT VEHICLE THESE CONDITIONS (See ADJUSTMENT )
ADJUST FOG LIGHT AIM (See ADJUSTMENT )
