Front Marker Lamp Lens LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LIGHTING

REMOVE RADIATOR GRILLE (See REPLACEMENT )
REMOVE FRONT FENDER LINER LH (See REPLACEMENT )
REMOVE FRONT FENDER LINER RH (See REPLACEMENT )
REMOVE FRONT BUMPER COVER (See REPLACEMENT )
REMOVE FRONT MARKER LAMP ASSY LH
1. Remove the screw.
2. Remove the front marker lamp assy.
3. Remove the bulb socket and front marker lamp assy LH.

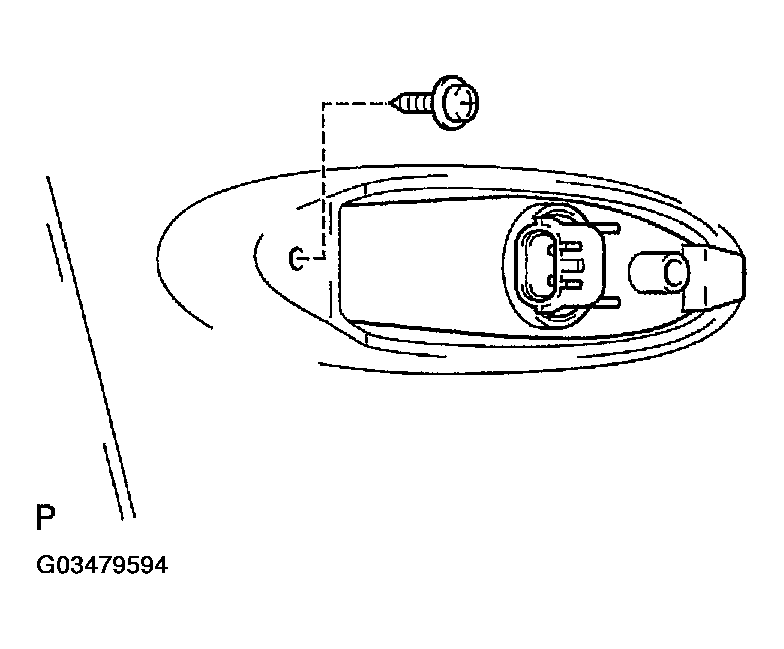

Fig 1: Removing Front Marker Lamp Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
