Sliding Roof/Removable Roof Panel Sub-ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

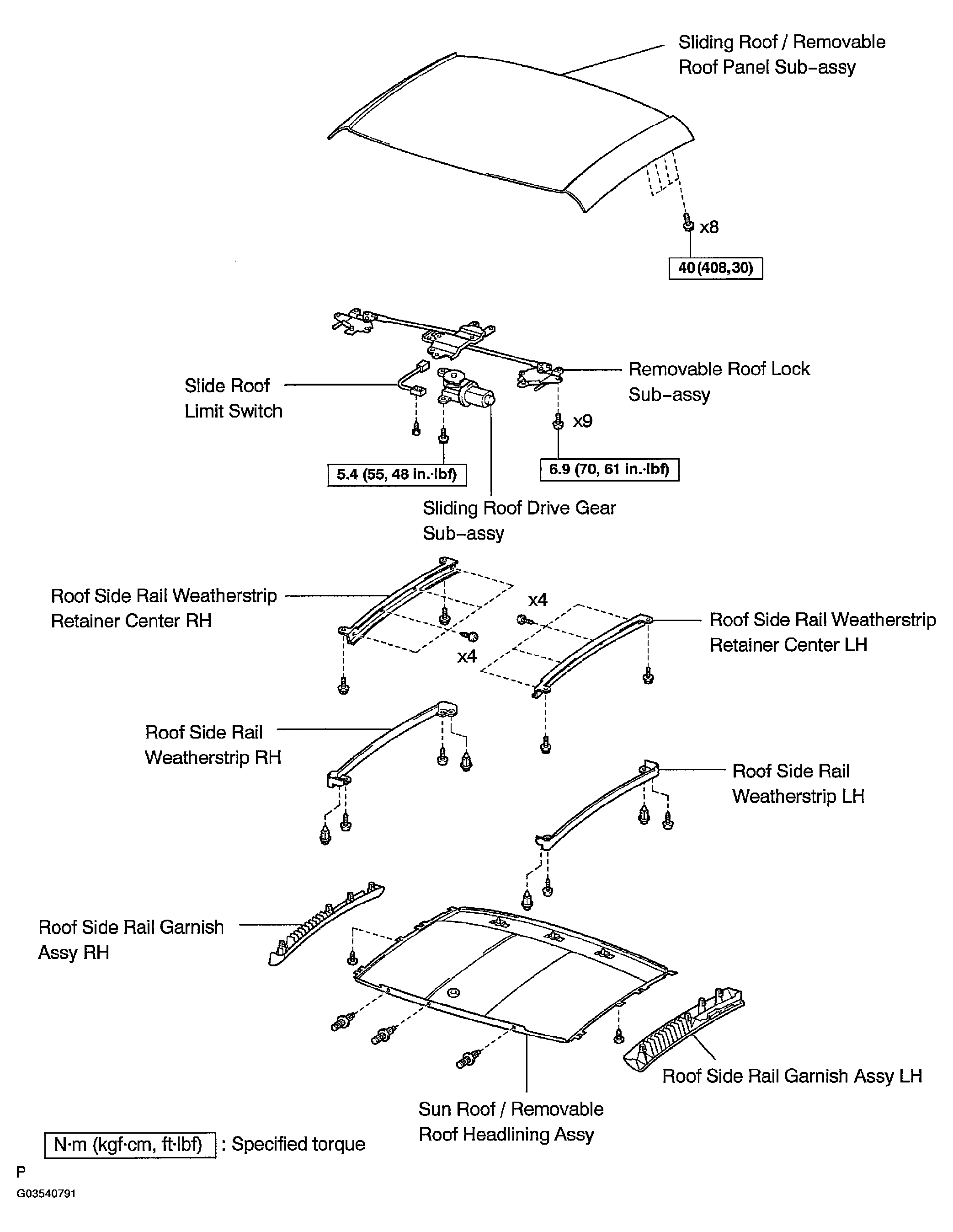

Fig 1: Exploded View Of Sliding Roof/Removable Roof Panel Sub-Assy Components
G03540791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
