Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW (MAF) METER






REMOVAL

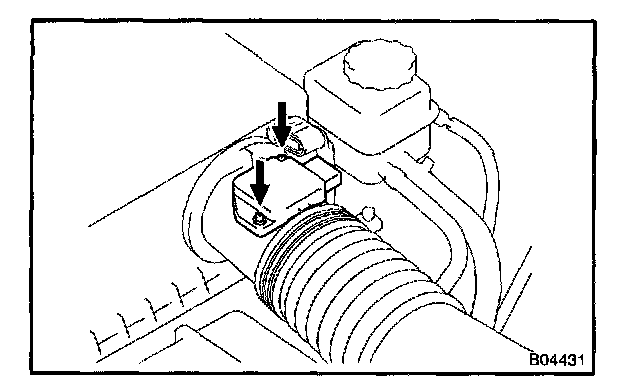

REMOVE MASS AIR FLOW METER
Remove the 2 screws, air flow meter and O-ring.

INSTALLATION
INSTALL MASS AIR FLOW METER
Install the air flow meter and a new O-ring with 2 screws.
