Door Lock Control Switch Circuit

Door Lock Control Switch Circuit

CIRCUIT DESCRIPTION
Door lock control switch circuit can be checked using DTC check.

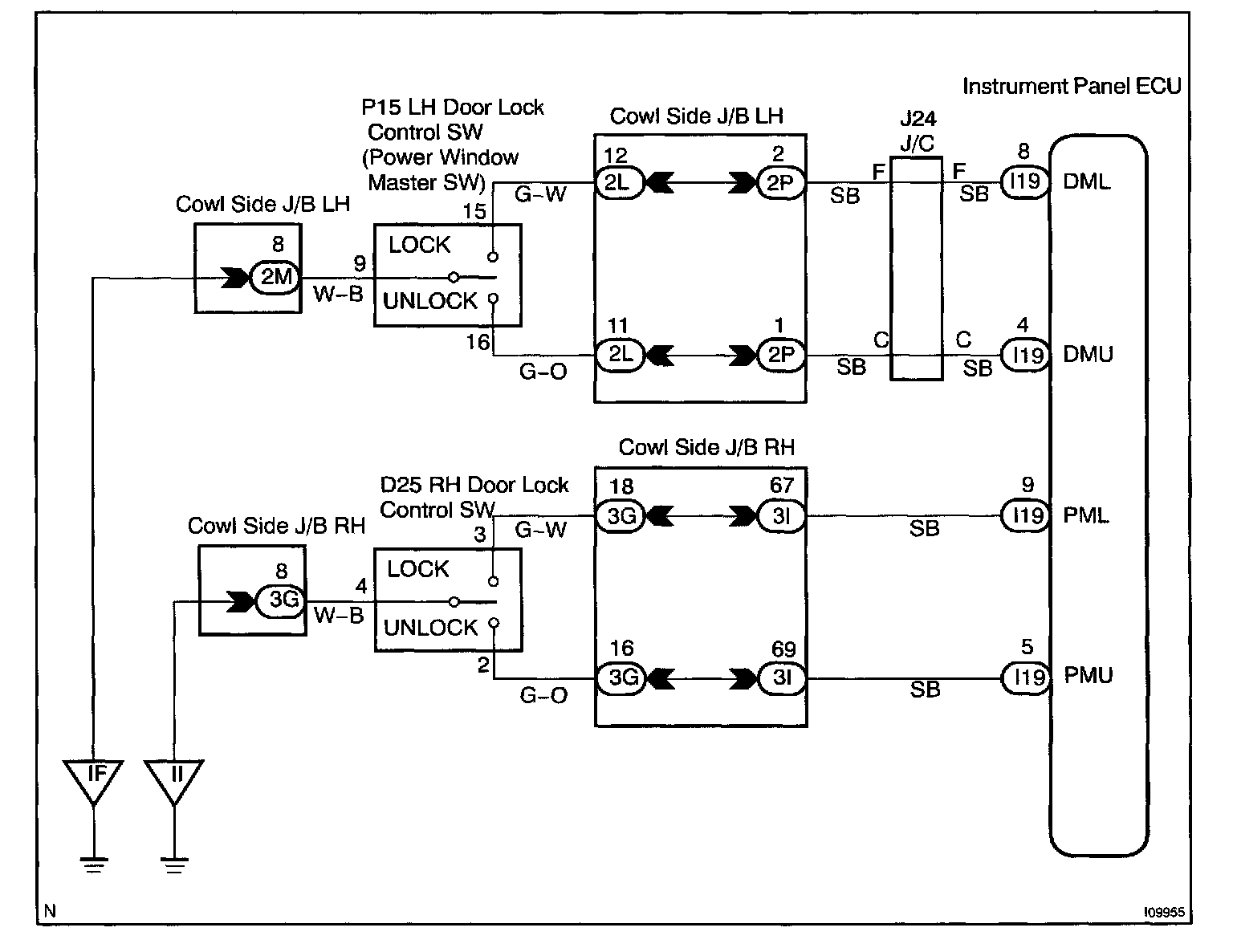

Wiring Diagram:

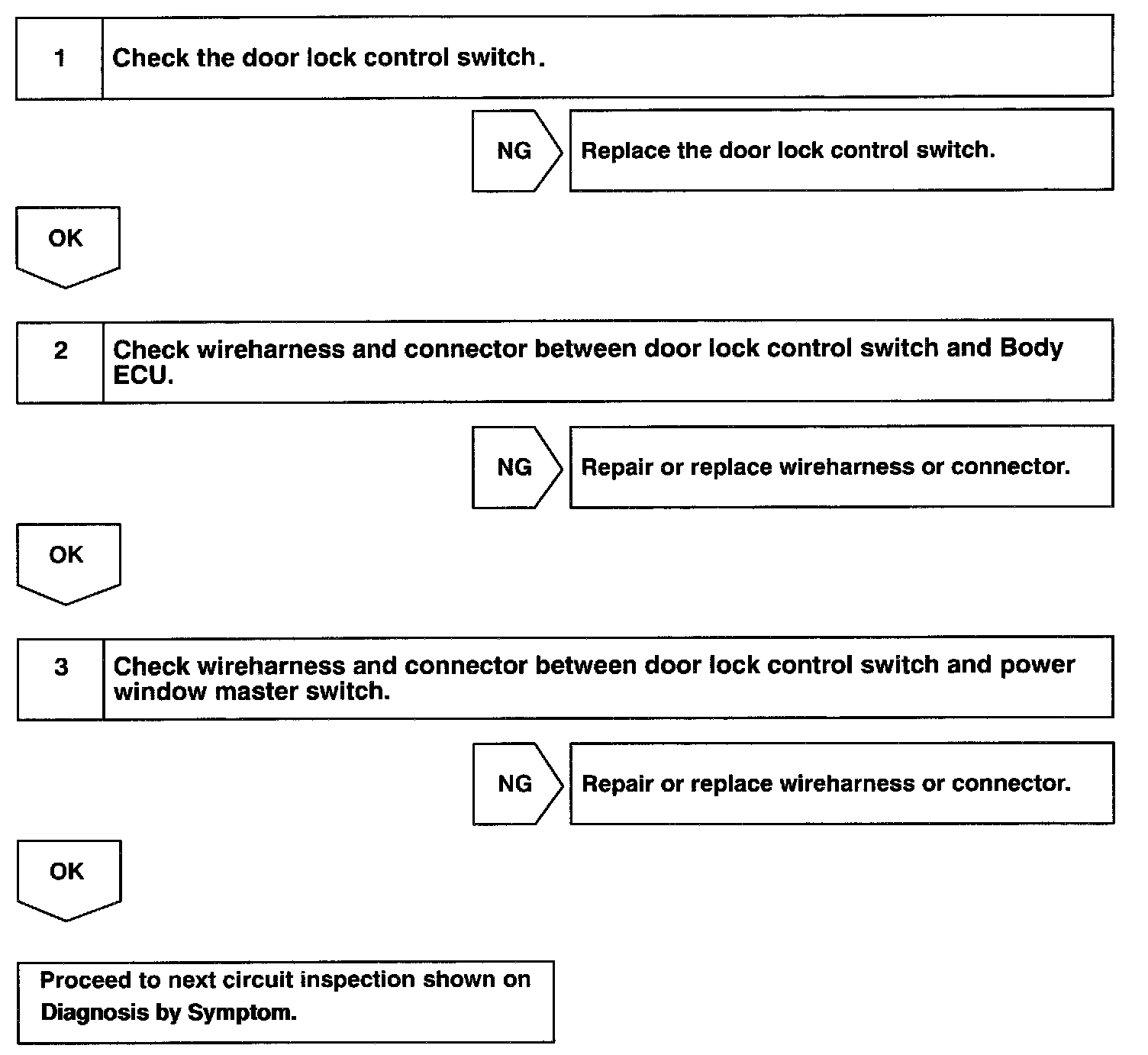

Steps 1 - 3:




INSPECTION PROCEDURE
