Power Main Relay Circuit

Power Main Relay Circuit

CIRCUIT DESCRIPTION
Power main relay will be "ON" by operating the power window switch.

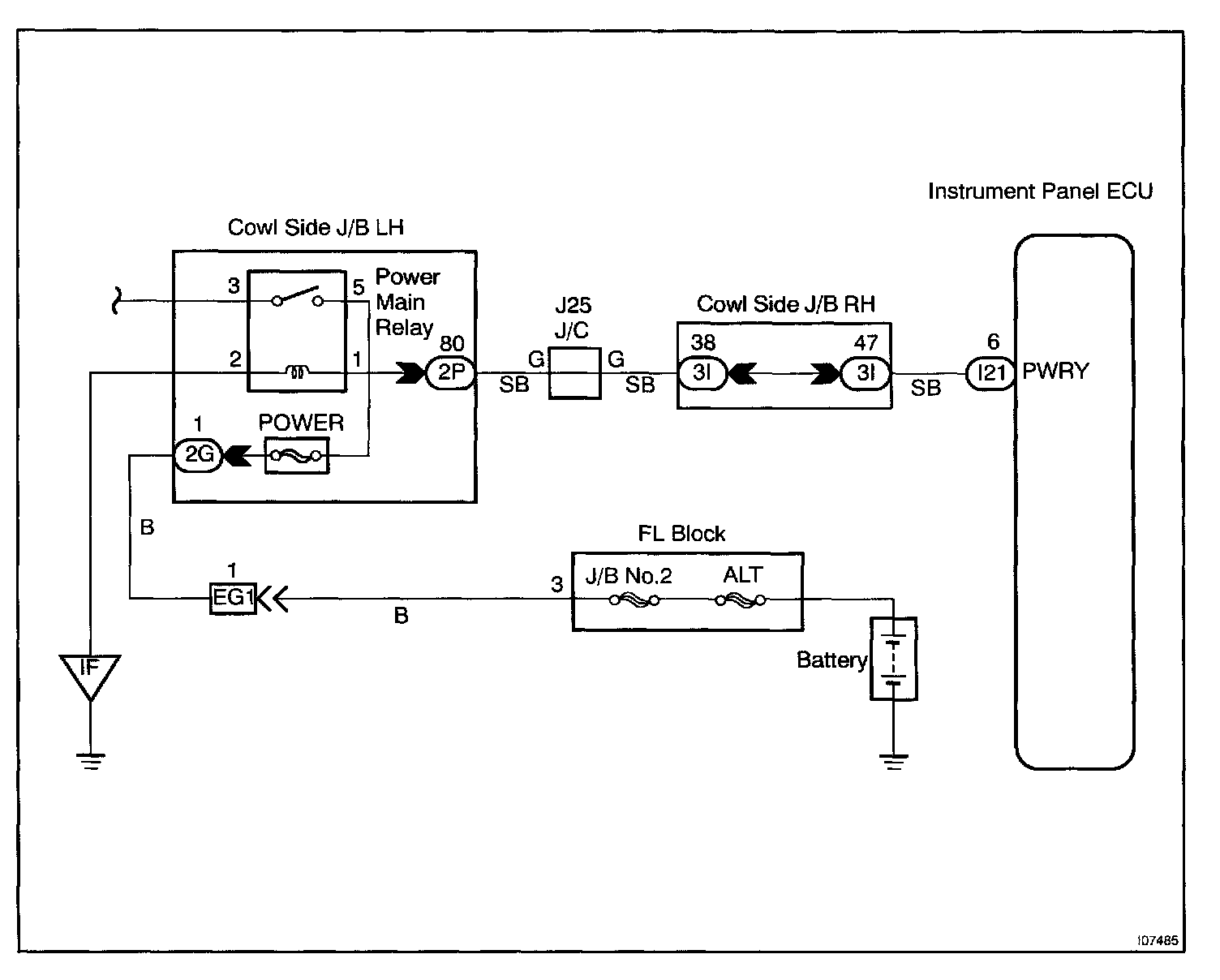

Wiring Diagram:

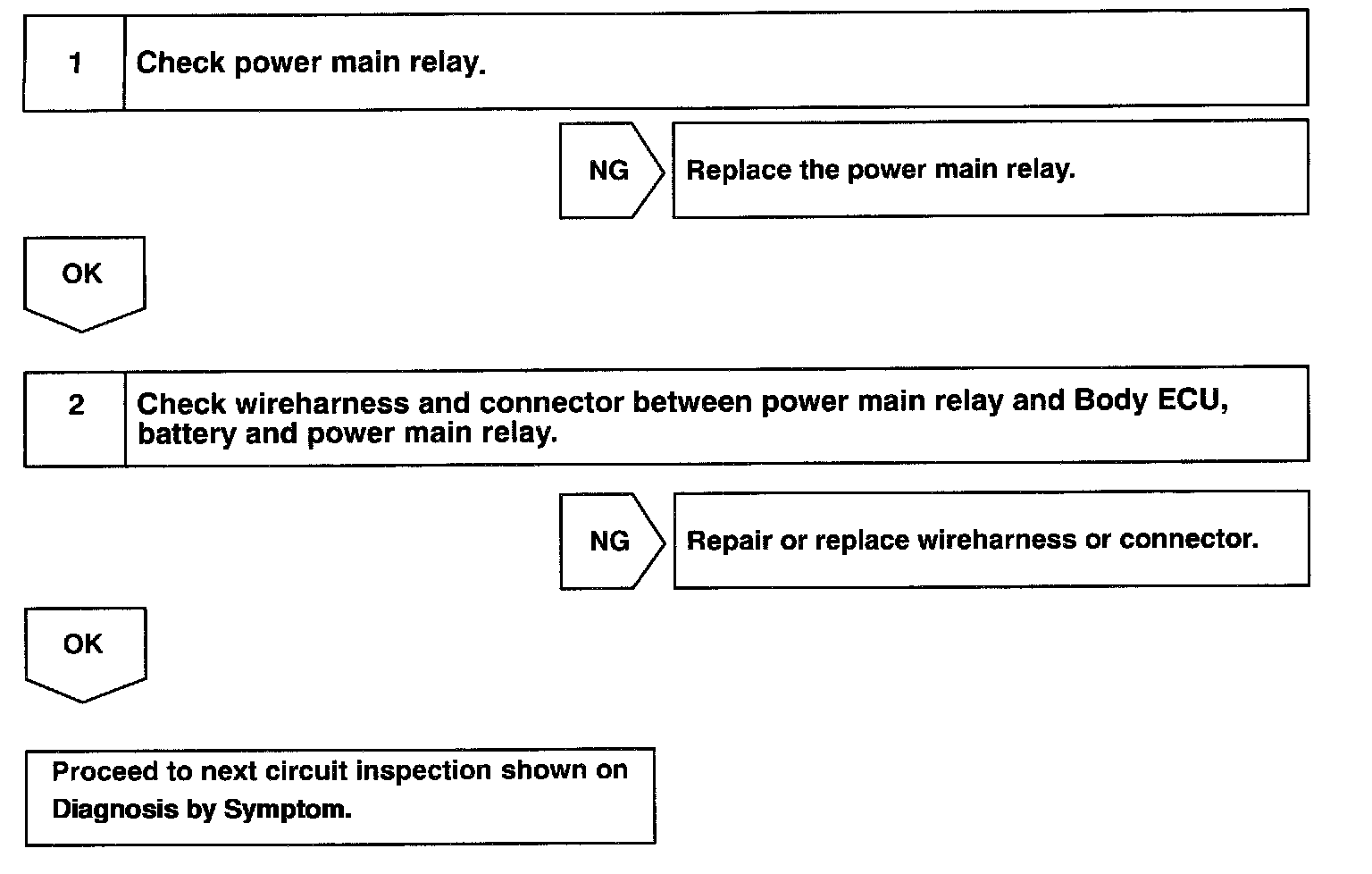

Steps 1 - 2:




INSPECTION PROCEDURE
