Stop Light Switch Circuit

Stop Light Switch Circuit

CIRCUIT DESCRIPTION
The Body ECU is detecting the condition of the stop light switch.

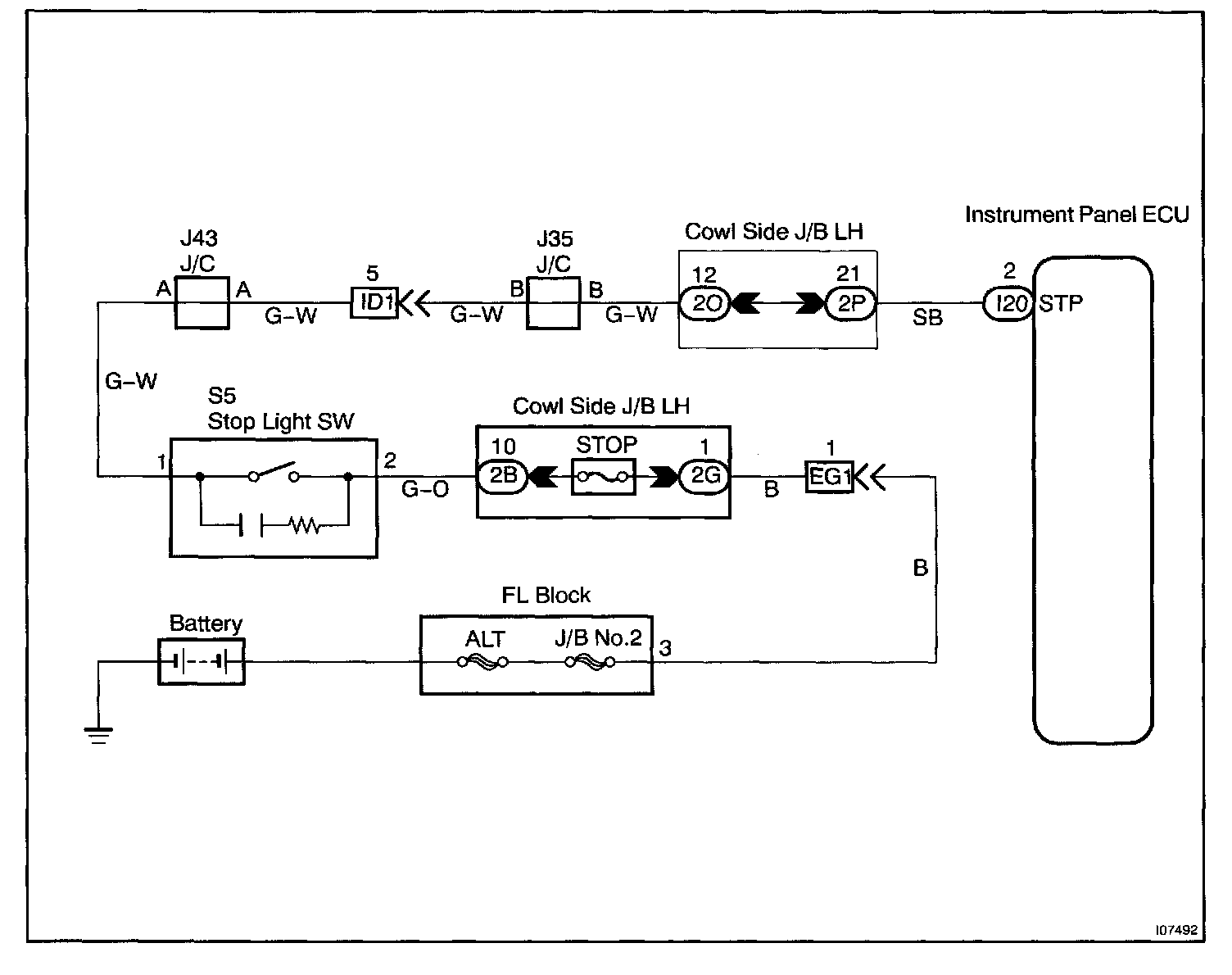

Wiring Diagram:

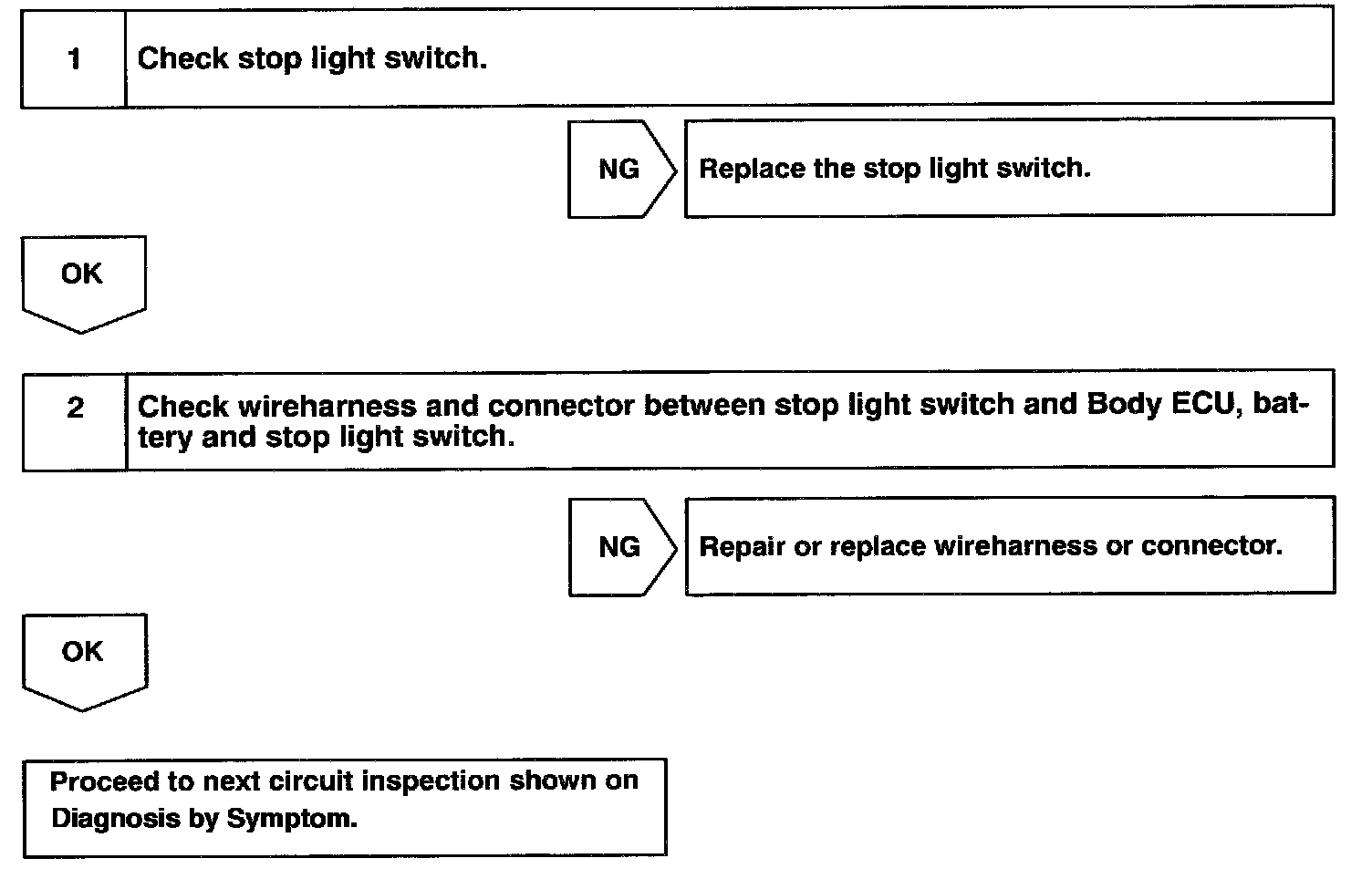

Steps 1 - 2:




INSPECTION PROCEDURE
