Circuit Description

For circuit description, see Fig 1.

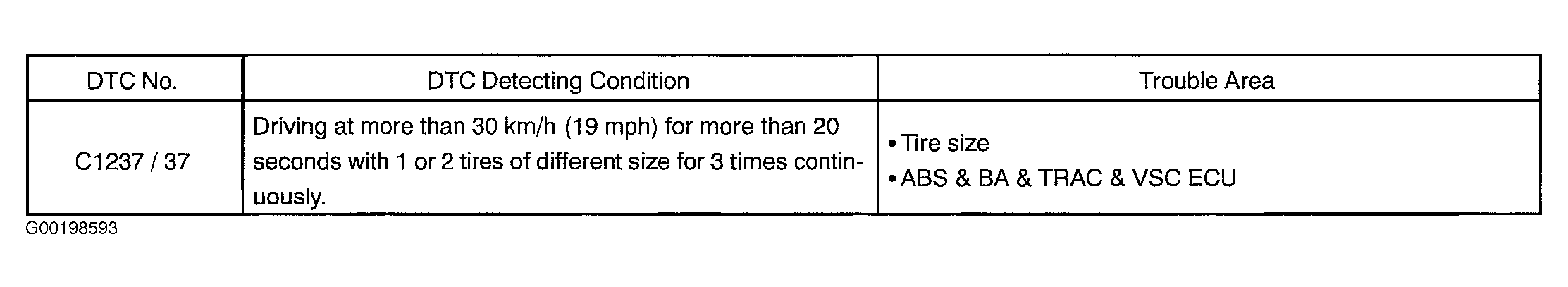

Fig 1: Circuit Description Tires Of Different Size
G00198593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
