Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 & Fig 3 .

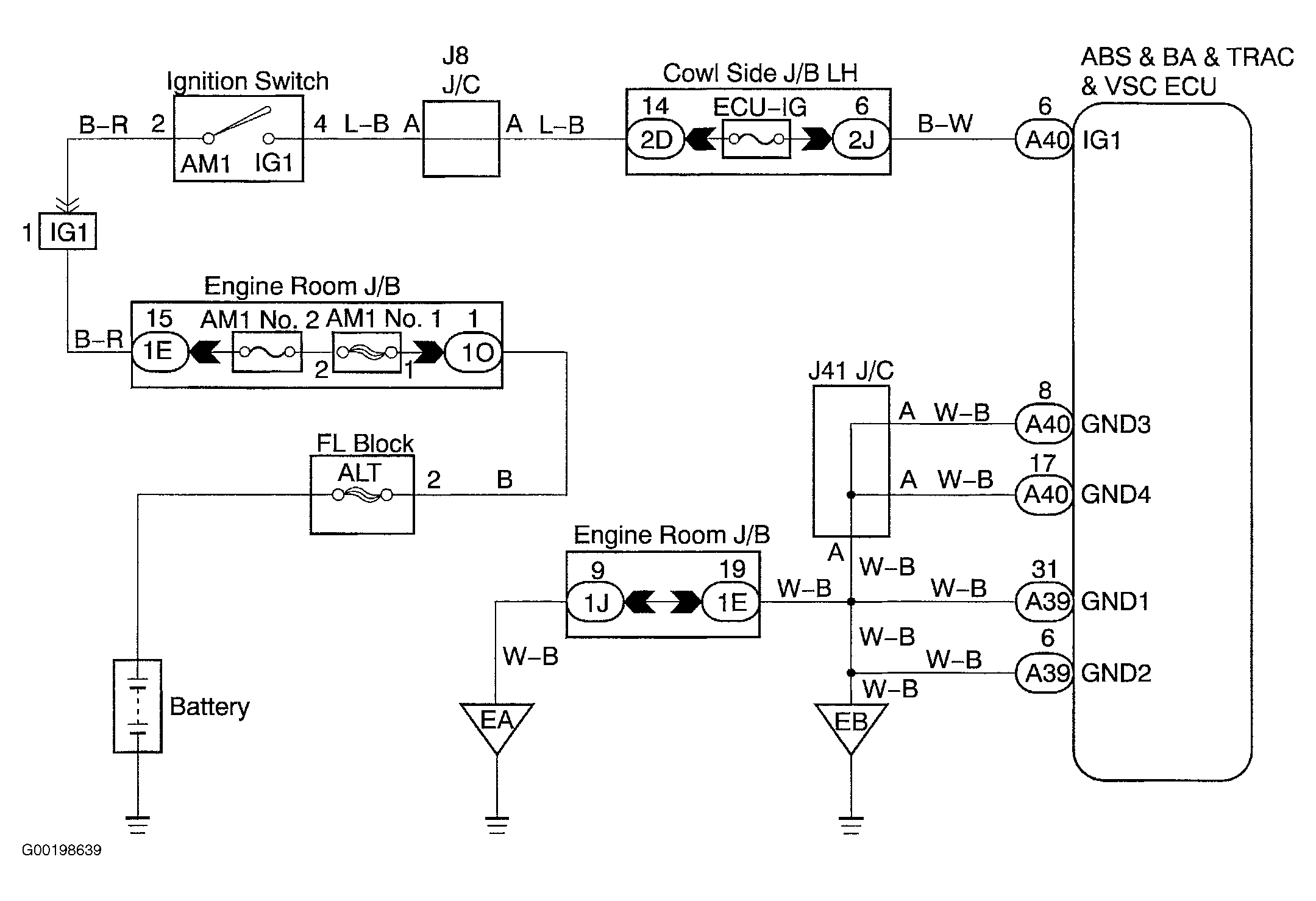

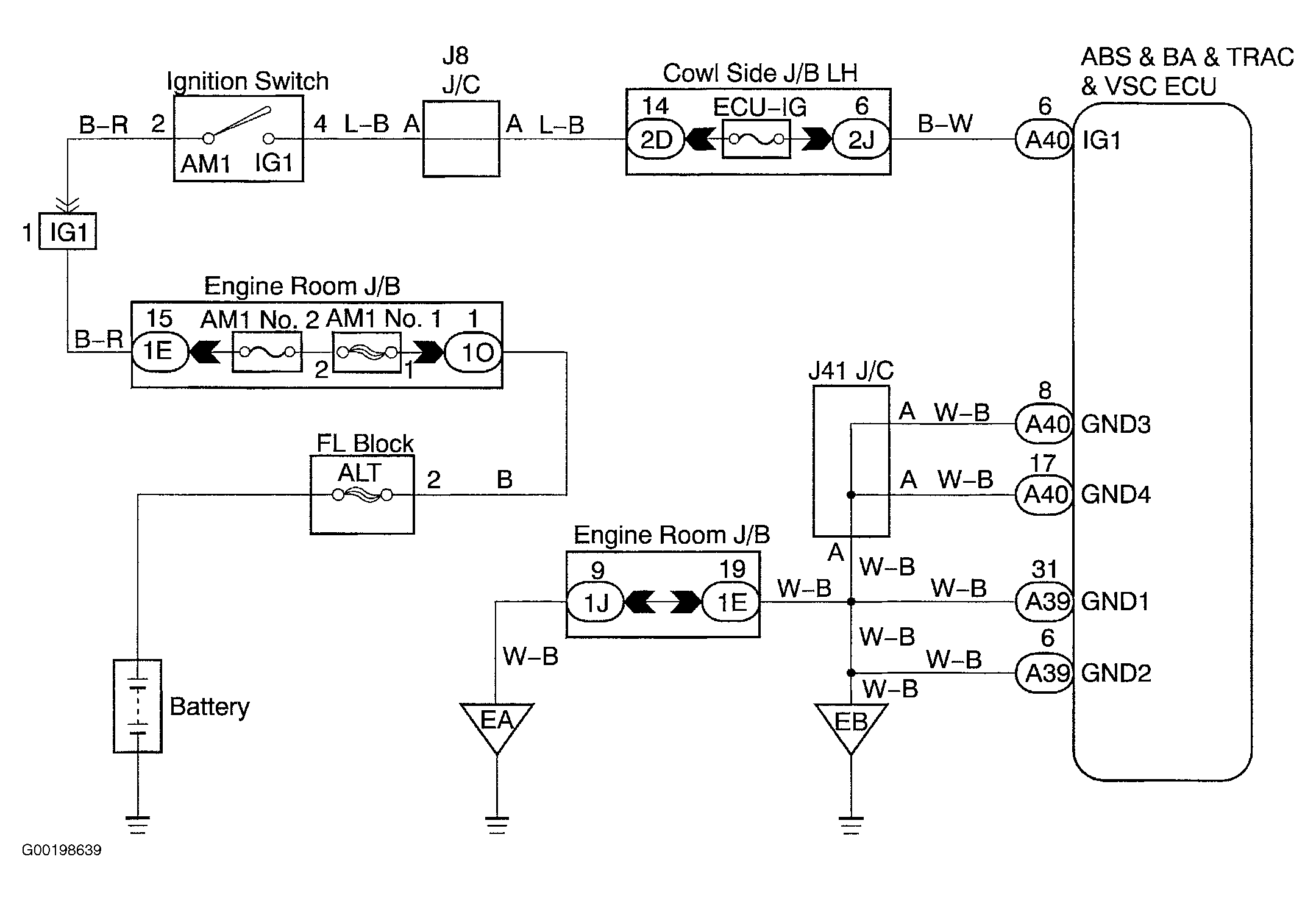

Fig 1: Wiring Diagram Power Supply Drive Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

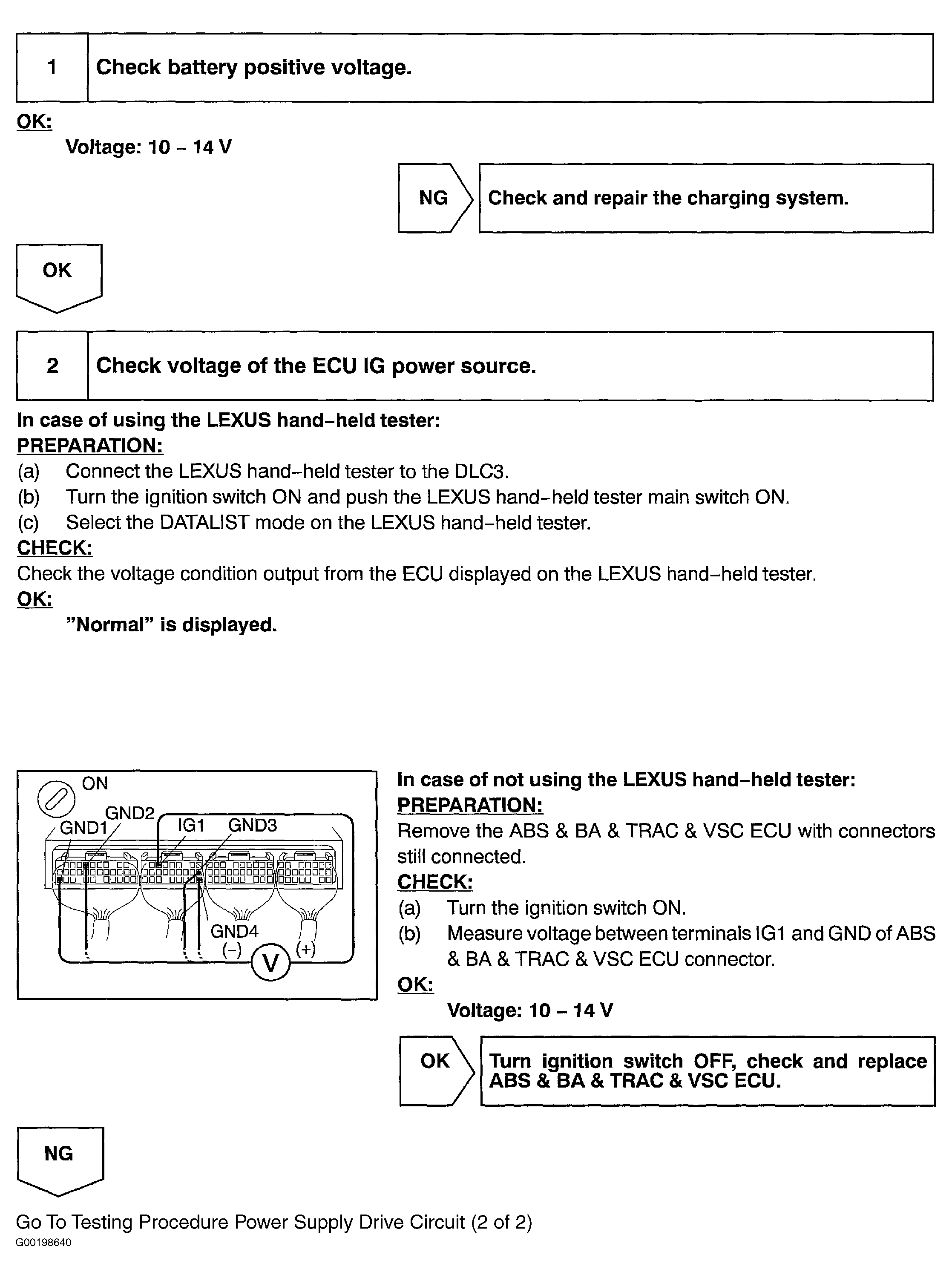

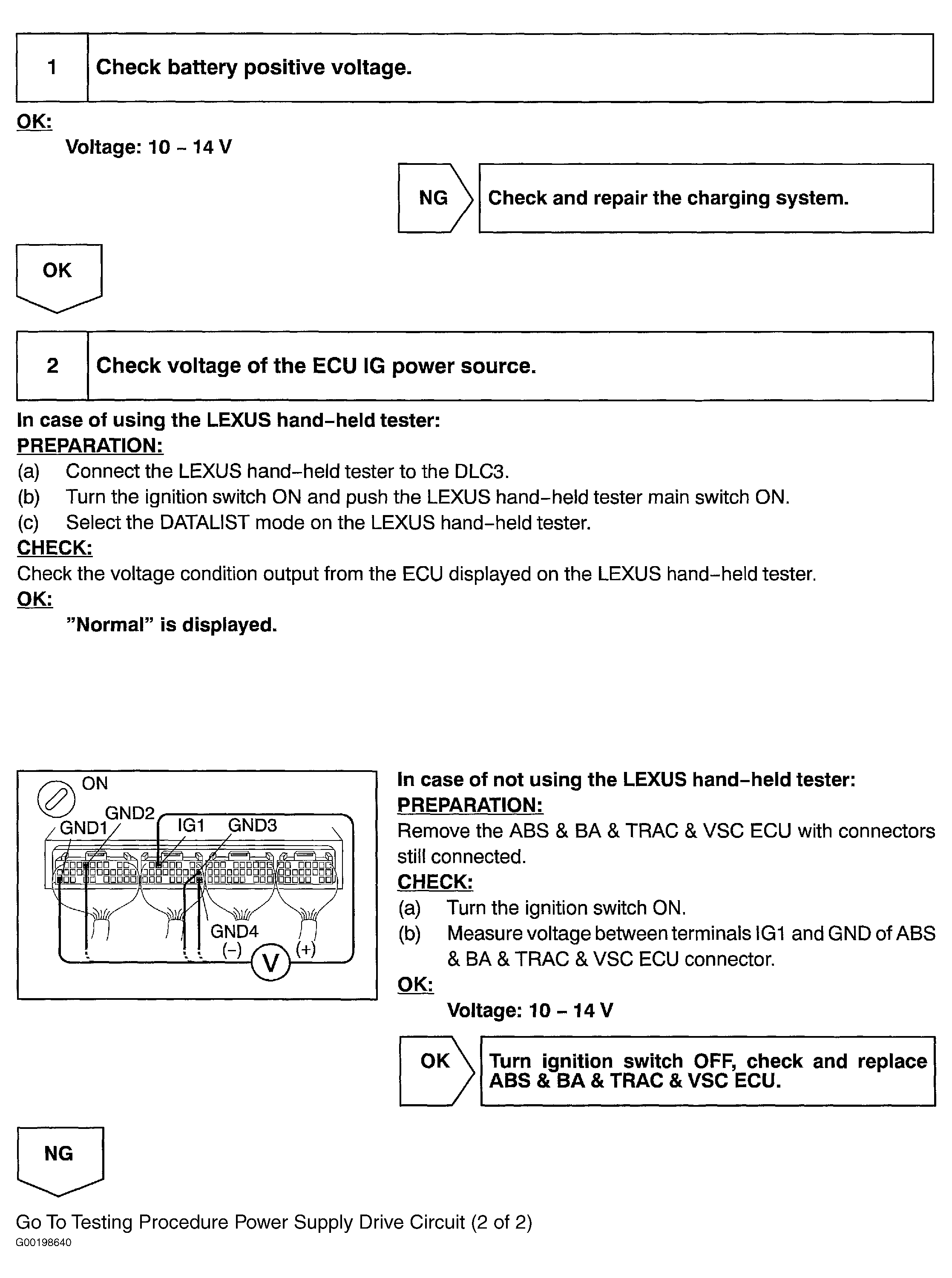

Fig 2: Testing Procedure Power Supply Drive Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

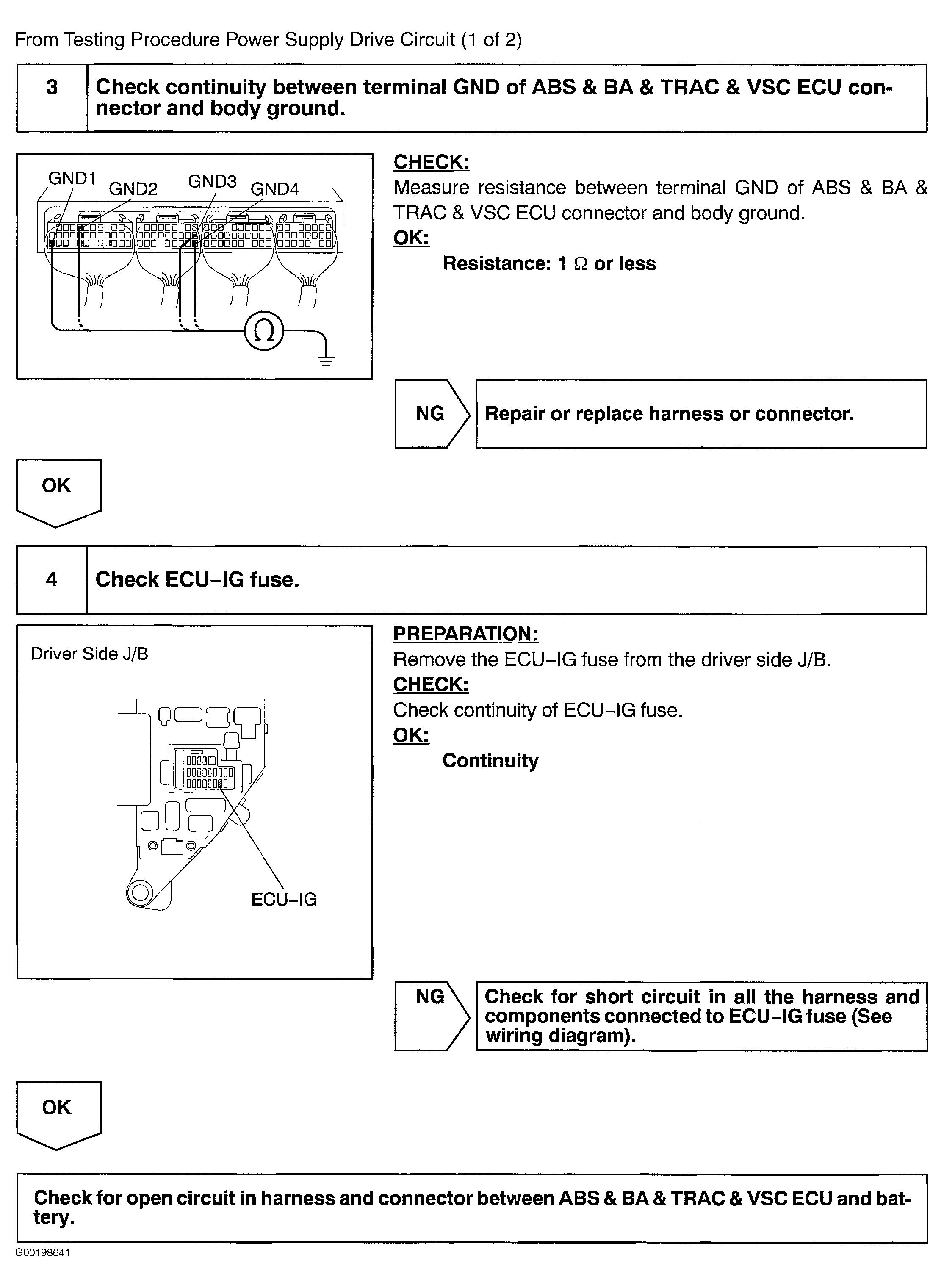

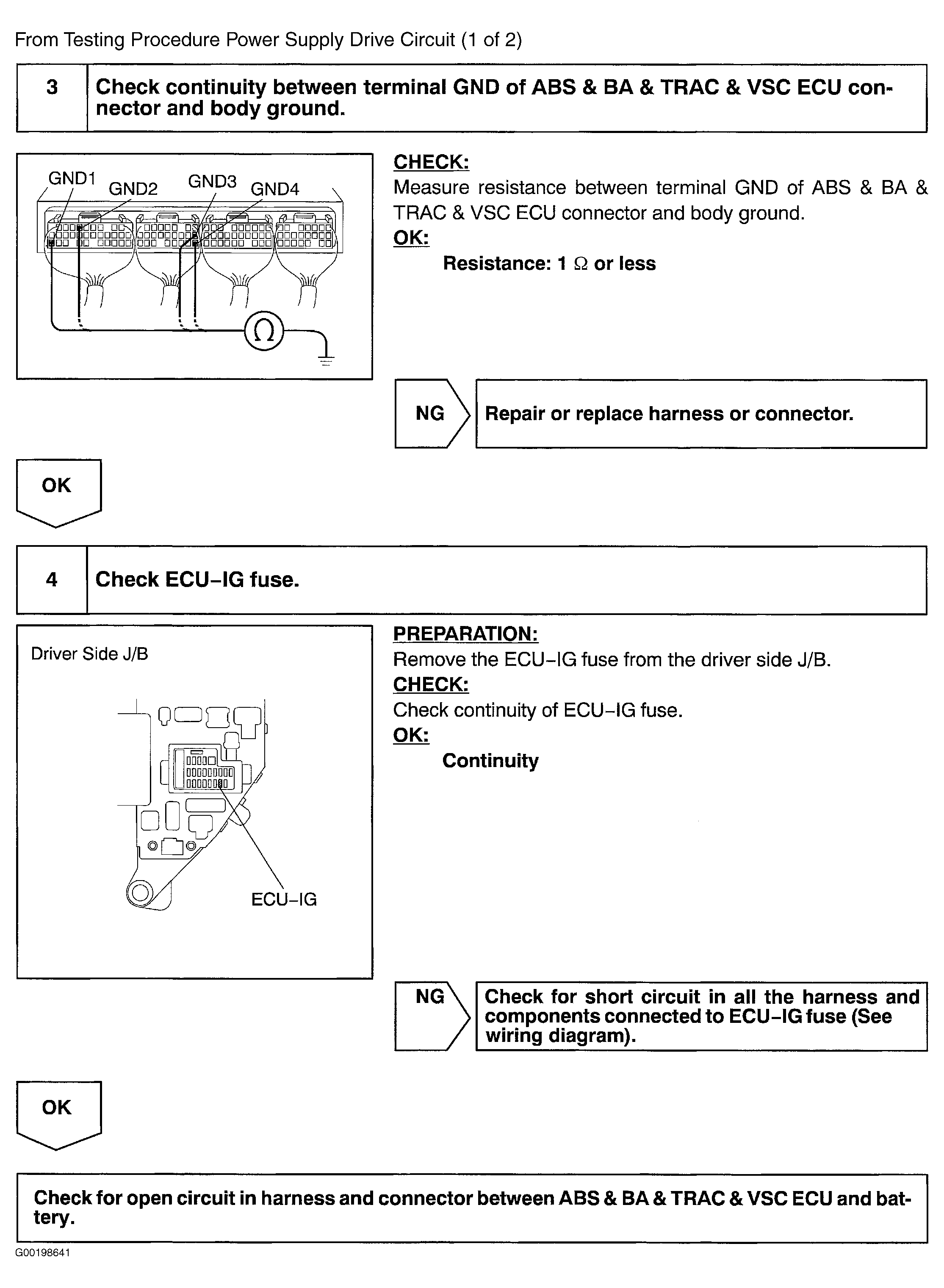

Fig 3: Testing Procedure Power Supply Drive Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
