Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 - Fig 4 .

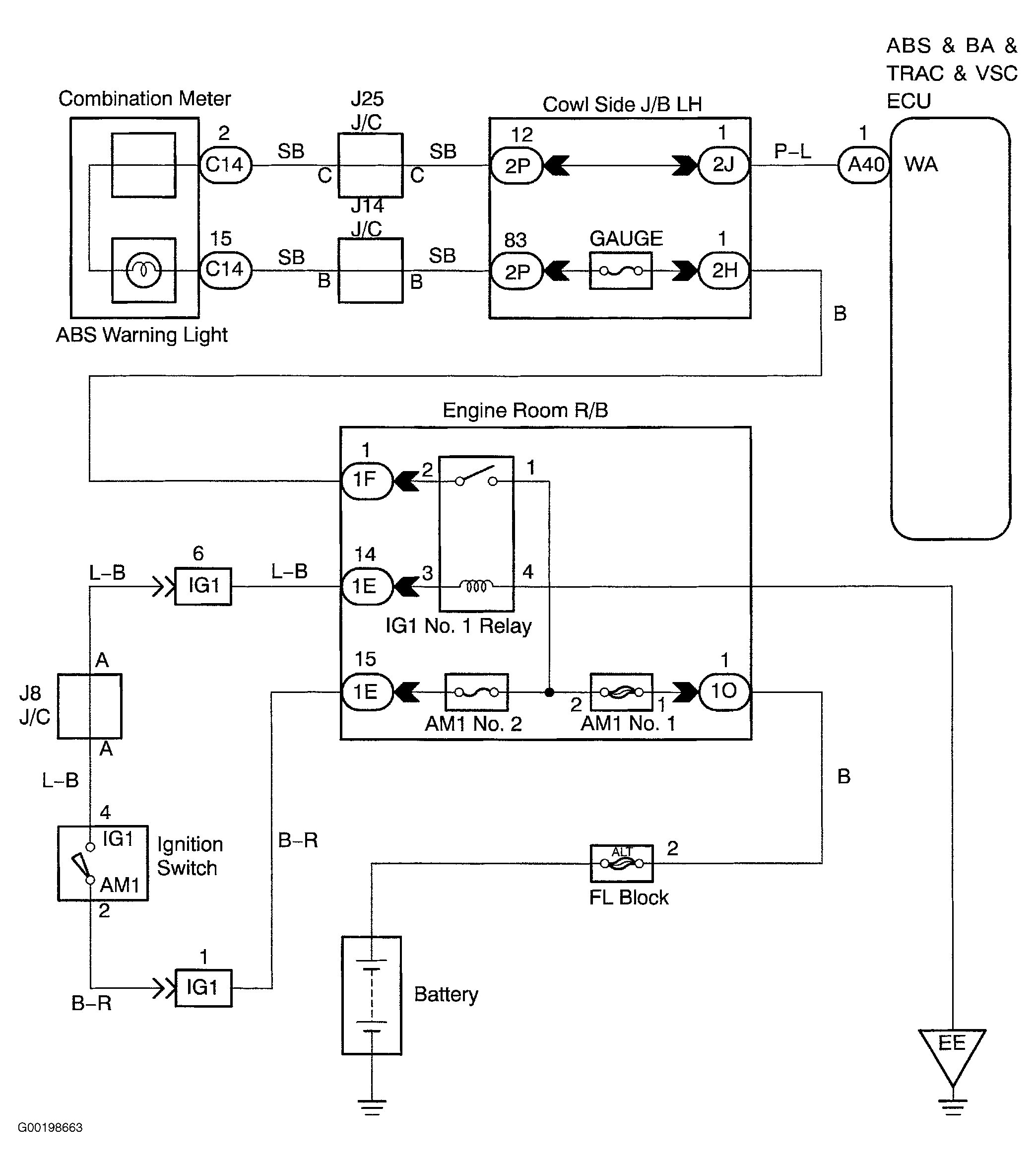

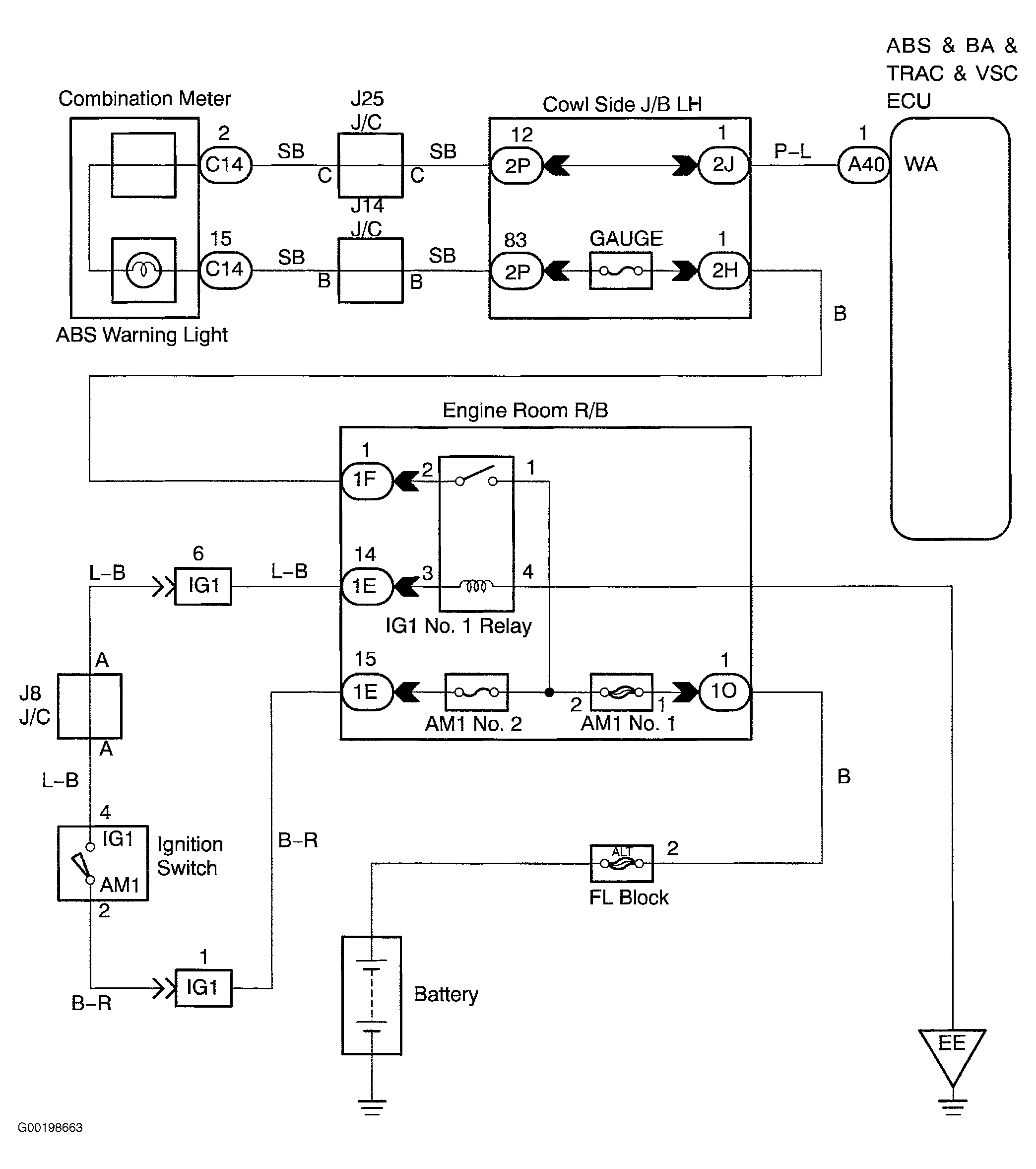

Fig 1: Wiring Diagram ABS Warning Light Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

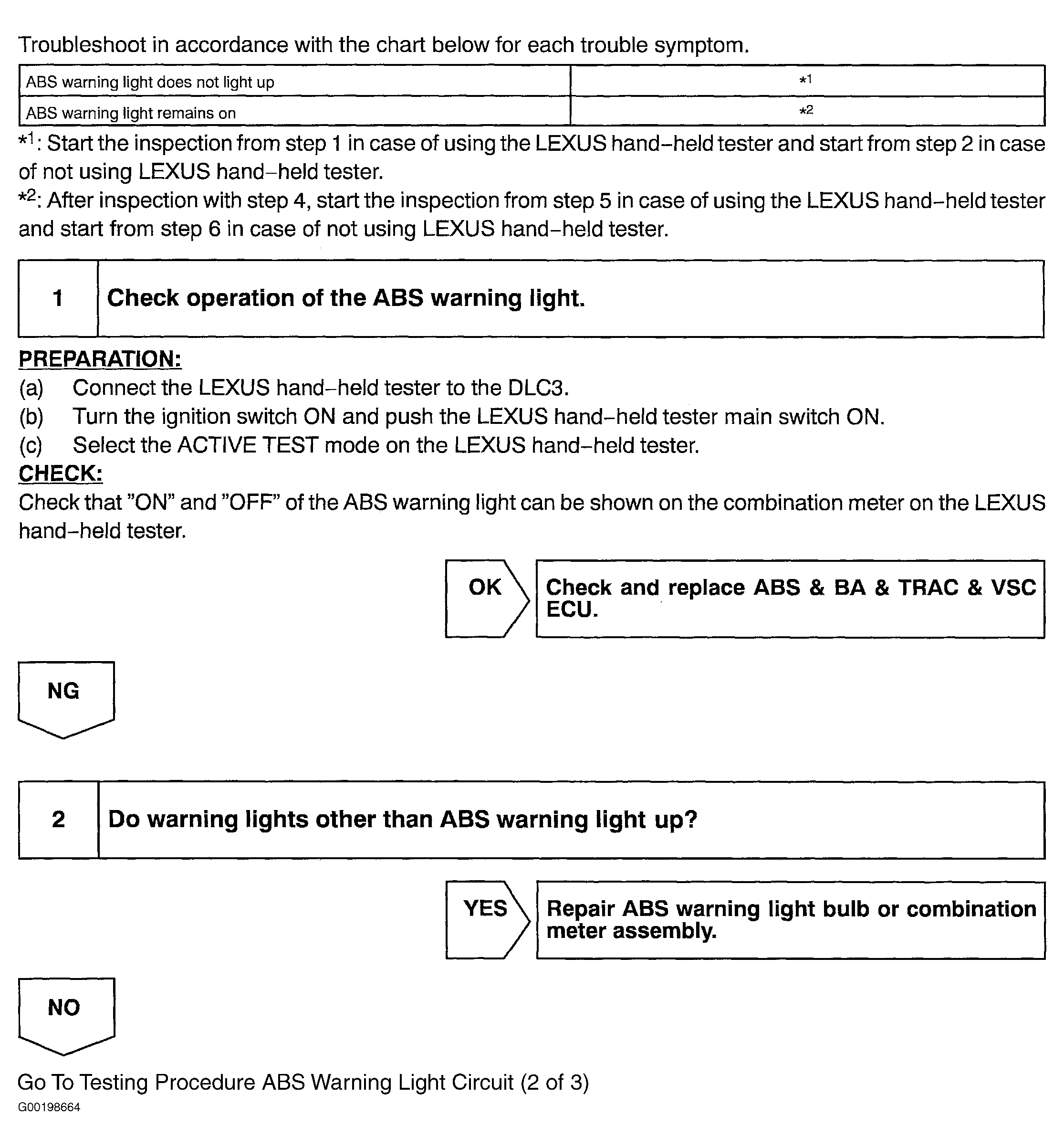

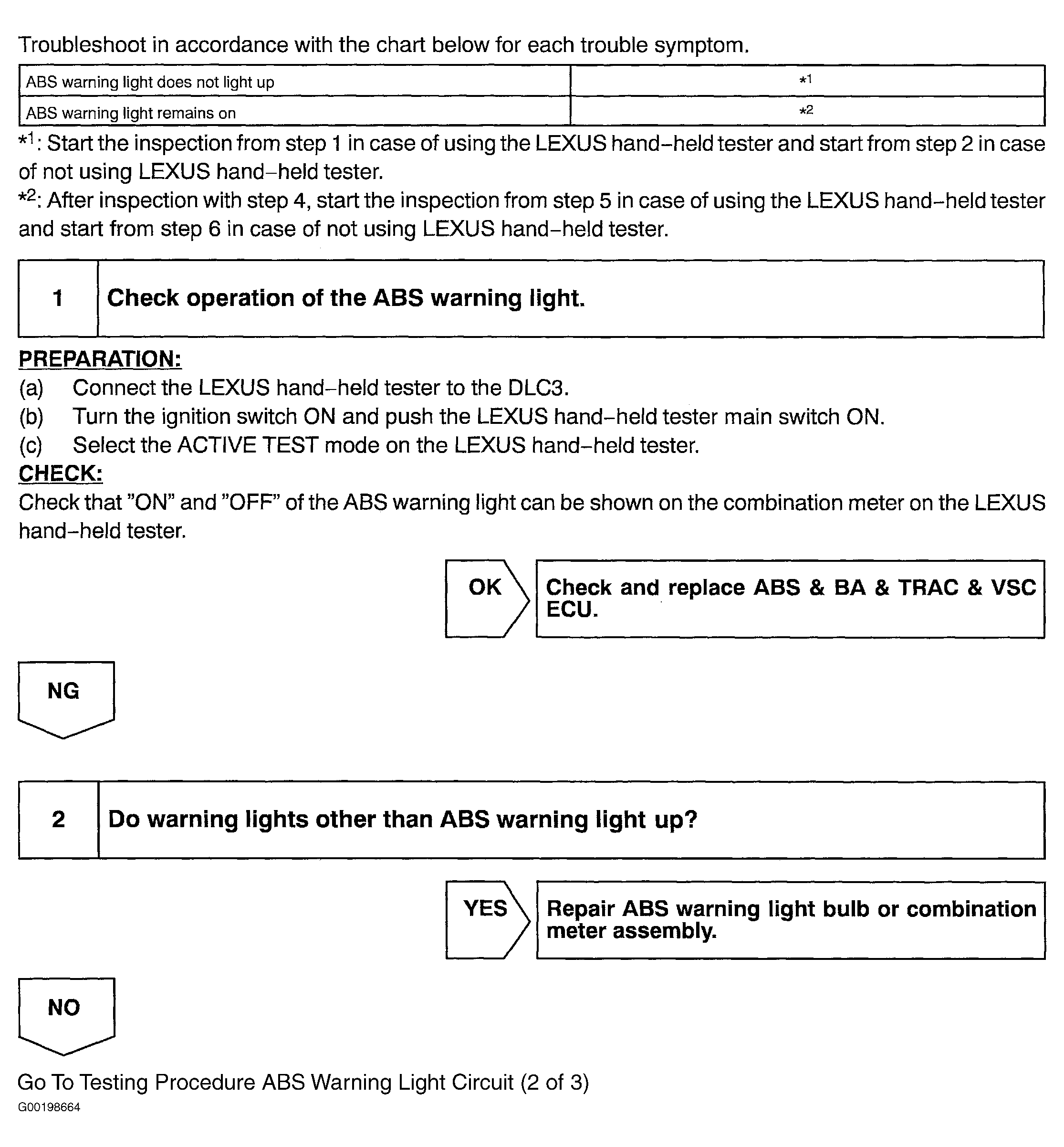

Fig 2: Testing Procedure ABS Warning Light Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

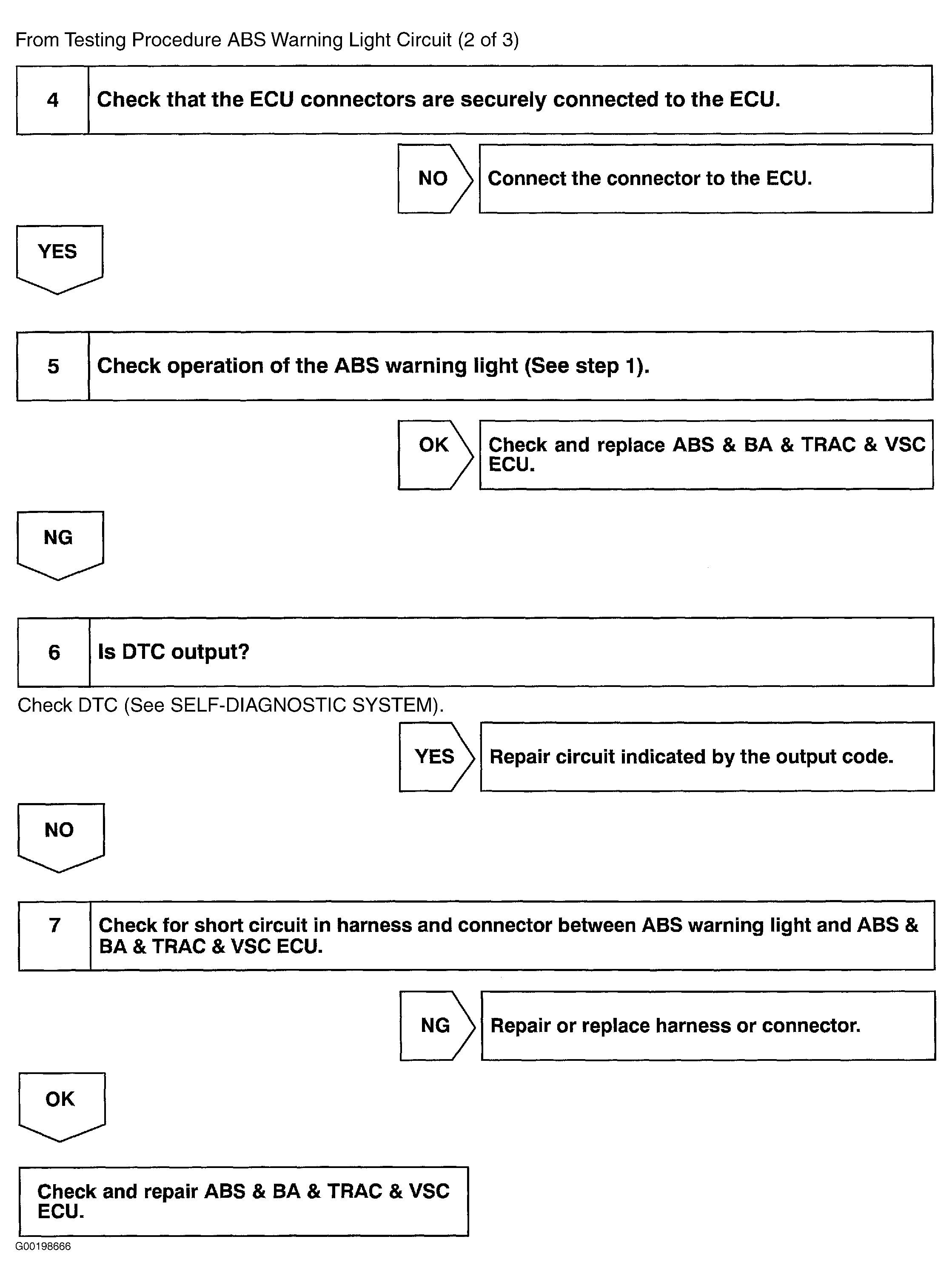

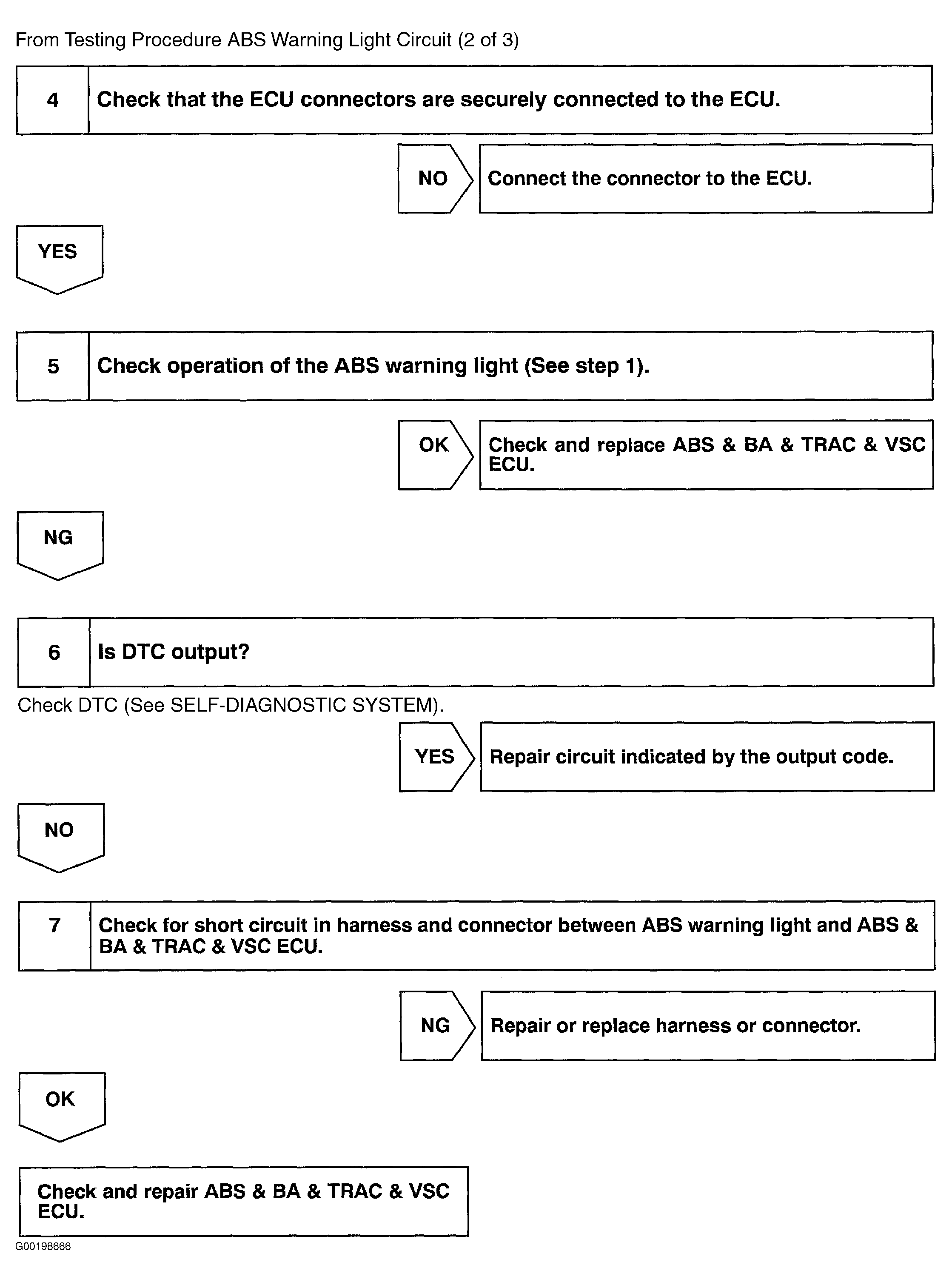

Fig 3: Testing Procedure ABS Warning Light Circuit (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

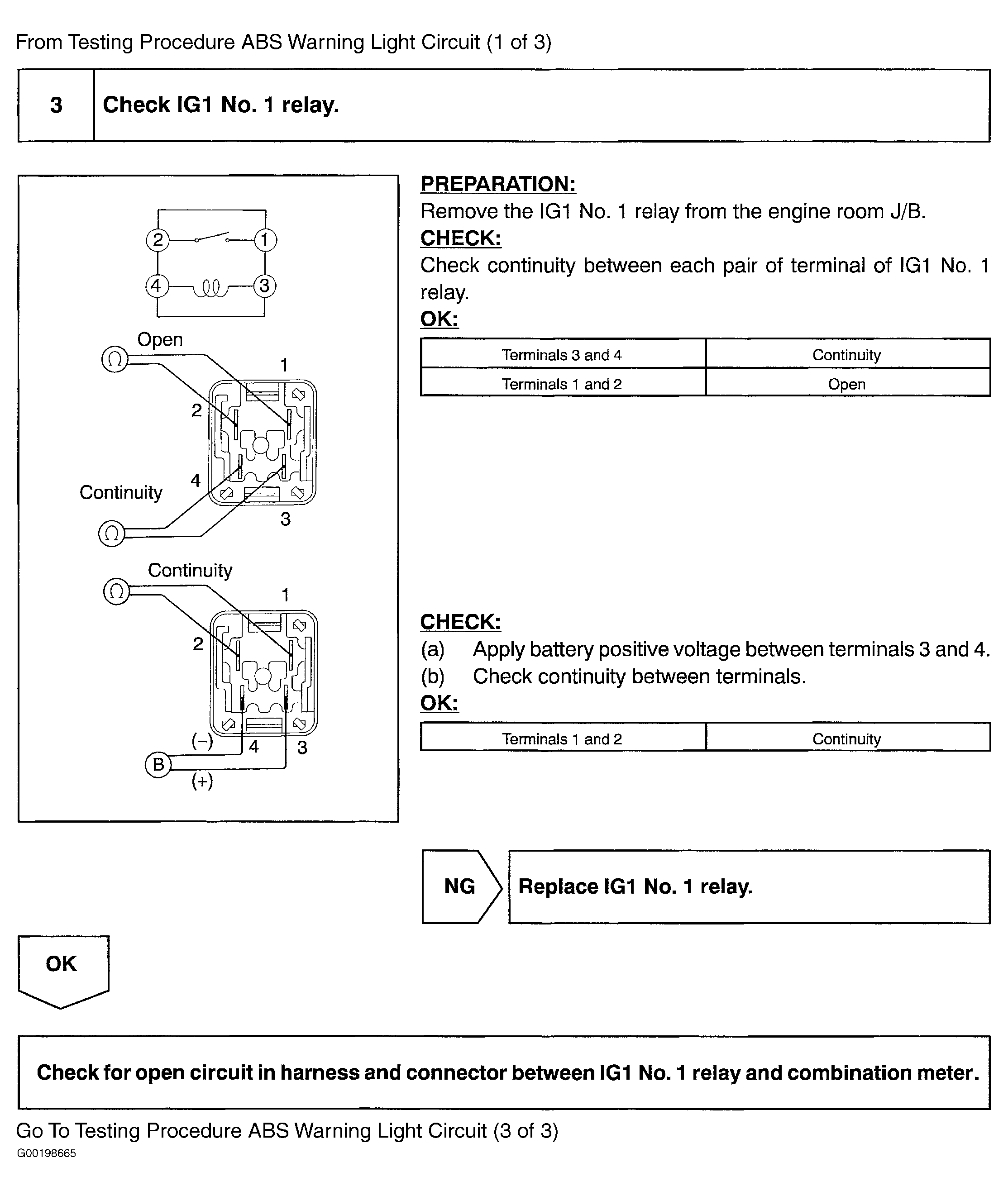

Fig 4: Testing Procedure ABS Warning Light Circuit (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
