Park/Neutral Switch Continuity Check

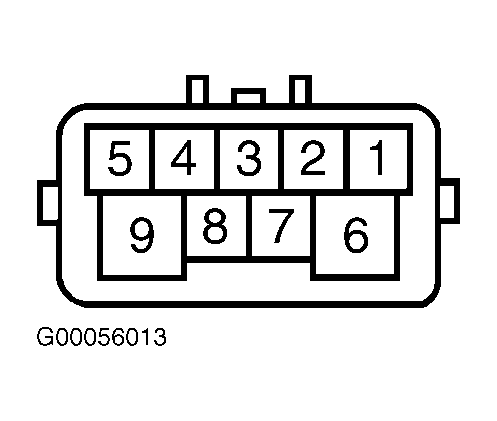

Disconnect electrical connector from park/neutral switch at transmission or transaxle. Using ohmmeter, check for continuity at specified terminals with gearshift lever in proper positions. See Fig 1 or Fig 2 . See PARK/NEUTRAL SWITCH SPECIFICATIONS table. If continuity is not as specified, replace switch.
PARK/NEUTRAL SWITCH SPECIFICATIONS
| Application & Gearshift Lever Position | Continuity Between Terminals No. | |
|---|---|---|
| Avalon, Camry, Camry Solara, Corolla & Sienna | ||
| Park | 5 & 6, 2 & 7 | |
| Reverse | 2 & 8 | |
| Neutral | 5 & 6, 2 & 9 | |
| Drive | 2 & 10 | |
| 2 | 2 & 3 | |
| Low | 2 & 4 | |
| Celica, Highlander, Land Cruiser, LX 470, RAV4, Sequoia & 4Runner | ||
| Park | 6 & 9, 3 & 1 | |
| Reverse | 3 & 2 | |
| Neutral | 6 & 9, 3 & 5 | |
| Drive | 3 & 7 | |
| 2 | 3 & 4 | |
| Low | 3 & 8 | |
| ECHO | ||
| Park | 3 & 5, 6 & 9 | |
| Reverse | 3 & 4 | |
| Neutral | 1 & 3, 6 & 9 | |
| Drive | 3 & 8 | |
| 2 | 2 & 3 | |
| Low | 3 & 7 | |
| Tacoma | ||
| Park | 5 & 6, 4 & 7 | |
| Reverse | 4 & 8 | |
| Neutral | 5 & 6, 4 & 10 | |
| Drive | 4 & 9 | |
| 2 | 4 & 2 | |
| Low | 4 & 3 | |
| Tundra | ||
| Park | 4 & 7, 5 & 6 | |
| Reverse | 4 & 8 | |
| Neutral | 4 & 10, 5 & 6 | |
| Drive | 4 & 9 | |
| 2 | 4 & 2 | |
| Low | 4 & 3 | |
