Circuit Description

WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

The power main relay will be ON by operating the power window switch. See Fig 1.

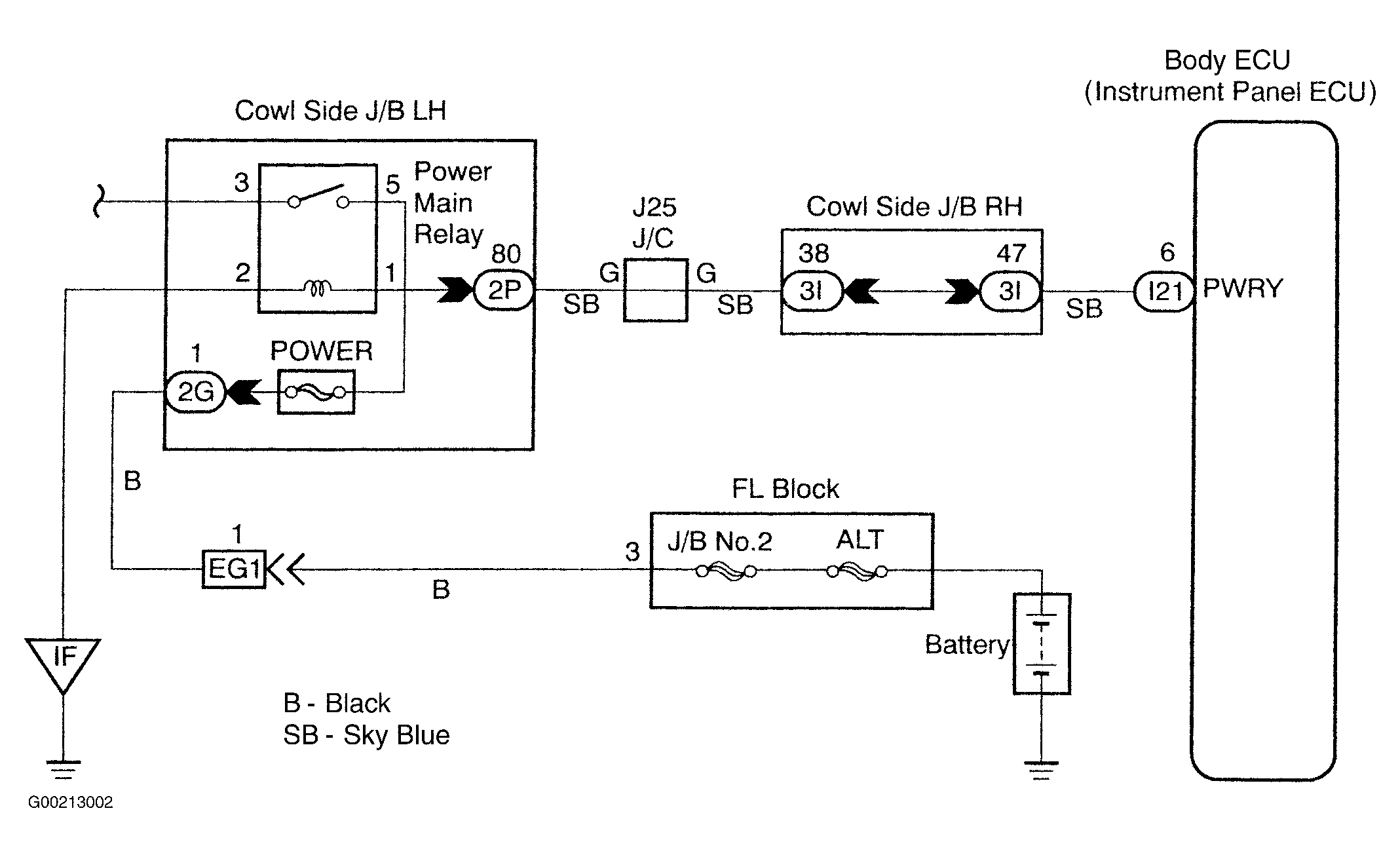

Fig 1: Identifying Power Main Relay Circuit
G00213002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
