Circuit Description
WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

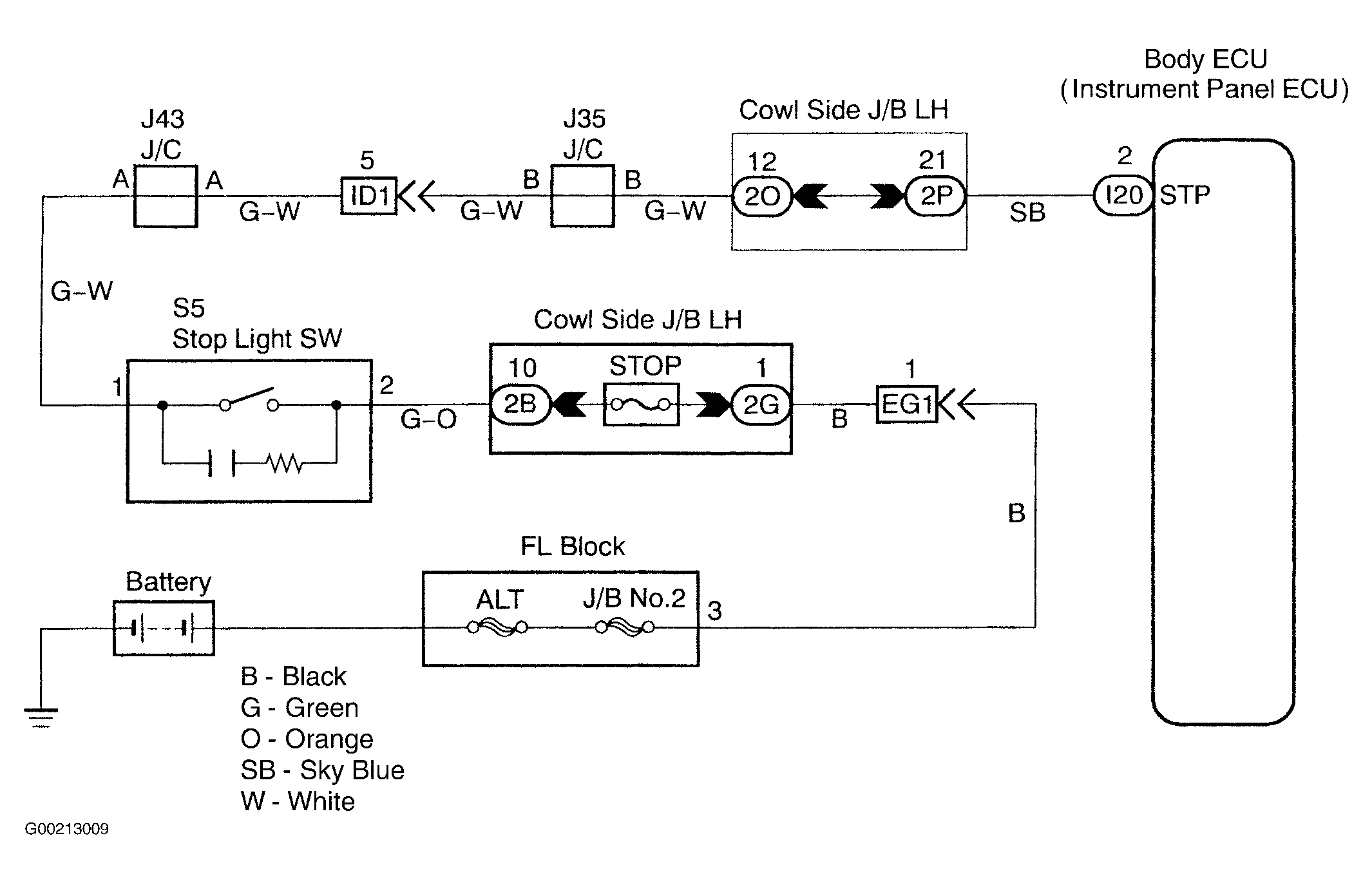

The body ECU is detecting the condition of the stop light switch. See Fig 1.
The body ECU is detecting the condition of the stop light switch. See Fig 1.
