Vehicle Lift And Support Locations

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

For lifting and support locations, see Fig 1.

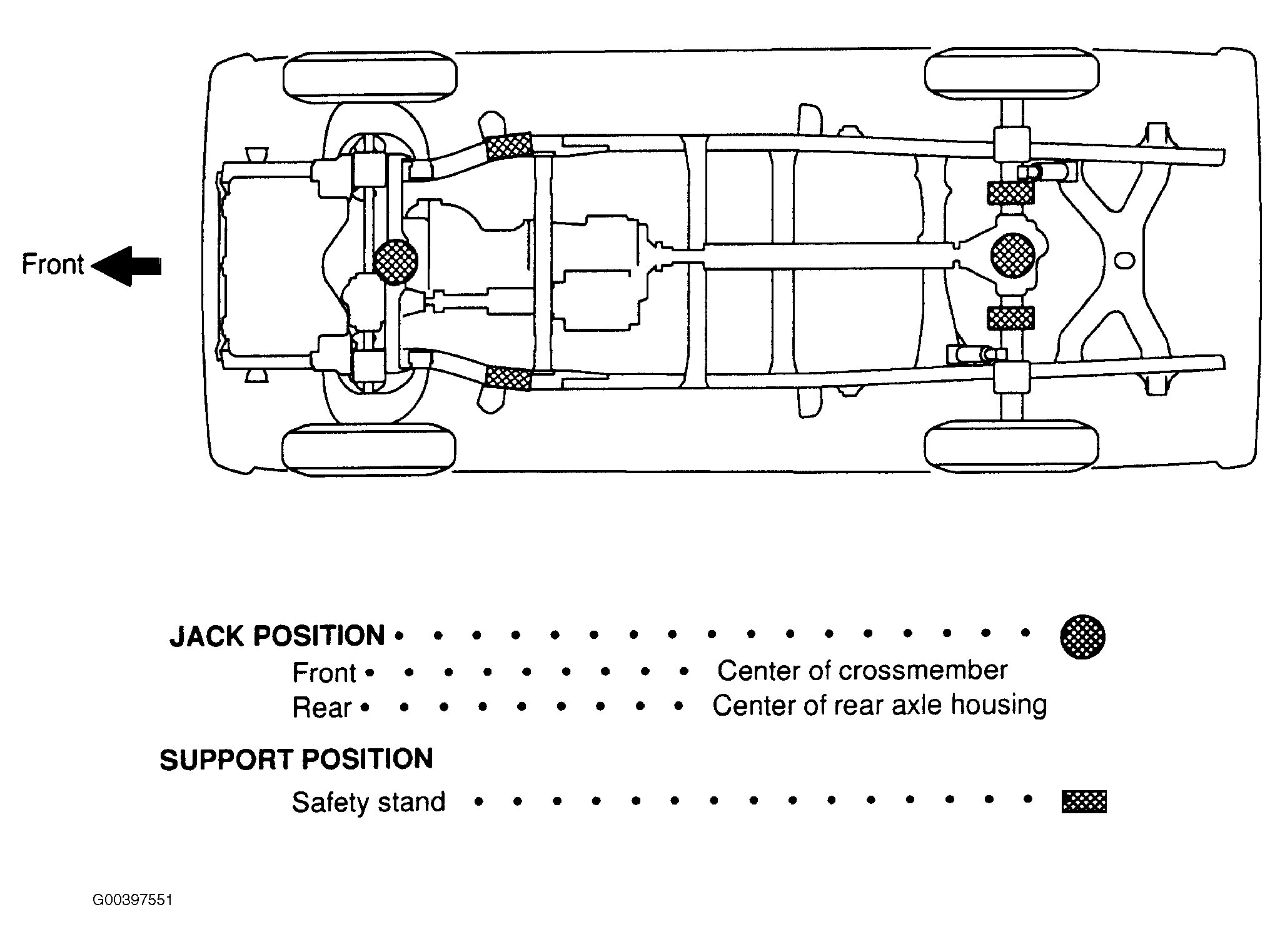

Fig 1: Identifying Vehicle Lifting & Support Locations
G00397551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
