Front Speed Sensor: Removal

  1. DISCONNECT SPEED SENSOR CONNECTOR
    1. Remove the front wheel and front fender liner.
    2. Disconnect the speed sensor connector.

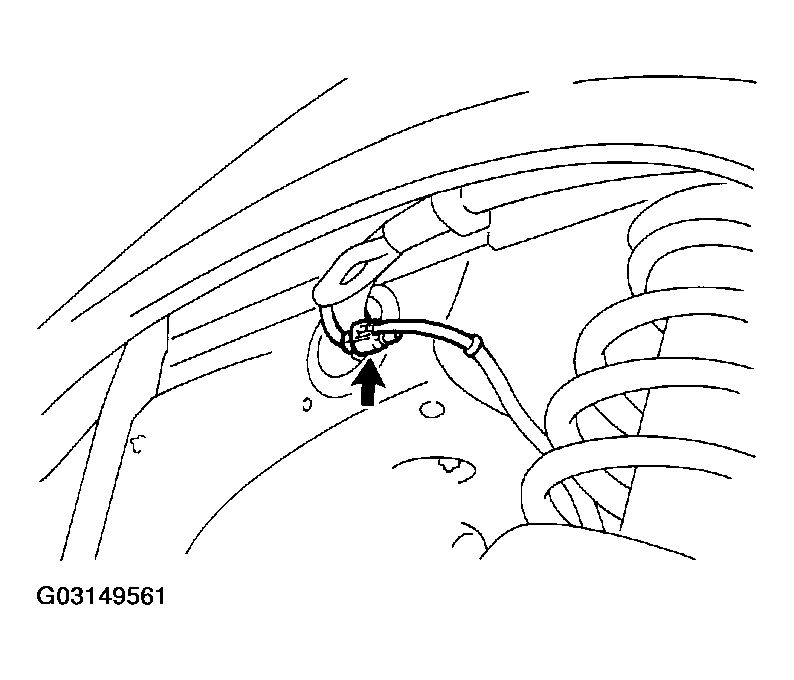

      3. Fig 1: Disconnecting Speed Sensor Connector
      G03149561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SPEED SENSOR
    1. Remove the bolt, then disconnect the flexible hose and speed sensor harness clamp from the shock absorber.

      Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)

    2. Remove the resin clip from the shock absorber.
    3. Remove the bolt and speed sensor harness clamp to the body.

      Torque: 5.0 N.m (55 kgf.cm, 48 in.lbf)

    4. Remove the bolt and speed sensor from the steering knuckle.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

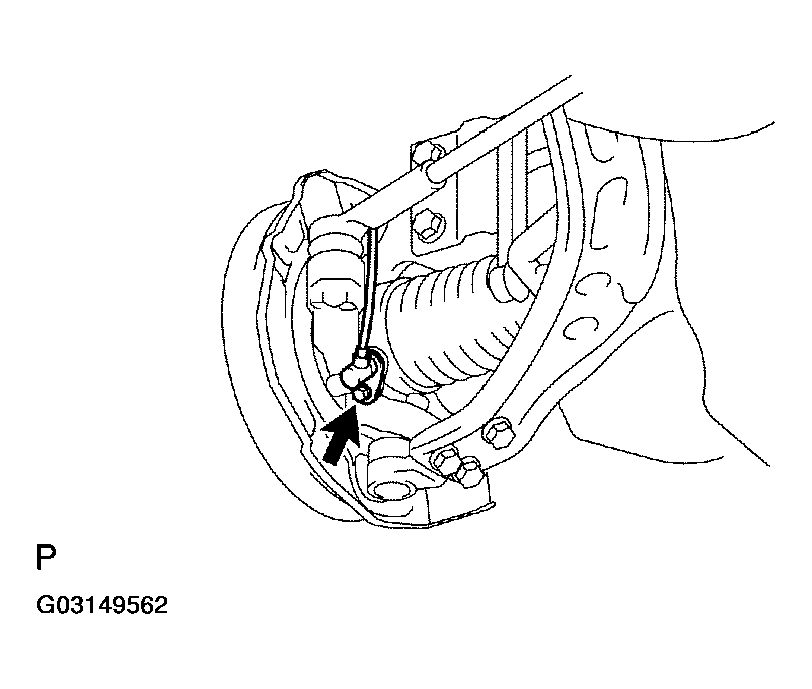

      Fig 2: Removing Bolt & Speed Sensor From Steering Knuckle
      G03149562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
