Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

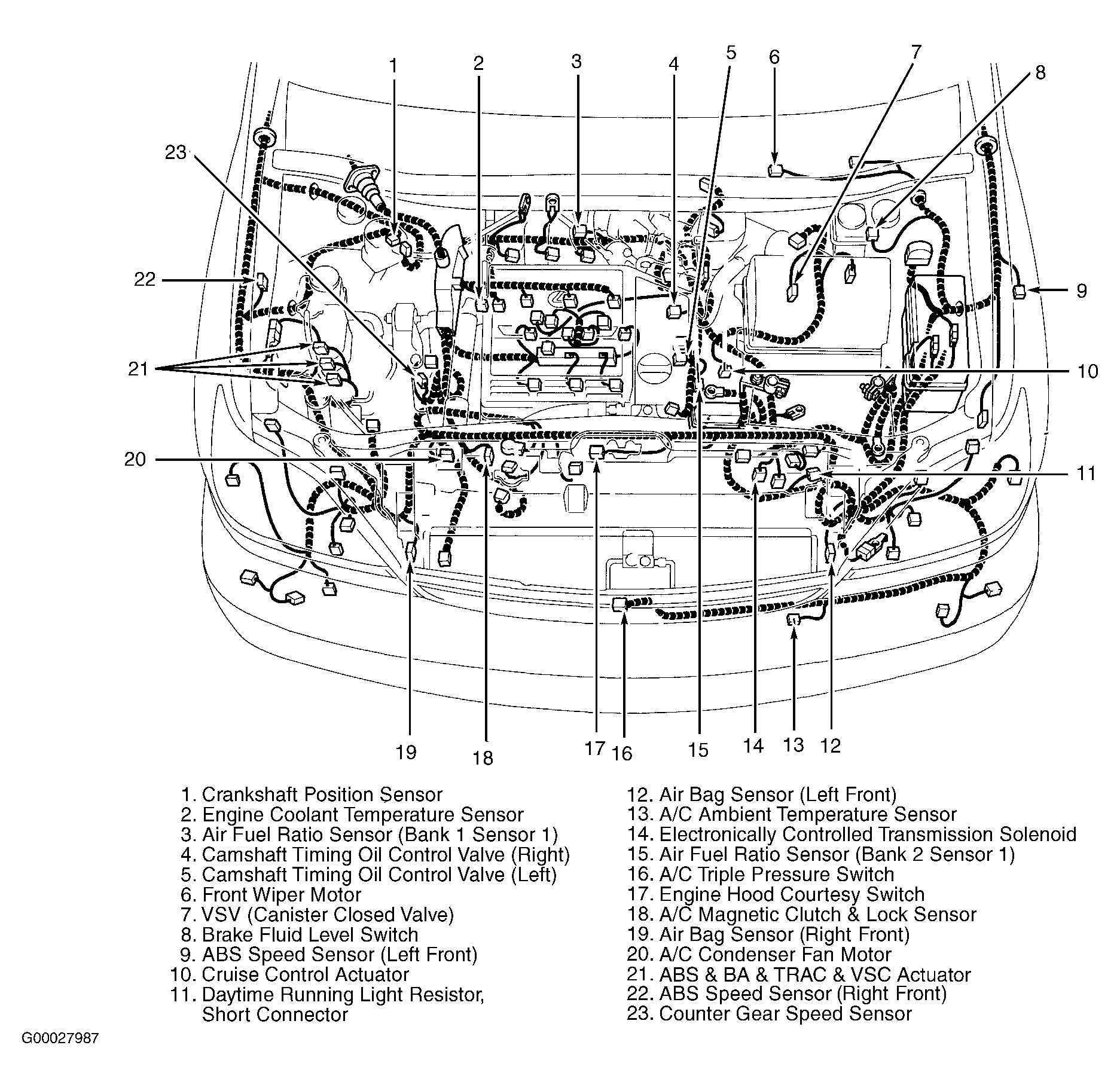

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

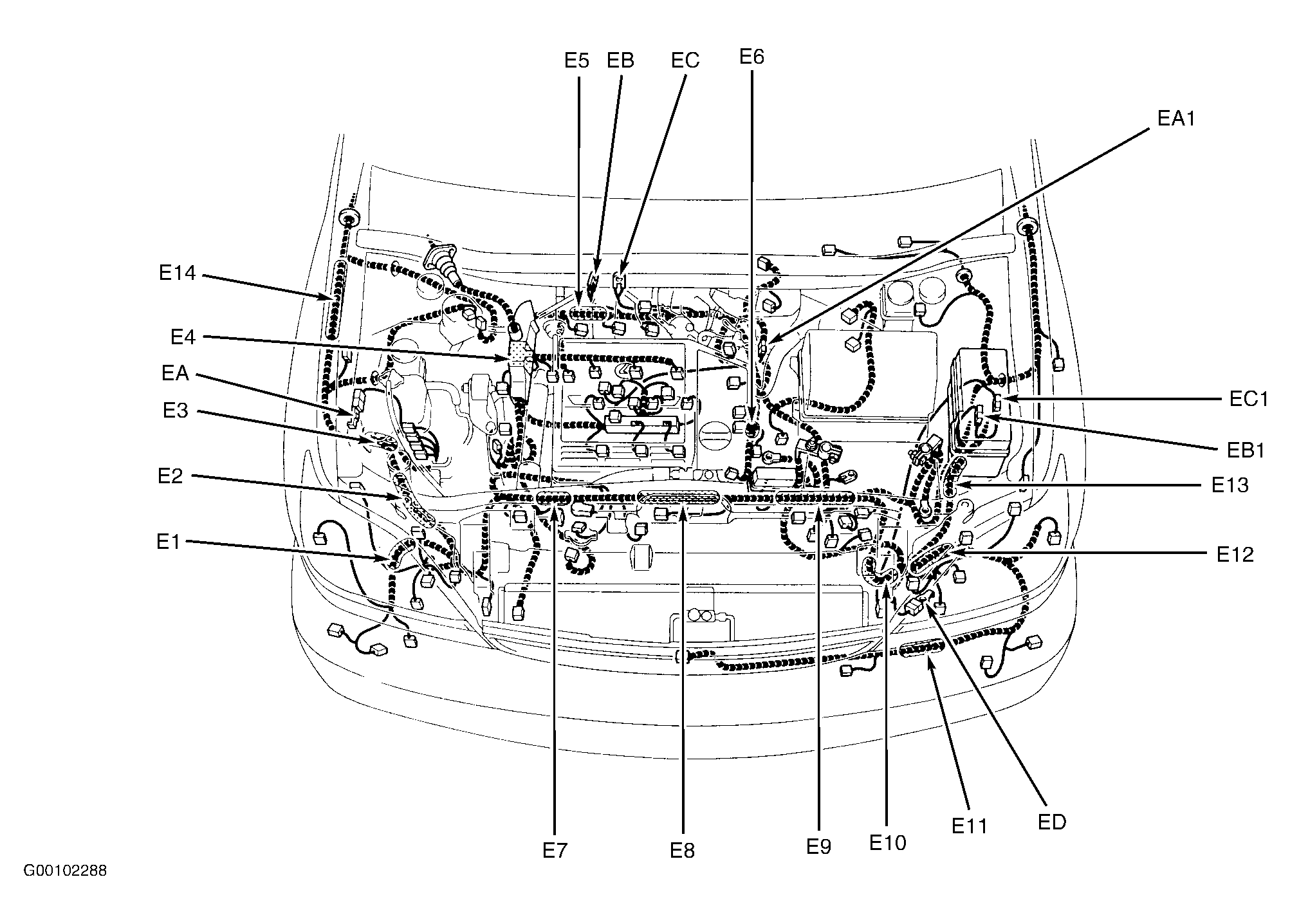

Fig 2: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Exploded View Of Instrument Cluster

Fig 6: Vehicle Overview

Fig 7: Engine Compartment
