Navigation Module: Service and Repair

Audio & Visual System Part 1:

Audio & Visual System Part 2:

NAVIGATION ECU

REPLACEMENT

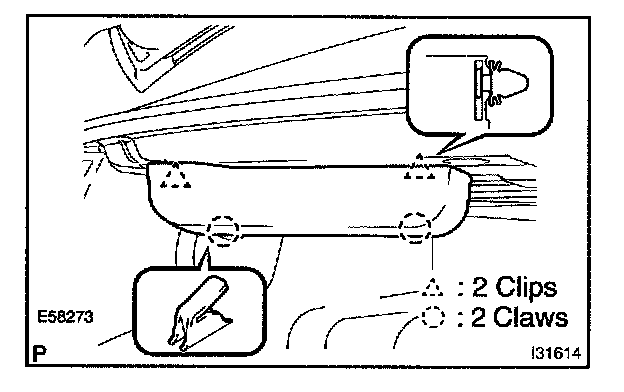

1. REMOVE NAVIGATION ECU COVER
a. Disengage the 2 clips and 2 claws, then remove the navigation ECU cover.

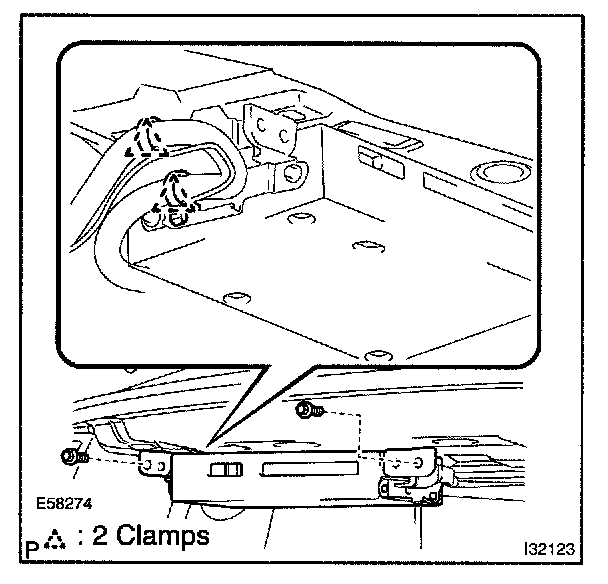

2. REMOVE NAVIGATION ECU
a. Remove the 2 clamps.
b. Disconnect the connectors.
c. Remove the 2 bolts and navigation ECU.







3. REMOVE NAVIGATION ECU BRACKET

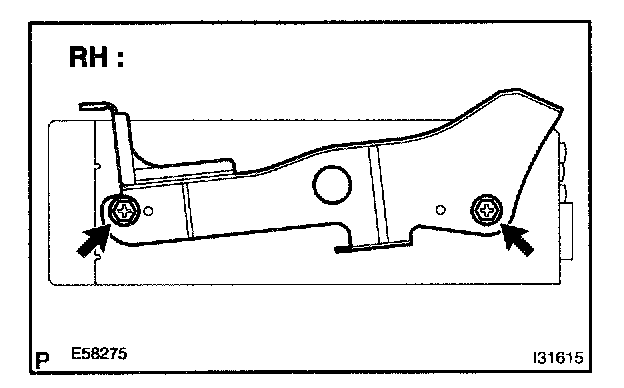

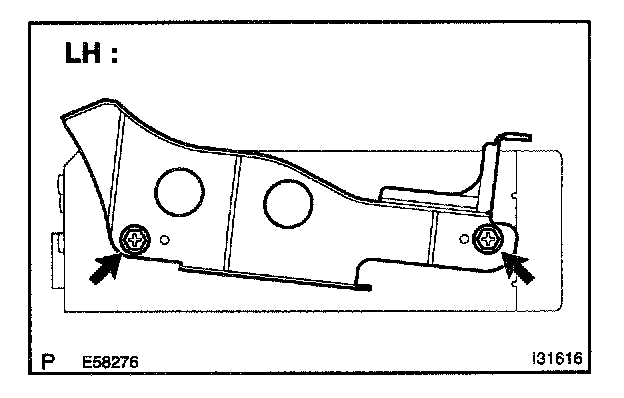

a. Remove the 4 screws and the navigation ECU bracket.
