Navigation Module: Testing and Inspection

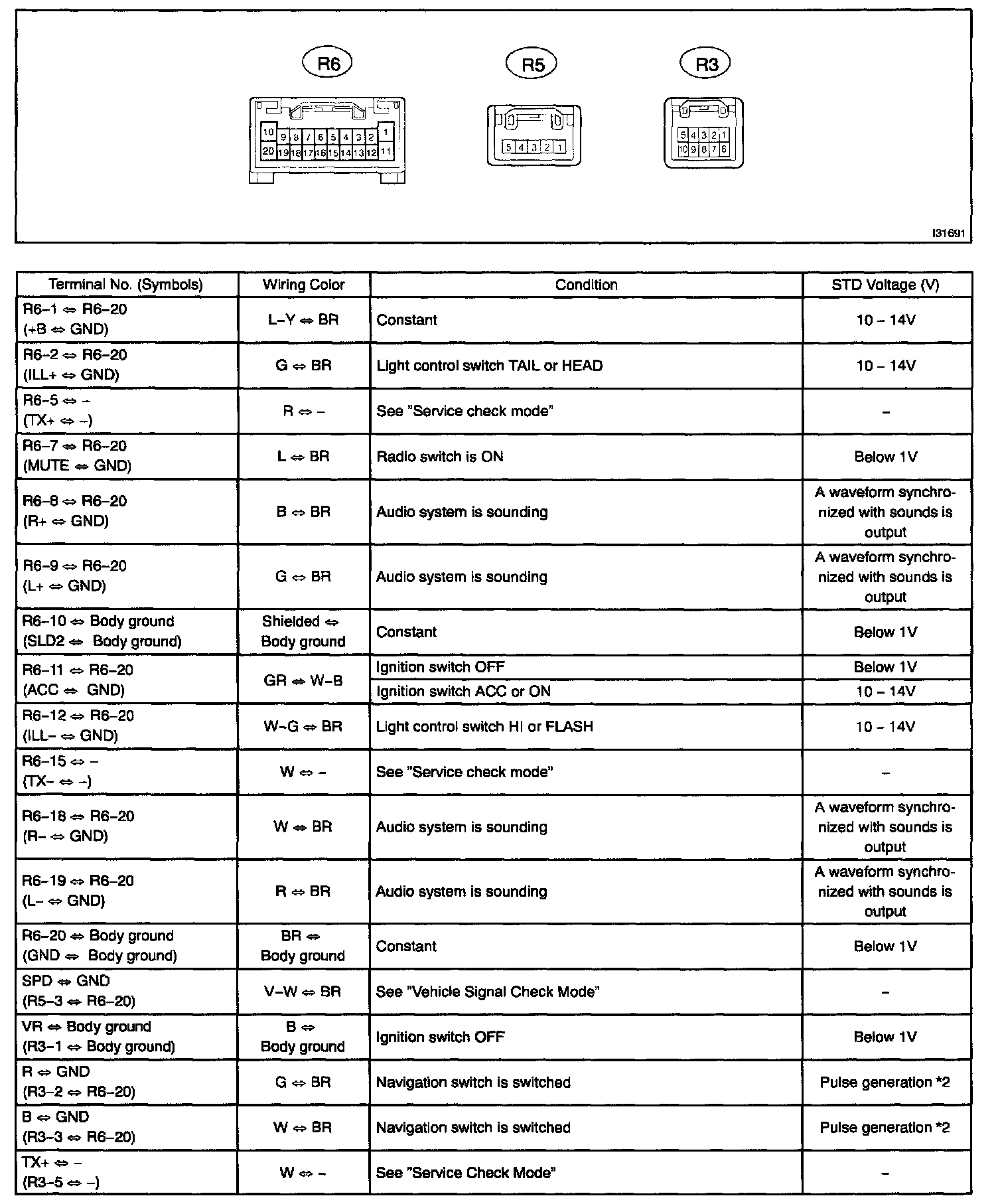

Terminals Of ECU/Pinouts - Radio Receiver Assy Part 1:

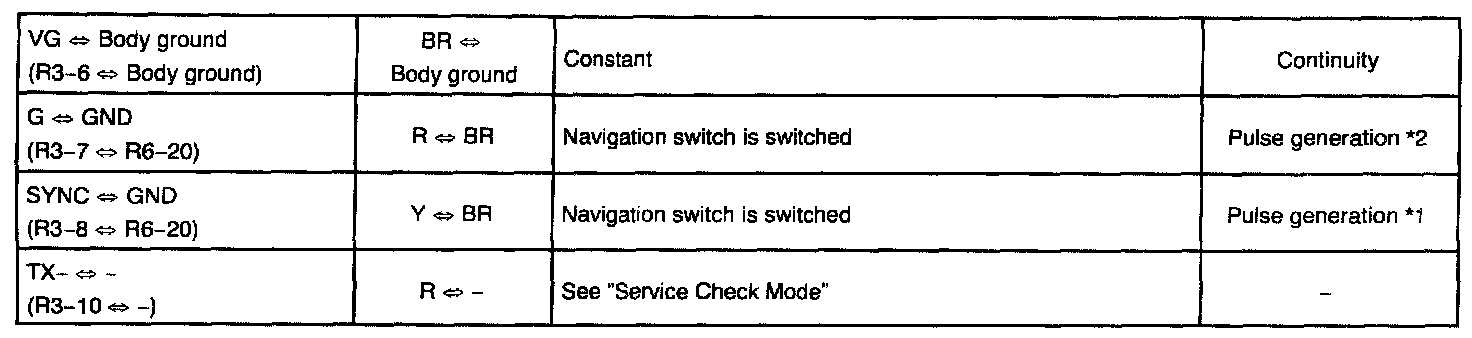

Terminals Of ECU/Pinouts - Radio Receiver Assy Part 2:

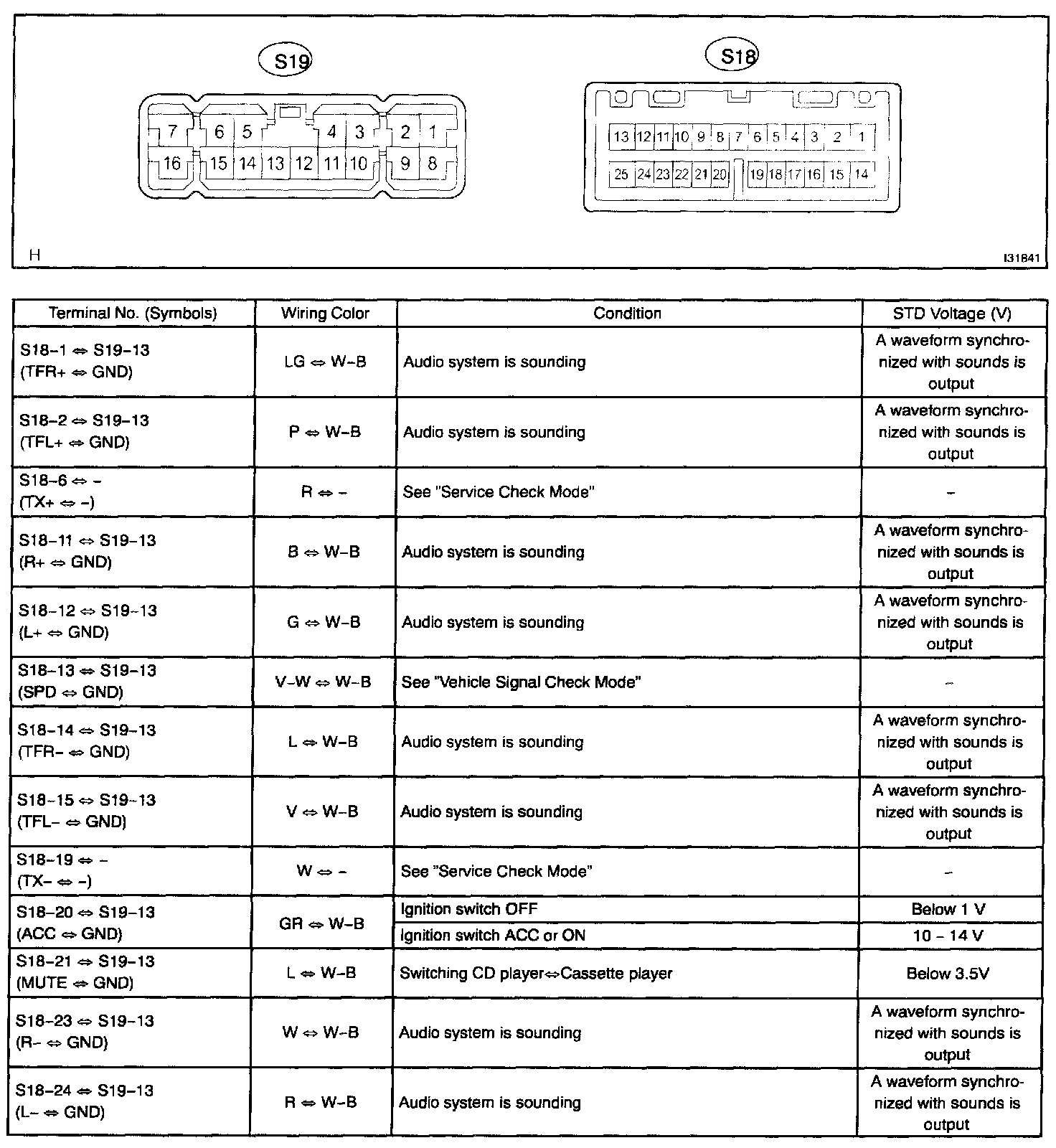

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy (Mark Levinson) Part 1:

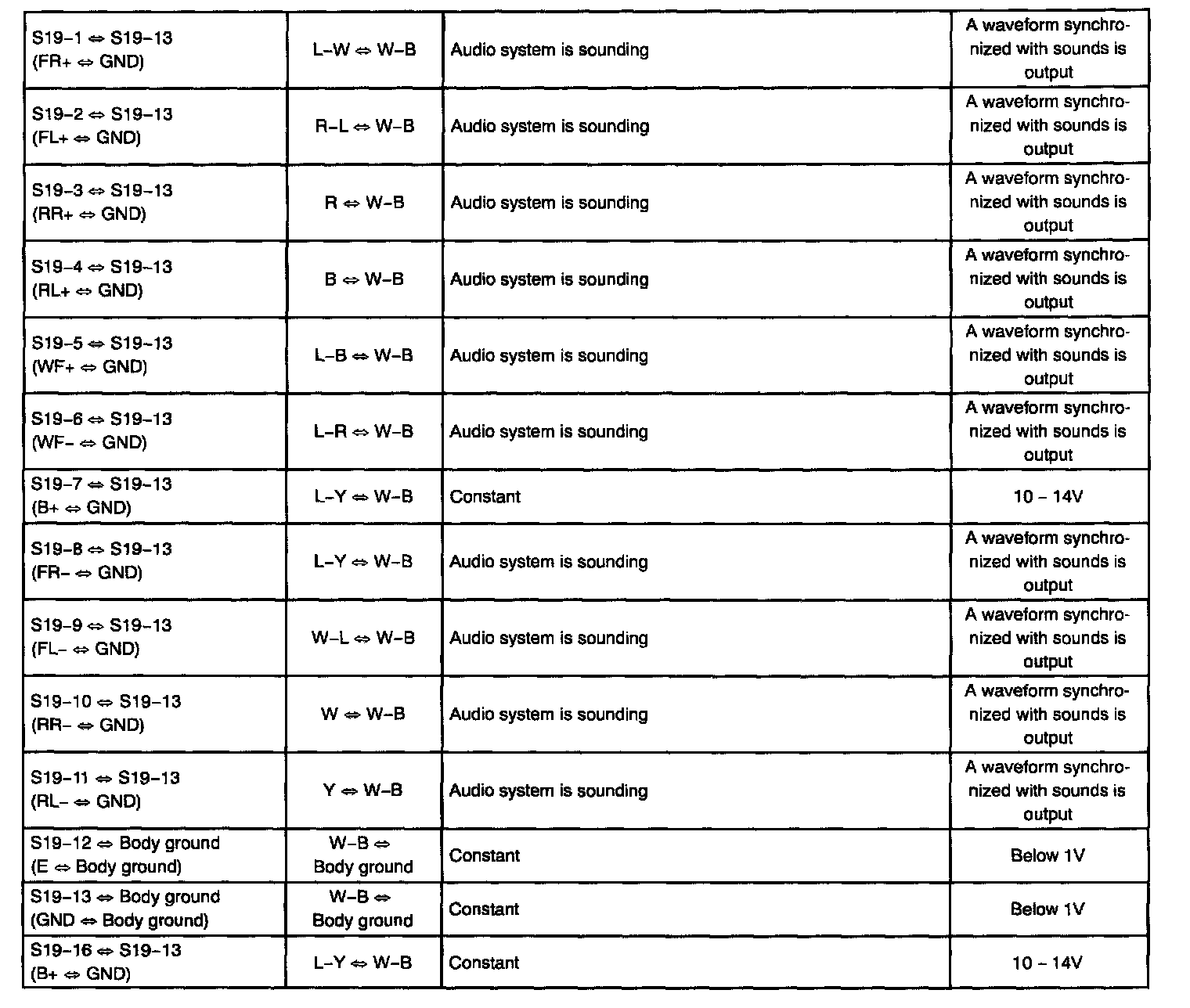

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy (Mark Levinson) Part 2:

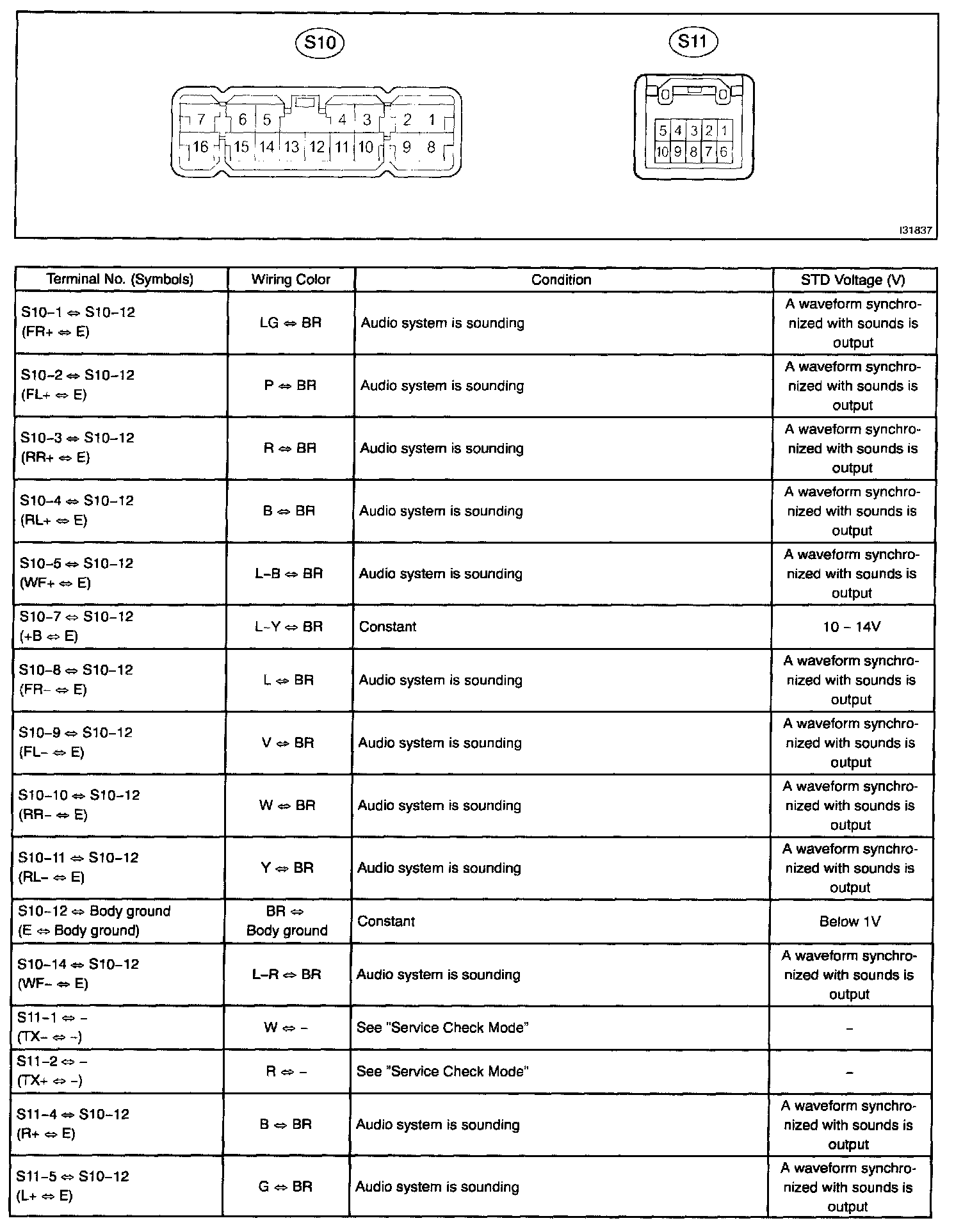

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy (Except Mark Levinson) Part 1:

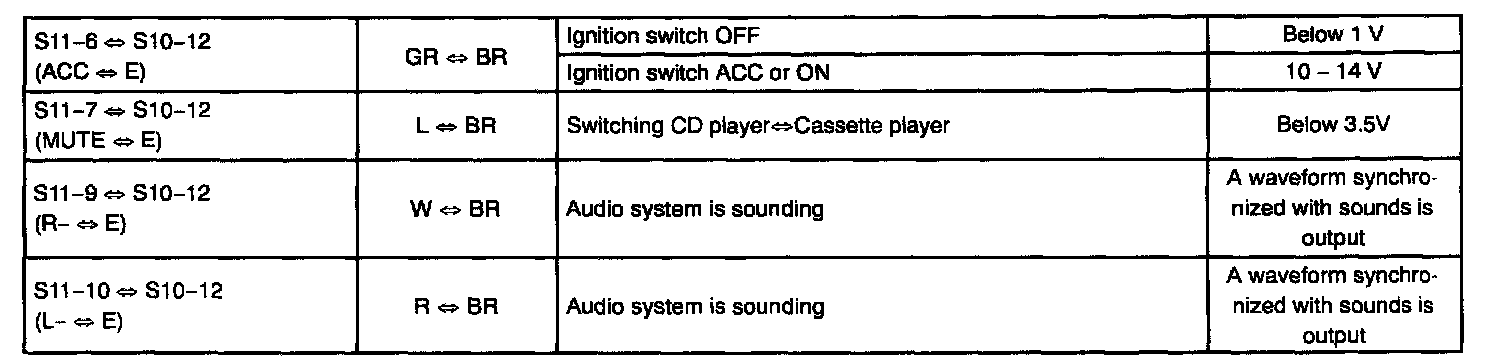

Terminals Of ECU/Pinouts - Stereo Component Amplifier Assy (Except Mark Levinson) Part 2:

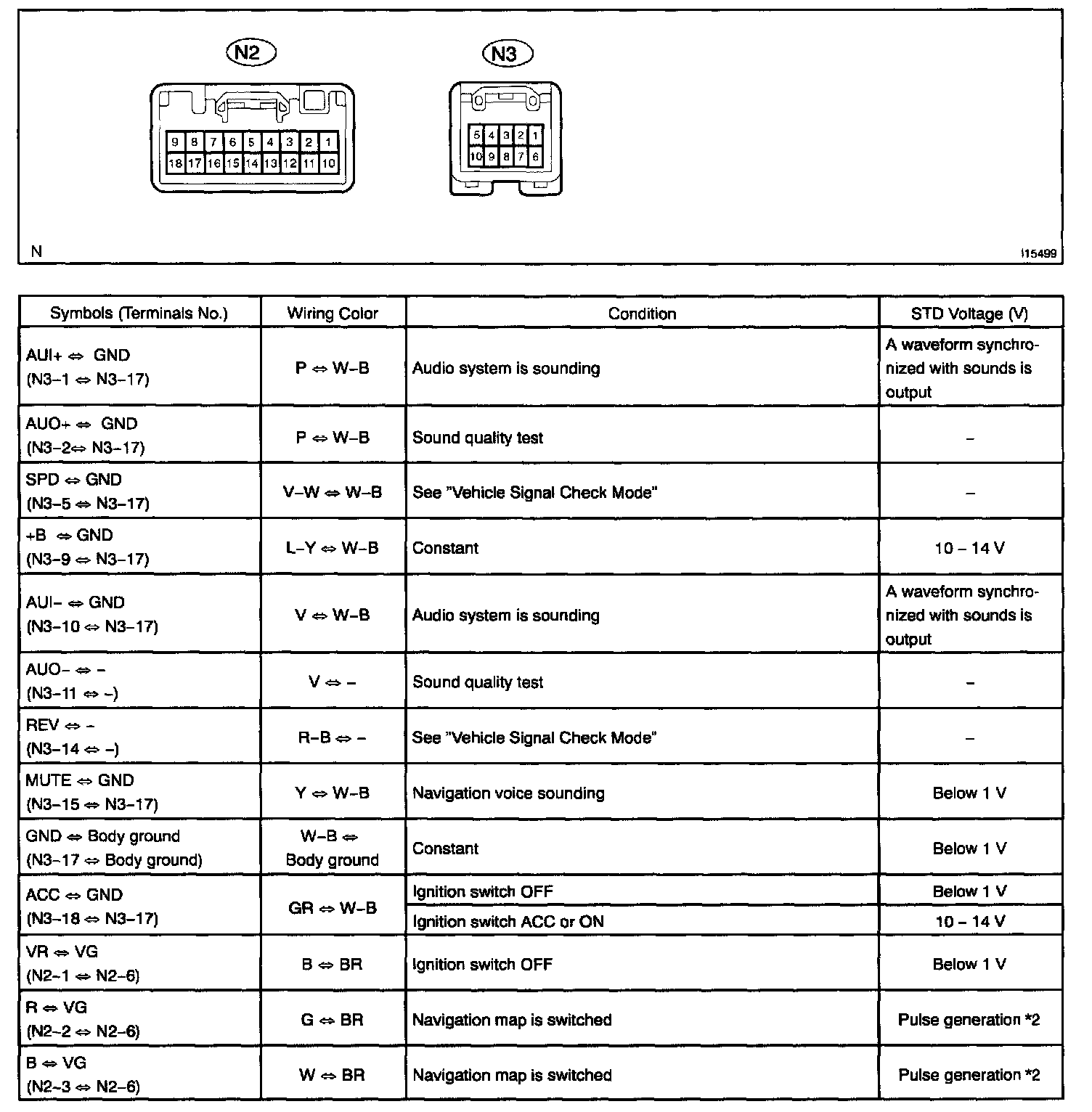

Terminals Of ECU/Pinouts - Navigation ECU Part 1:

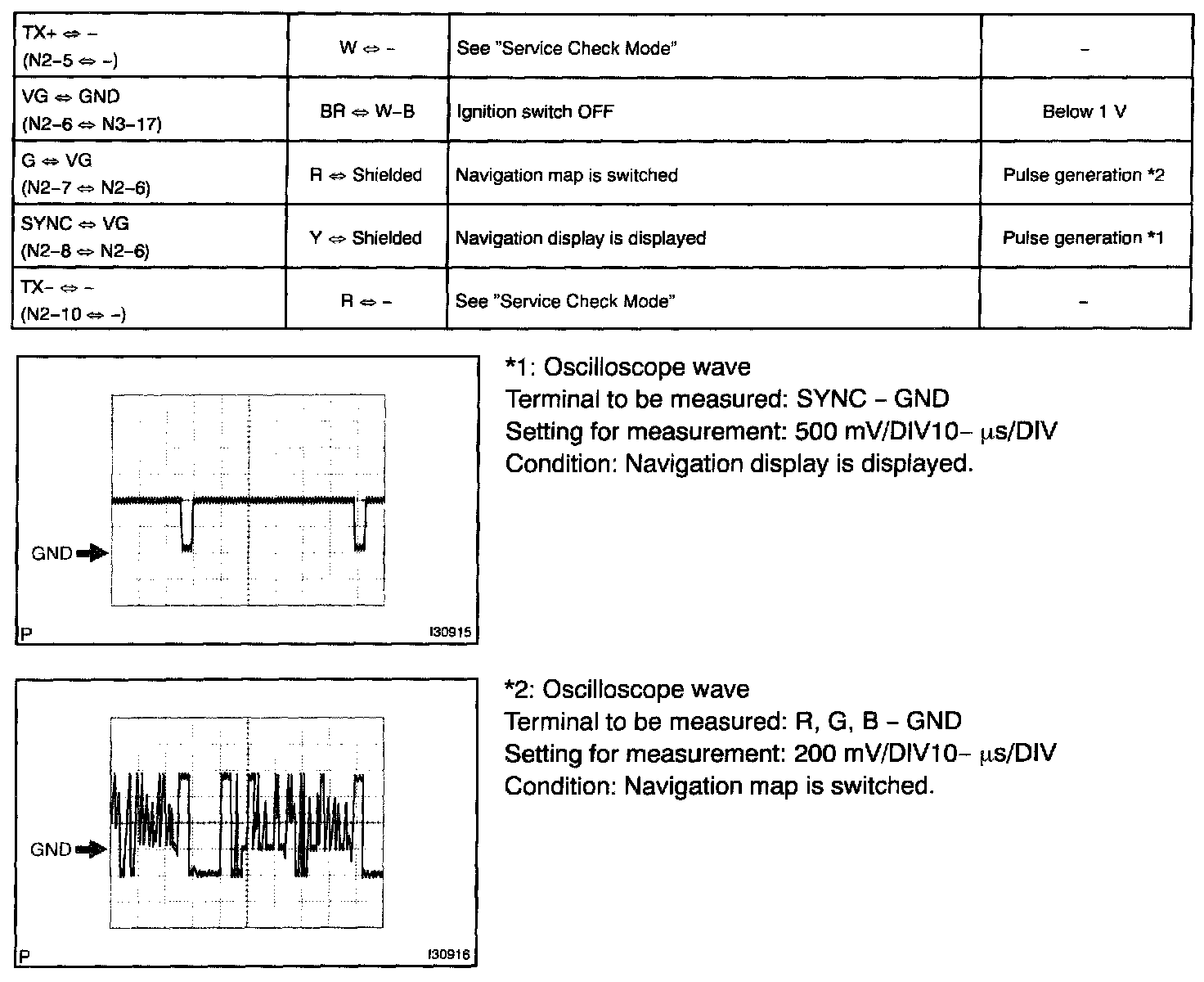

Terminals Of ECU/Pinouts - Navigation ECU Part 2:
