Keyless Entry Module: Testing and Inspection

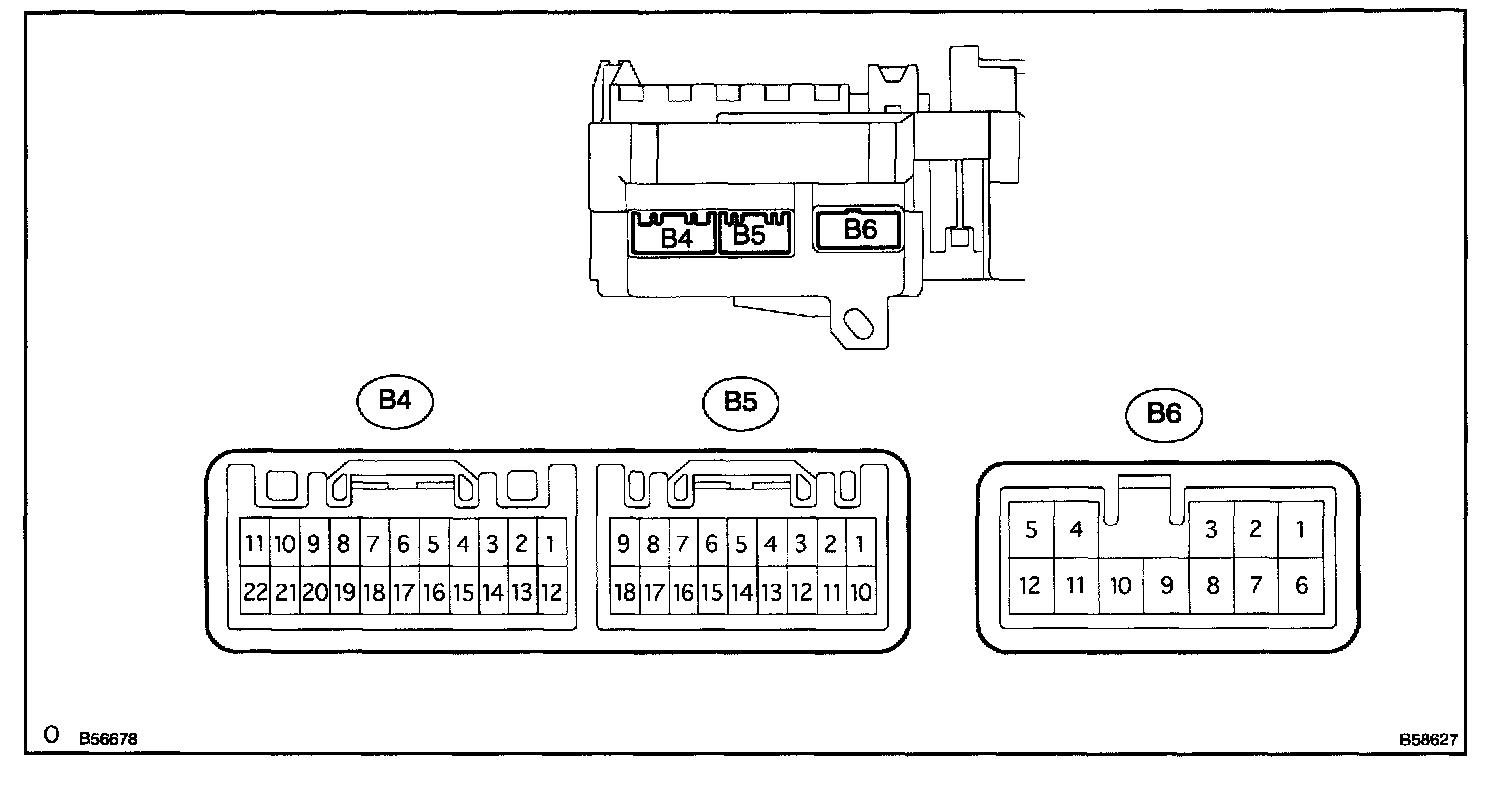

TERMINALS OF ECUTerminals Of ECU:
1. CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU) (LEFT SIDE)
a. Disconnect the B4 body ECU connector.
Pinouts:

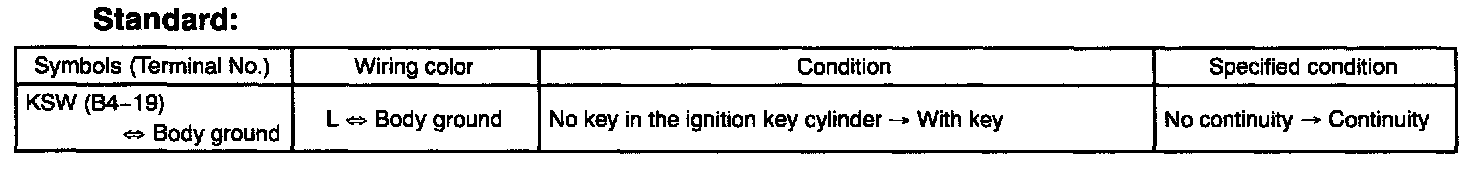

b. Check the continuity of the terminal of the disconnected connector.
c. Reconnect the B4 body ECU connector.
Pinouts:

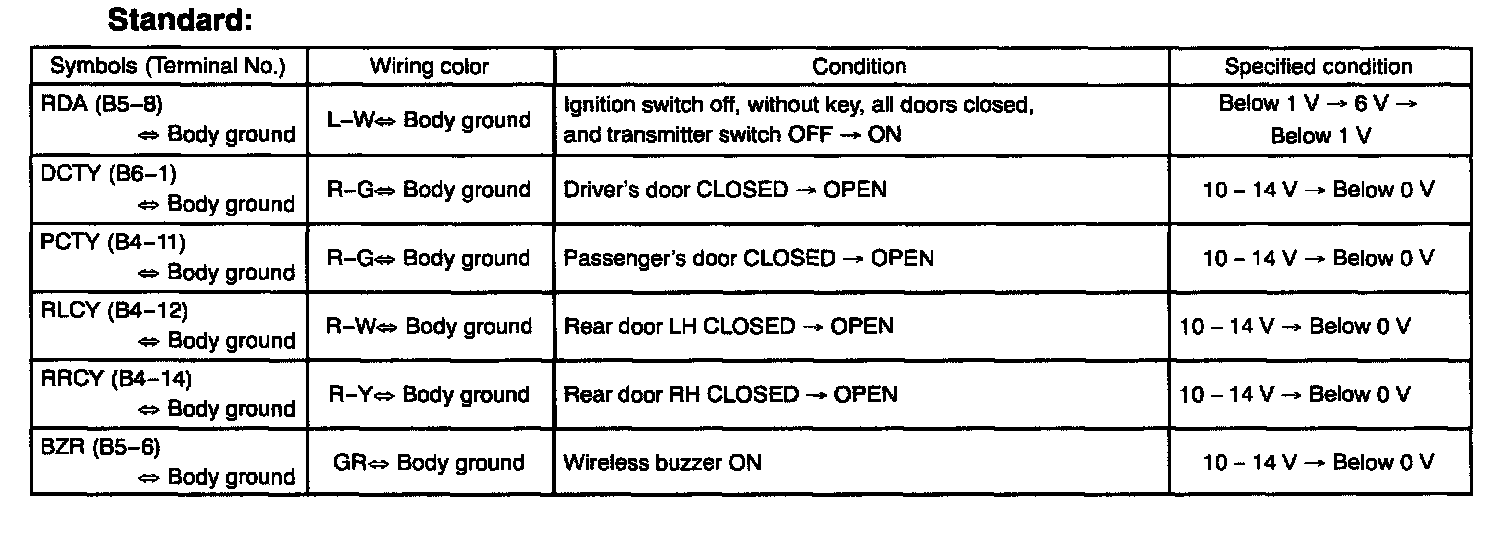

d. Check the voltage of each terminal of the connectors.
Terminals Of ECU:

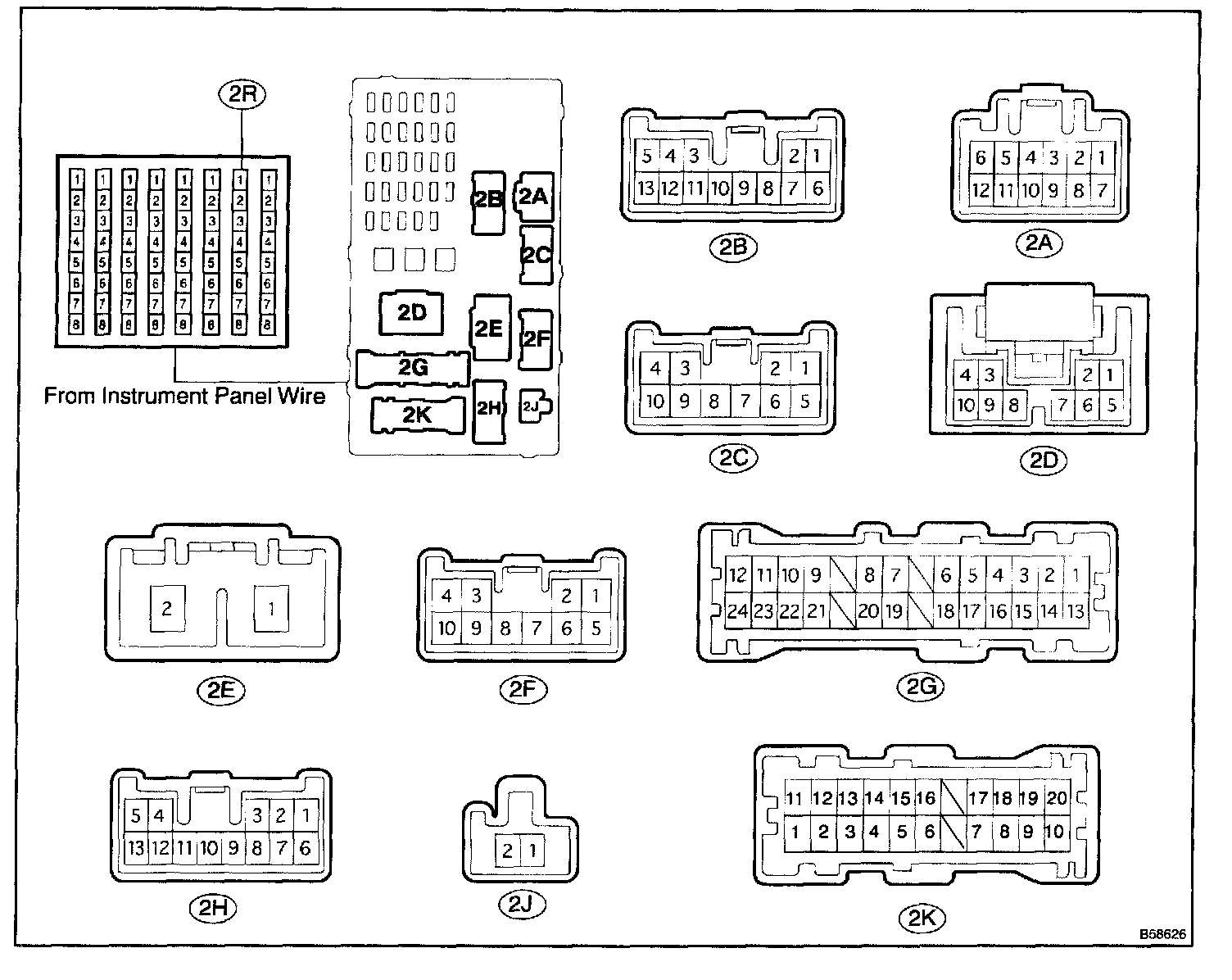

2. CHECK DRIVER SIDE JUNCTION BLOCK ASSY (BODY ECU) (REAR SIDE)
a. Disconnect the 2B, 2F and 2G driver side J/B connectors.
Pinouts:

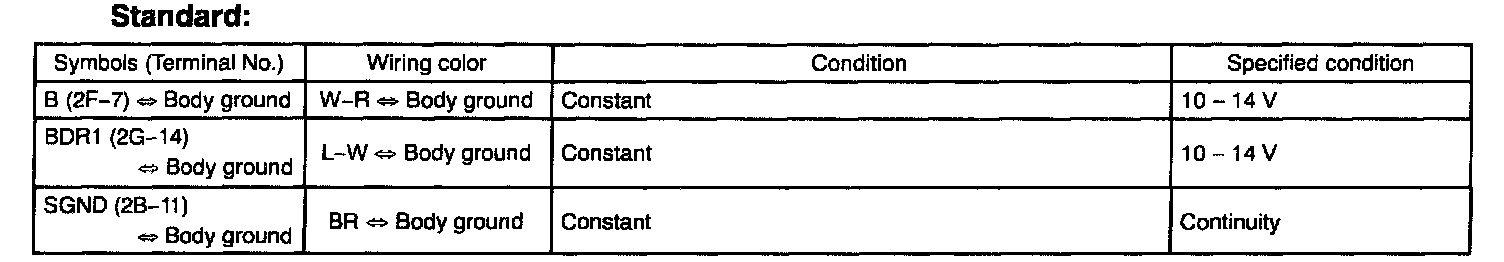

b. Check the continuity and voltage of each terminal of the disconnected connectors
Pinouts:

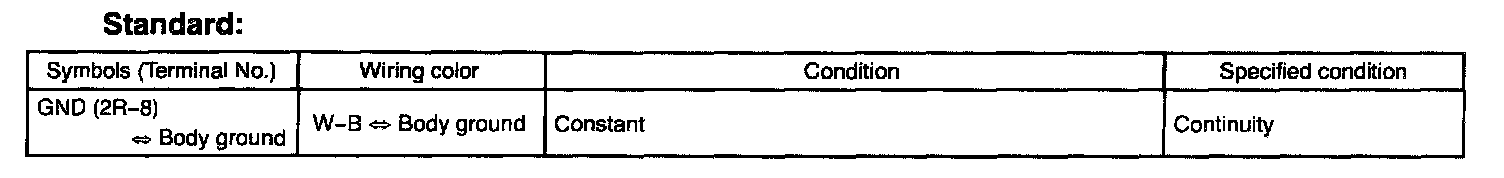

c. Reconnect the connectors, and check the continuity of the terminal of the connector.
