Power Mirror Control Module: Testing and Inspection

TERMINALS OF ECU

Terminals Of ECU:

1. CHECK OUTER MIRROR CONTROL ECU ASSY

a. Disconnect the M2 mirror ECU connector.

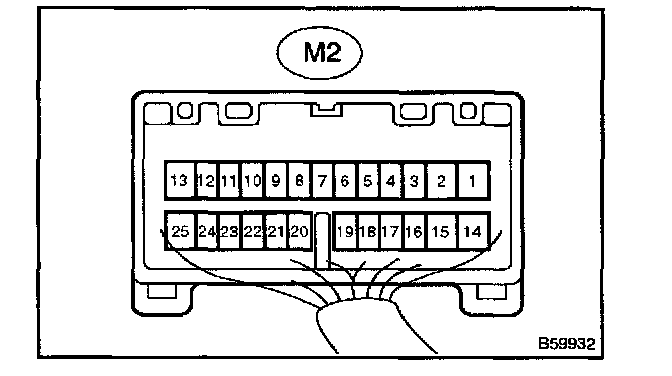

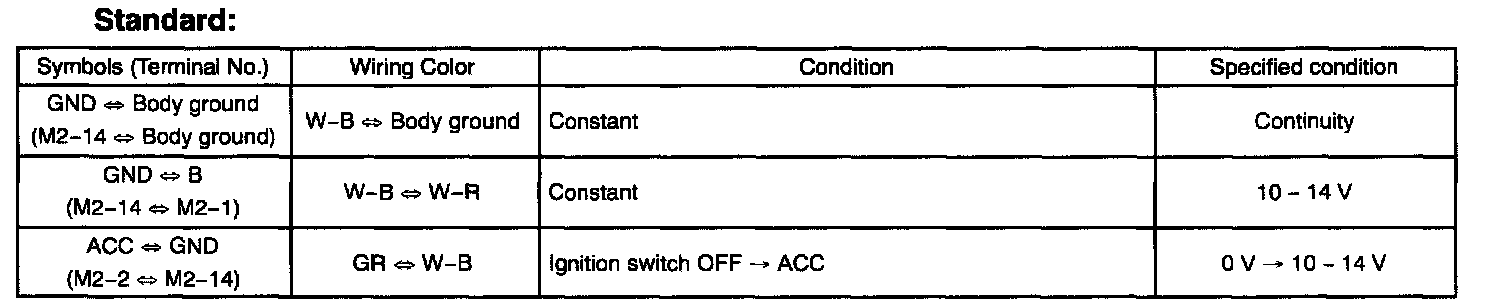

Pinouts:

b. Check the voltage and continuity between each terminal of the wire harness side connector.

HINT: If the value is not as specified, a malfunction exists in the wire harness side.

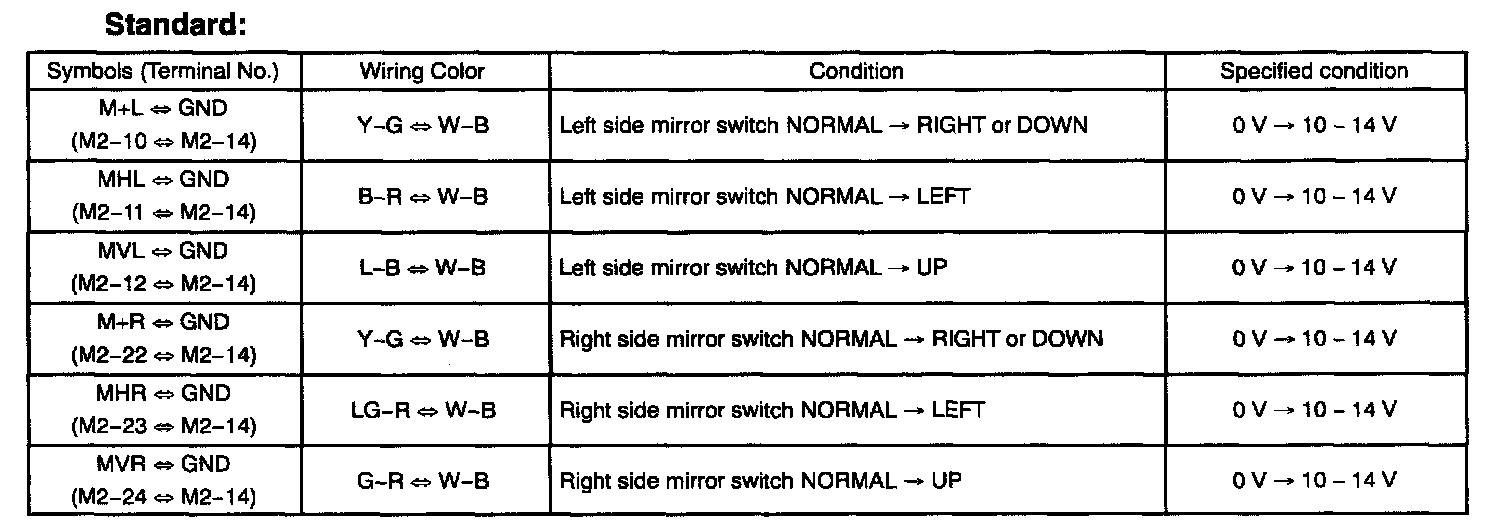

Pinouts:

c. Connect the M2 connector, and check the voltage between each terminal of the connector.

HINT: If the value is not as specified, a malfunction exists in the outer mirror control ECU assy.
