Power Seat Control Module: Testing and Inspection

TERMINALS OF ECU

Terminals Of ECU:

1. CHECK POSITION CONTROL ECU ASSY

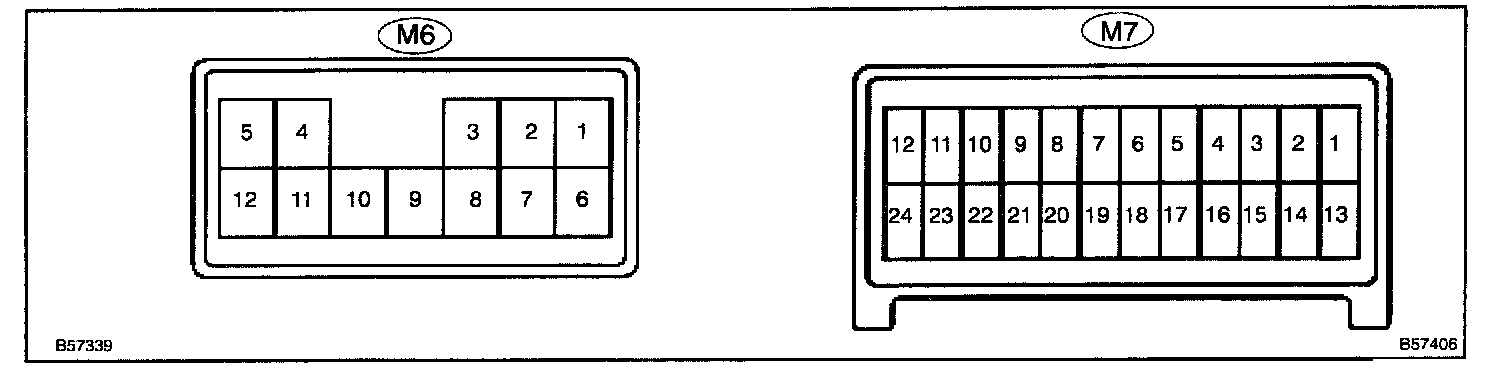

Pinouts:

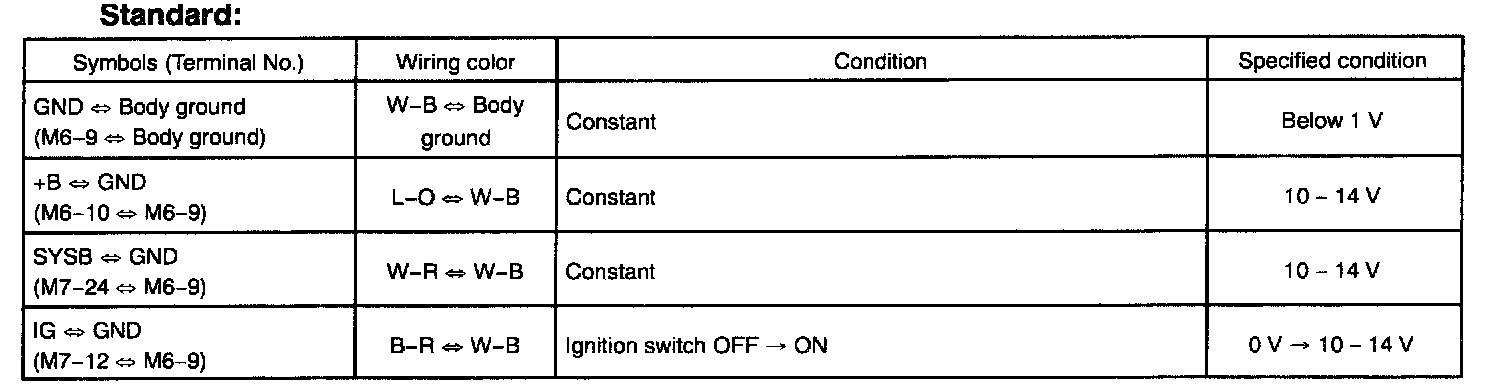

a. Disconnect the M6 and M7 position control ECU connectors, and check the voltage of each terminals of the disconnected connectors.

If the result is not as specified, the position control ECU may malfunction.

Pinouts:

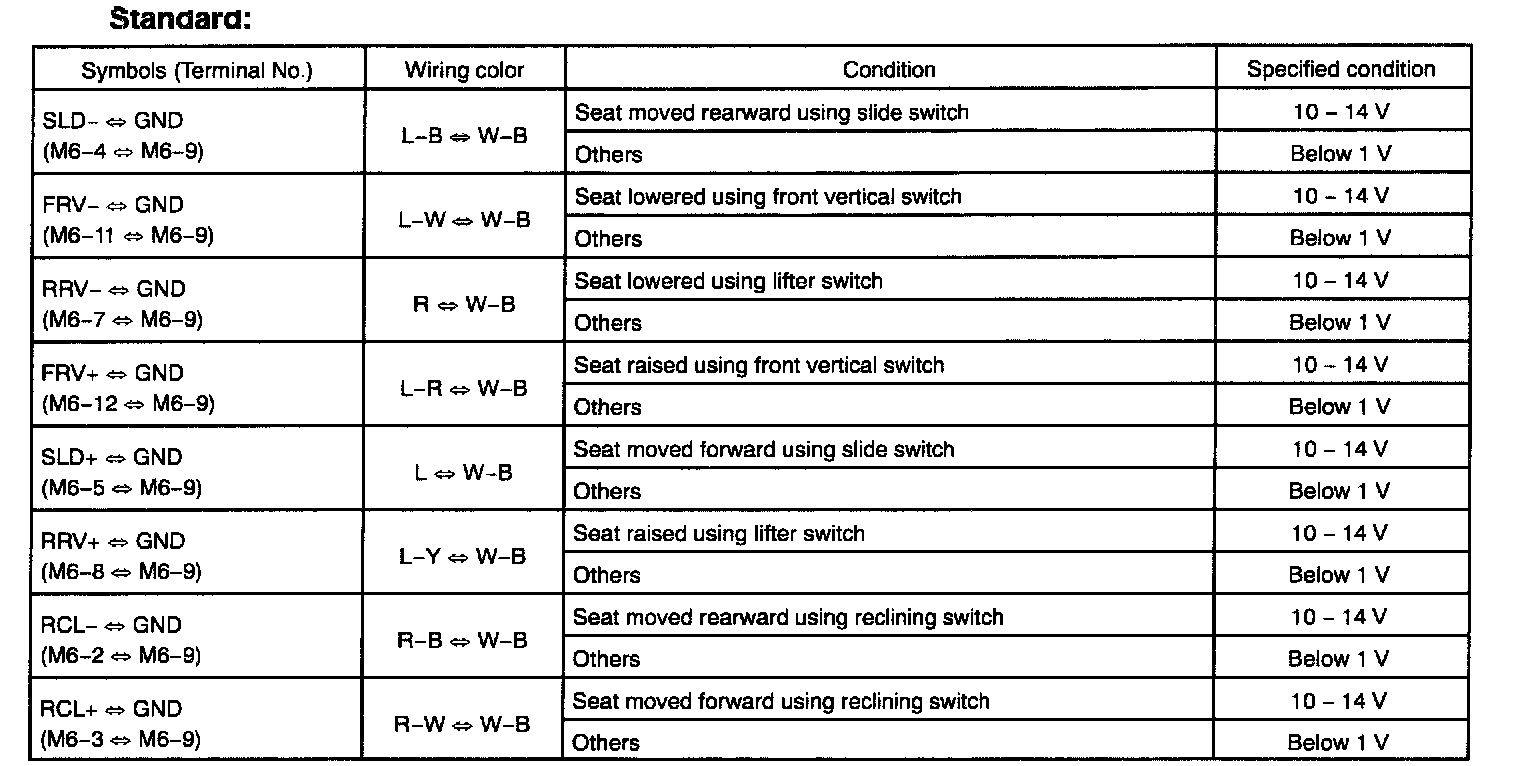

b. Reconnect the M6 position control connector, and check the voltage of each terminal of the connector.

If the result is not as specified, the position control of ECU may malfunction.
