Vehicle Speed Sensor: Testing and Inspection

INSPECT OUTPUT SIGNAL OF VEHICLE SPEED
a. Check for standard signal.

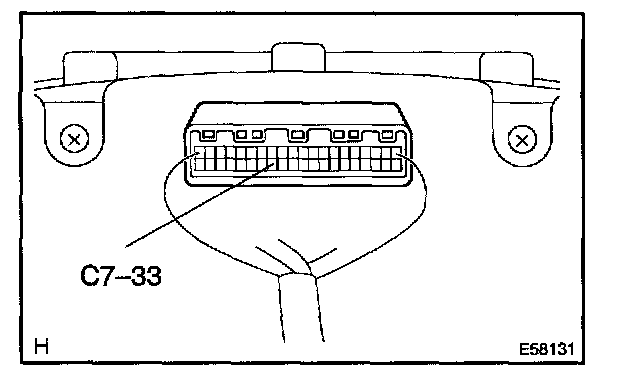

1. While driving the vehicle at the speed of 10 km/h, check the voltage between the terminals C7-33 of the combination meter assy and body ground.

Standard: Fluctuation between 10 to 14 V or less is repeated 7 times within 1 sec.

NOTE: Check it with the ignition switch ON and the connector connected.
