Inner Rear View Mirror: Replacement

HINT:

Installation is according to the reverse order of the removal.

1. REMOVE INNER REAR VIEW MIRROR ASSY
   1. Remove the screw.
   2. Remove the inner rear view mirror cover.
   3. Disconnect the connector.
   4. Remove the rear view inner mirror assembly.

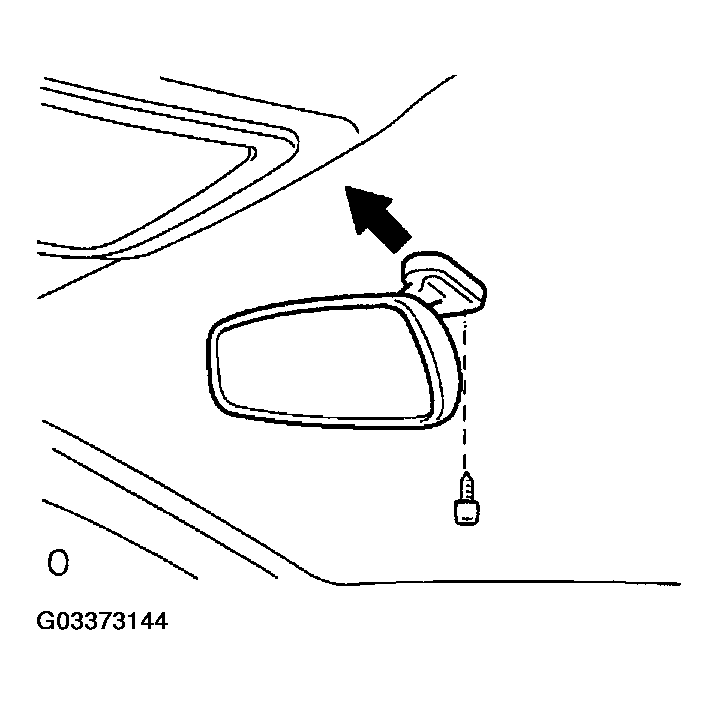

      Fig 1: Removing Rear View Mirror Screw

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
