Front Power Seat Control System (With Memory): Inspection

INSPECT SEAT MEMORY SWITCH

Disconnect seat memory switch connector.

Check the continuity of each terminal.

Standard:

TERMINAL SPECIFIED CONDITION CHART

Terminal No.	Switch position	Specified condition
1 <==> 2	SET switch ON	Continuity
1 <==> 4	Memory switch 1	Continuity
1 <==> 3	Memory switch 2	Continuity

If the result is not as specified, replace the seat memory switch.

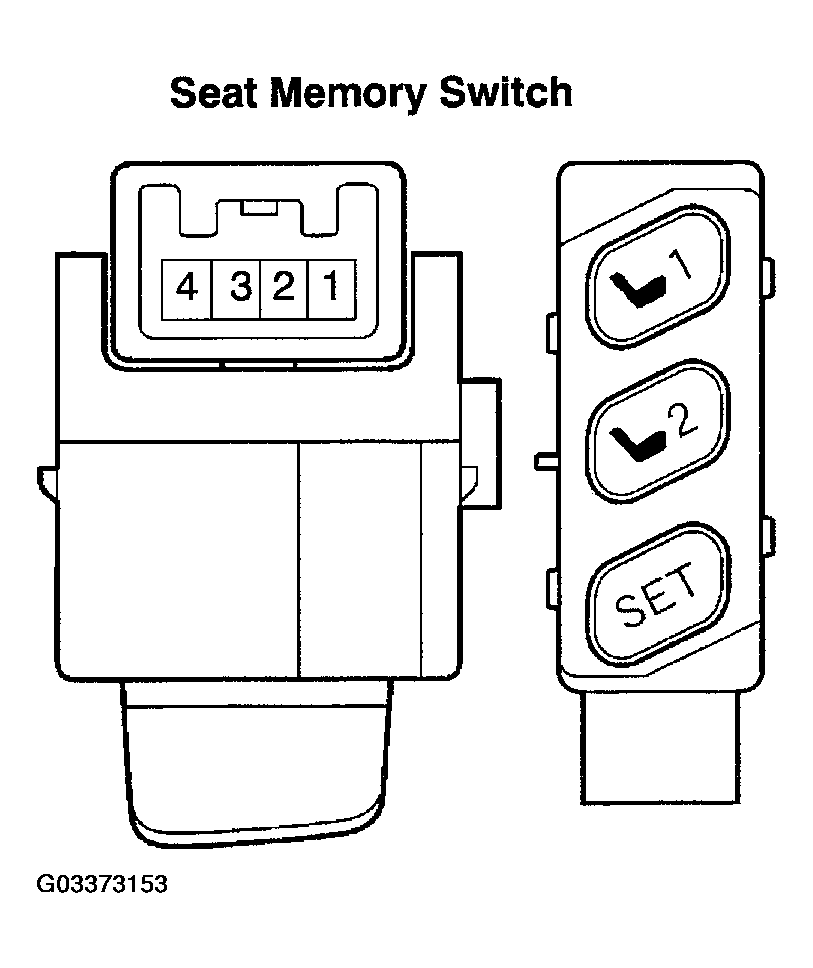

Fig 1: Identifying Seat Memory Switch Connected Terminal

G03373153

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
