Front Power Seat Control System: Location

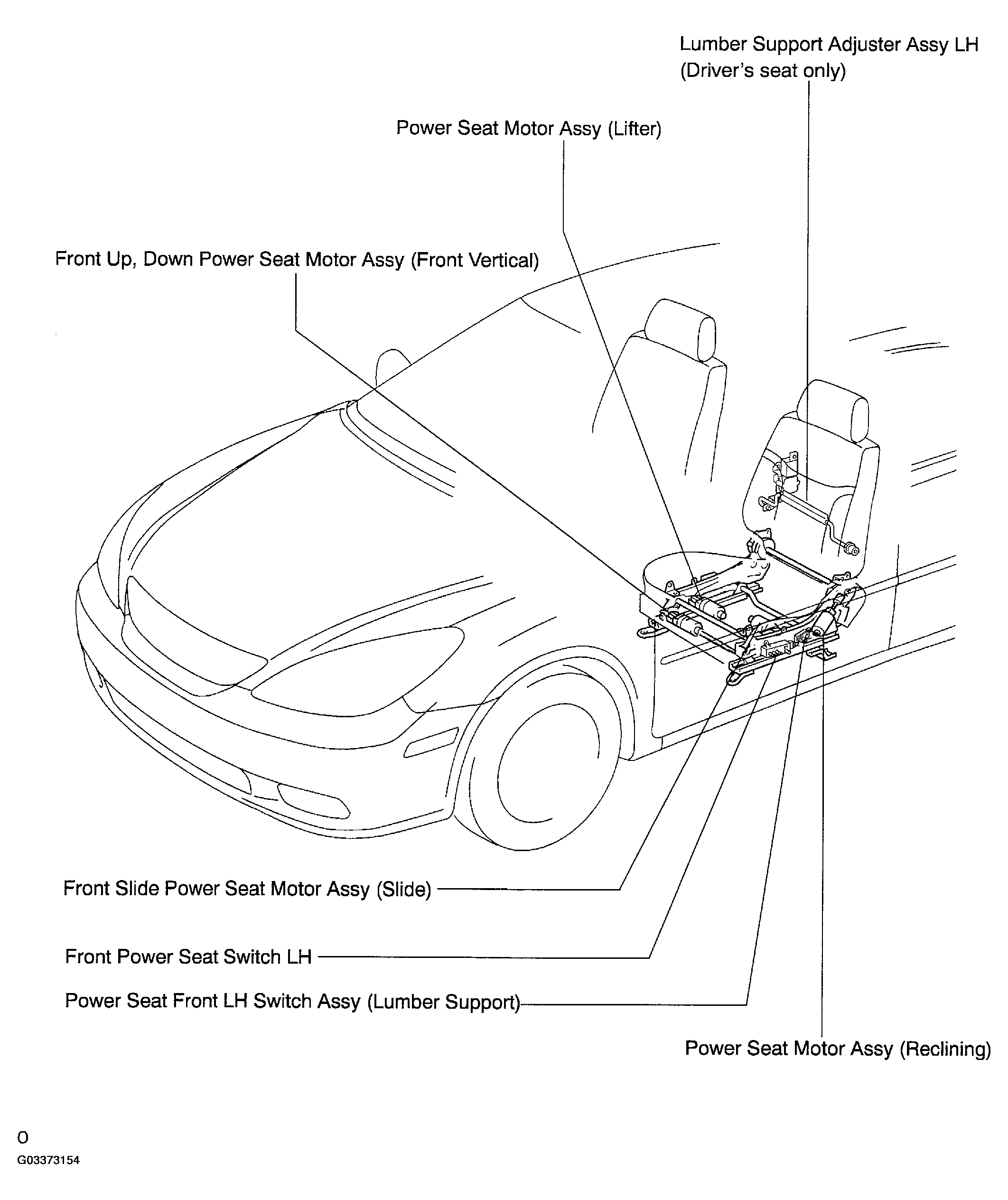

Fig 1: Identifying Front Power Seat Control System Location
G03373154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
