Skid Control Ecu ASSY: Replacement
- REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (See REPLACEMENT
)
- REMOVE INSTRUMENT PANEL SUB-ASSY LOWER (See REPLACEMENT
)
- REMOVE SKID CONTROL ECU ASSY

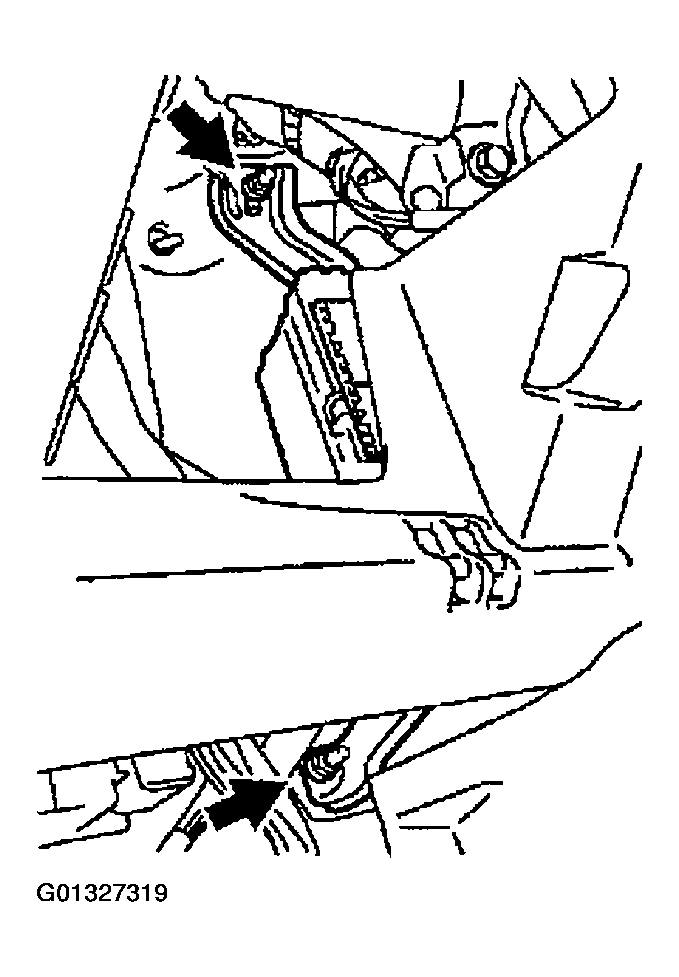

- Remove the 2 nuts and disconnect the skid control ECU from the reinforcement.
- Disconnect the skid control ECU connectors and remove the skid control ECU assy.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL SKID CONTROL ECU ASSY
- Connect the skid control ECU connectors.

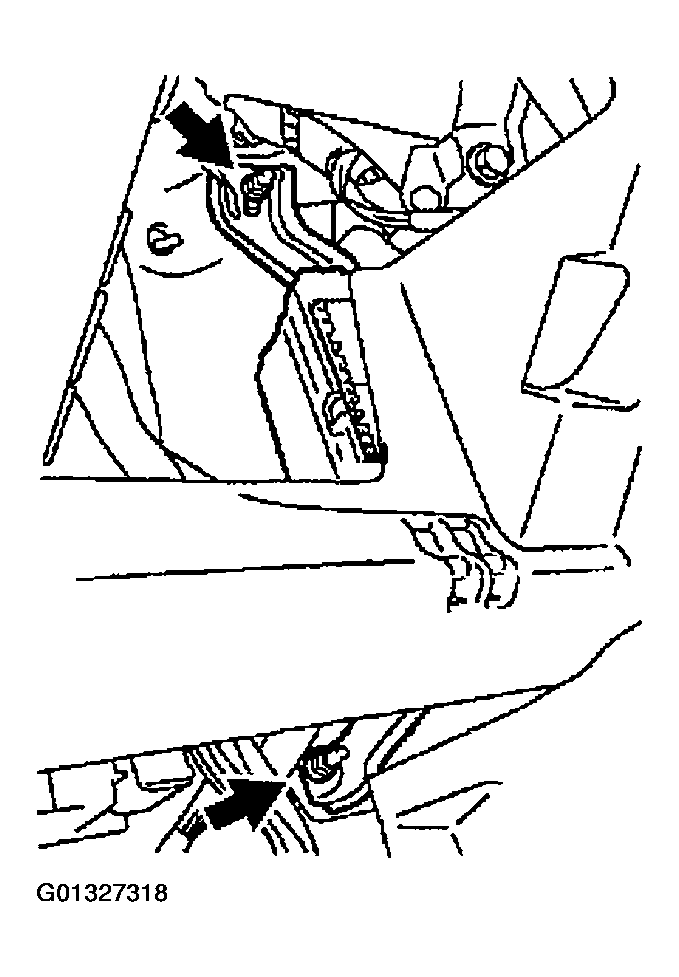

- Install the skid control ECU to the reinforcement with the 2 nuts.
- Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL INSTRUMENT PANEL SUB-ASSY LOWER (See REPLACEMENT
)
- INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1 (See REPLACEMENT
)
- PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION(W/VSC) (See PRE-CHECK
)
- PERFORM DECELERATION SENSOR ZERO POINT CALIBRATION(W/VSC) (See PRE-CHECK
)
- CHECK VSC SENSOR SIGNAL(W/VSC) (See PRE-CHECK
)
- CHECK ABS SENSOR SIGNAL(W/O VSC) (See PRE-CHECK
)
