Exhaust Pipe: Components

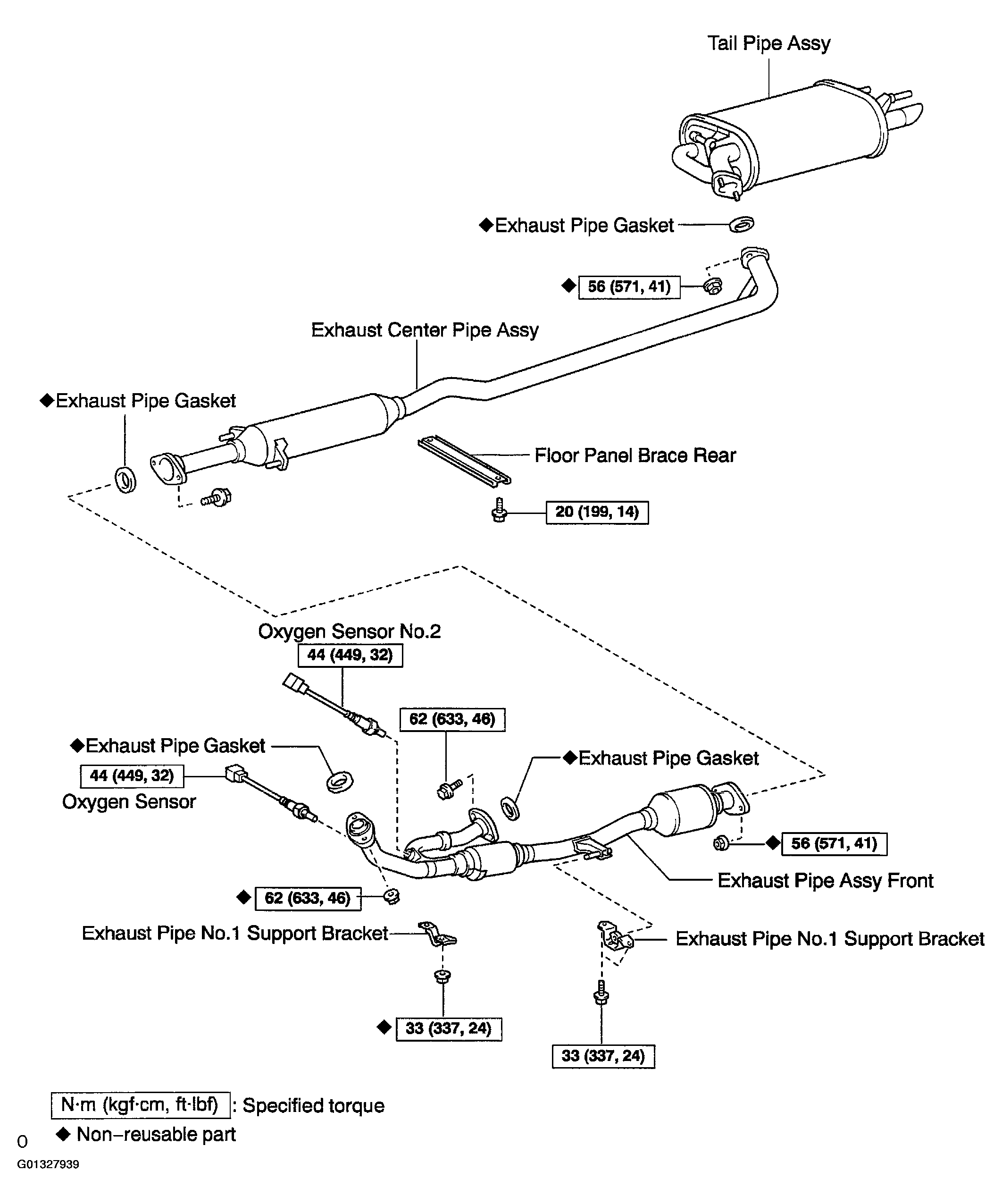

Fig 1: Identifying Components

G01327939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
