Hybrid Vehicle Transaxle ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

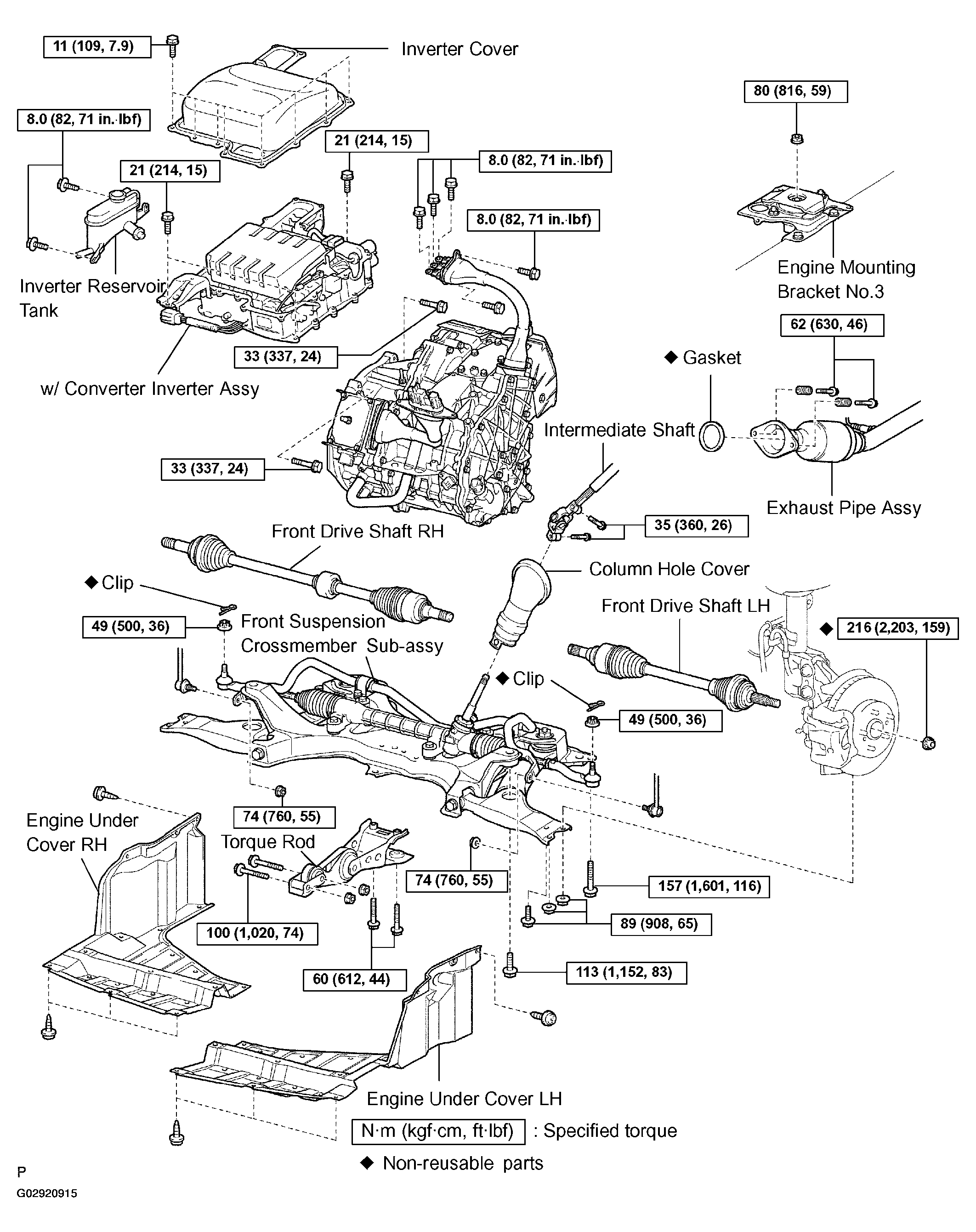

Fig 1: Hybrid Vehicle Transaxle Assy. Components Location (1 Of 3)
G02920915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

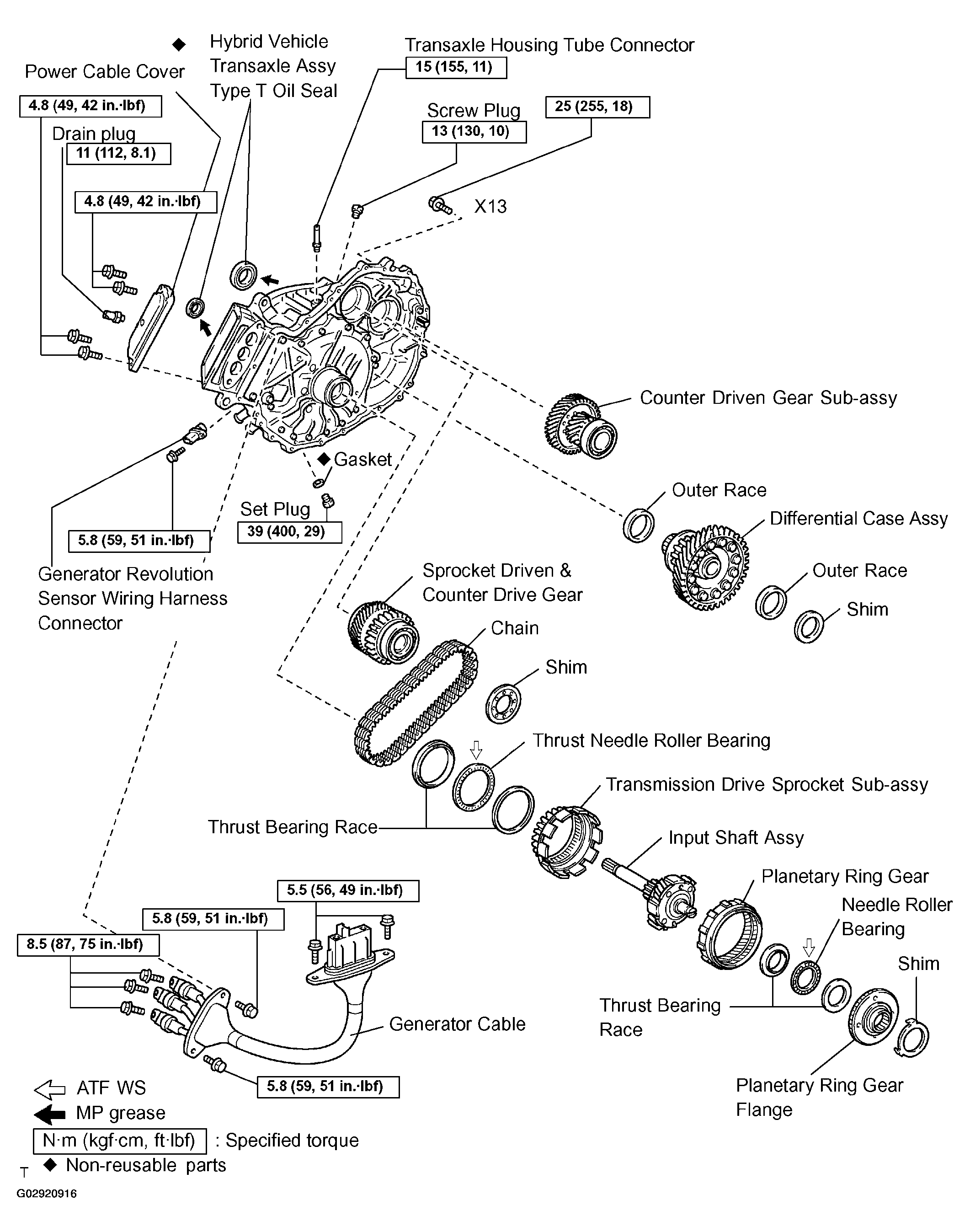

Fig 2: Hybrid Vehicle Transaxle Assy. Components Location (2 Of 3)
G02920916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

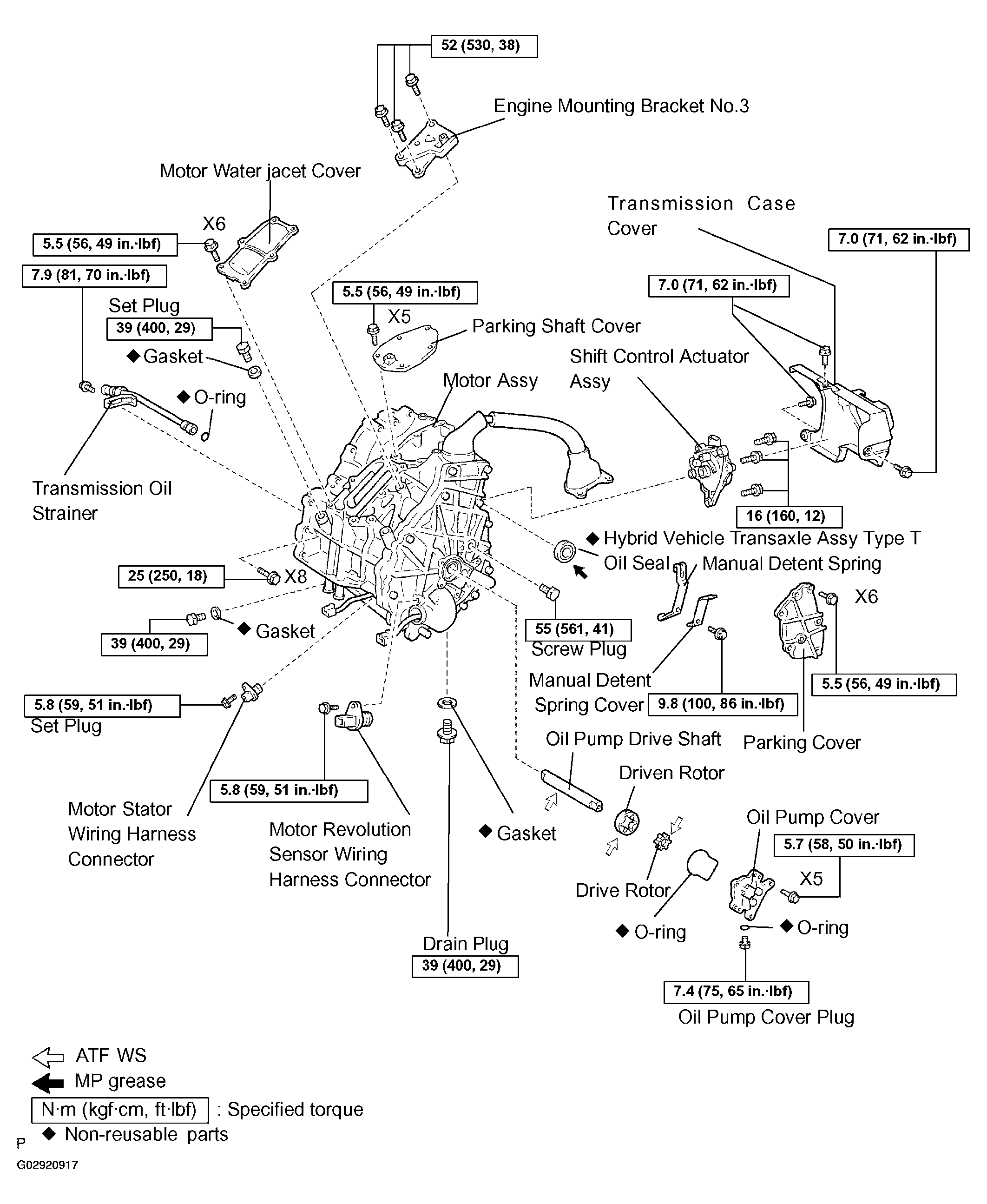

Fig 3: Hybrid Vehicle Transaxle Assy. Components Location (3 Of 3)
G02920917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
