Accelerator Pedal Rod ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR FLOOR BOARD NO. 2 (See  SERVICE PLUG GRIP  )
  2. REMOVE DECK FLOOR BOX REAR (See  SERVICE PLUG GRIP  )
  3. REMOVE REAR FLOOR BOARD NO. 3 (See  SERVICE PLUG GRIP  )
  4. DISCONNECT BATTERY NEGATIVE TERMINAL (See  SERVICE PLUG GRIP  )
  5. REMOVE ACCELERATOR PEDAL ROD ASSY
    1. Disconnect the accelerator position sensor connector.
    2. Remove the 2 bolts, then remove the accelerator pedal.

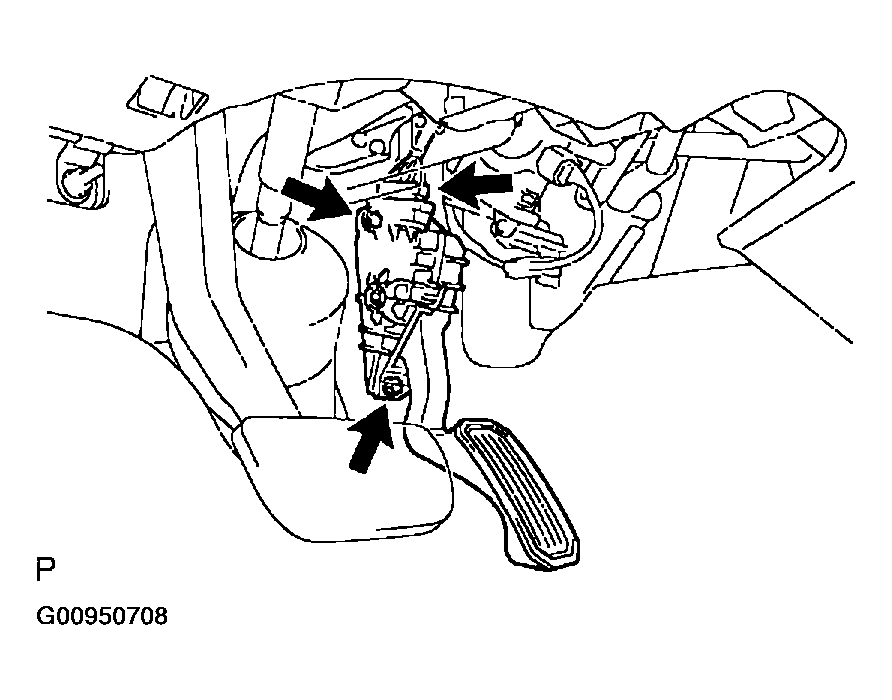

      Fig 1: Removing Accelerator Pedal Rod Assy
      G00950708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL ACCELERATOR PEDAL ROD ASSY

    Torque: 7.5 N.m (77 kgf.cm, 66 in.lbf)

  7. CONNECT BATTERY NEGATIVE TERMINAL

    Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)

  8. INSTALL REAR FLOOR BOARD NO. 3
  9. INSTALL DECK FLOOR BOX REAR
  10. INSTALL REAR FLOOR BOARD NO. 2
  11. POWER WINDOW CONTROL SYSTEM INITIALIZE (See  INITIALIZATION  )
