Battery Blower ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR FLOOR BOARD NO. 2 (See  SERVICE PLUG GRIP  )
  2. REMOVE DECK FLOOR BOX REAR (See  SERVICE PLUG GRIP  )
  3. REMOVE REAR FLOOR BOARD NO. 3 (See  SERVICE PLUG GRIP  )
  4. DISCONNECT BATTERY NEGATIVE TERMINAL (See  SERVICE PLUG GRIP  )
  5. REMOVE DECK TRIM COVER REAR (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  6. REMOVE TONNEAU COVER ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  7. REMOVE REAR SEAT CUSHION ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  8. REMOVE REAR FLOOR BOARD NO. 1 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  9. REMOVE REAR SIDE SEAT BACK FRAME RH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  10. REMOVE DECK TRIM SIDE PANEL ASSY RH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  11. REMOVE QUARTER VENT DUCT INNER NO. 2 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  12. REMOVE VENTILATOR DUCT INNER
    1. Remove the 3 clips and ventilator duct inner.

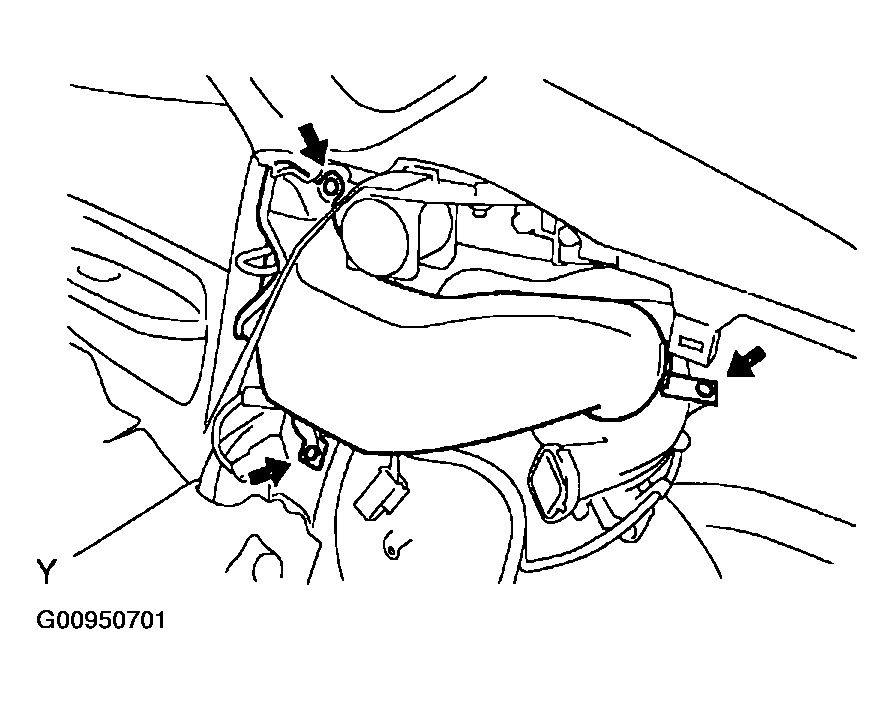

      Fig 1: Removing Ventilator Duct Inner
      G00950701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE BATTERY BLOWER ASSY
    1. Remove the 3 nuts, then disconnect the battery blower assembly from the vehicle.
    2. Remove the connector, clamp and battery blower assembly.
      Fig 2: Removing Battery Blower Assy
      G00950702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL BATTERY BLOWER ASSY
    1. Connect the connector to the battery blower assembly.
    2. Install the clamp on the battery blower assembly.
    3. Install the battery blower assembly with the 3 nuts.

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

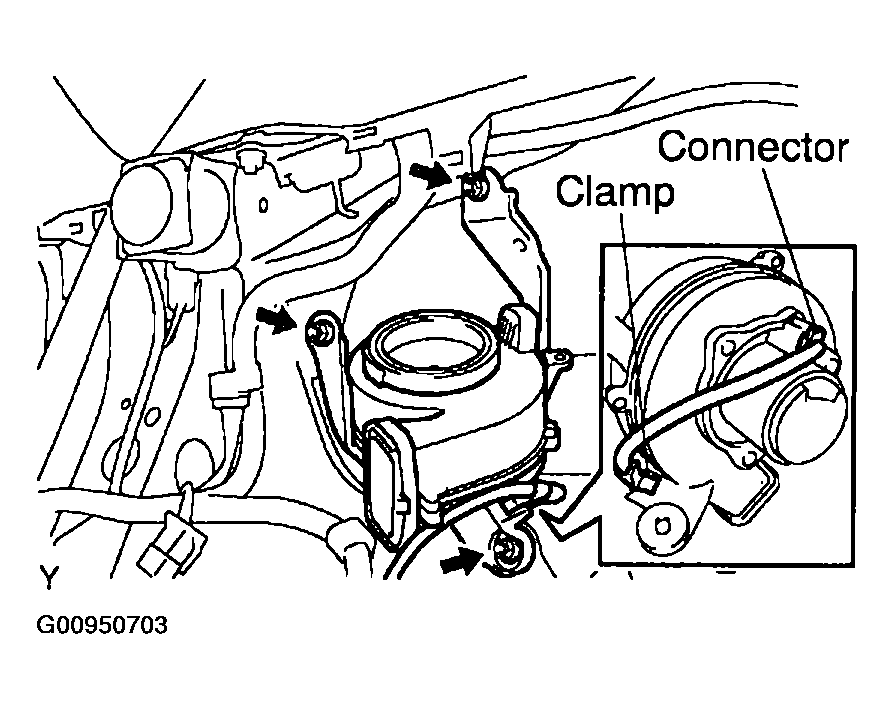

      Fig 3: Installing Battery Blower Assy
      G00950703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL VENTILATOR DUCT INNER
  16. INSTALL QUARTER VENT DUCT INNER NO. 2
  17. INSTALL DECK TRIM SIDE PANEL ASSY RH
  18. INSTALL REAR SIDE SEAT BACK FRAME RH
  19. INSTALL REAR FLOOR BOARD NO. 1
  20. INSTALL REAR SEAT CUSHION ASSY
  21. INSTALL TONNEAU COVER ASSY
  22. INSTALL DECK TRIM COVER REAR
  23. CONNECT BATTERY NEGATIVE TERMINAL

    Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)

  24. INSTALL REAR FLOOR BOARD NO. 3
  25. INSTALL DECK FLOOR BOX REAR
  26. INSTALL REAR FLOOR BOARD NO. 2
  27. POWER WINDOW CONTROL SYSTEM INITIALIZE (See  INITIALIZATION  )
