W/Converter Inverter ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

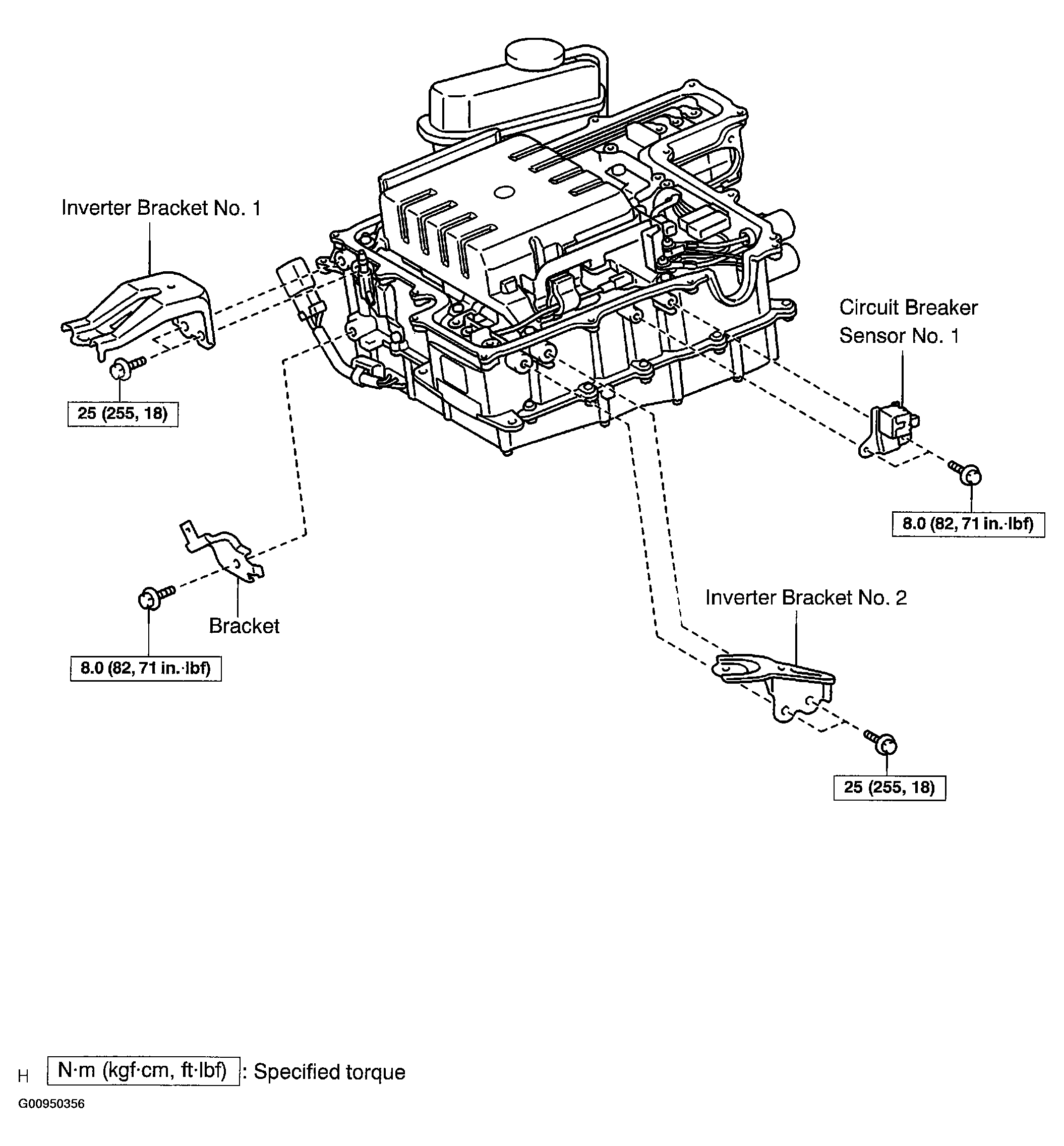

Fig 1: Identifying W/Converter Inverter Assy Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

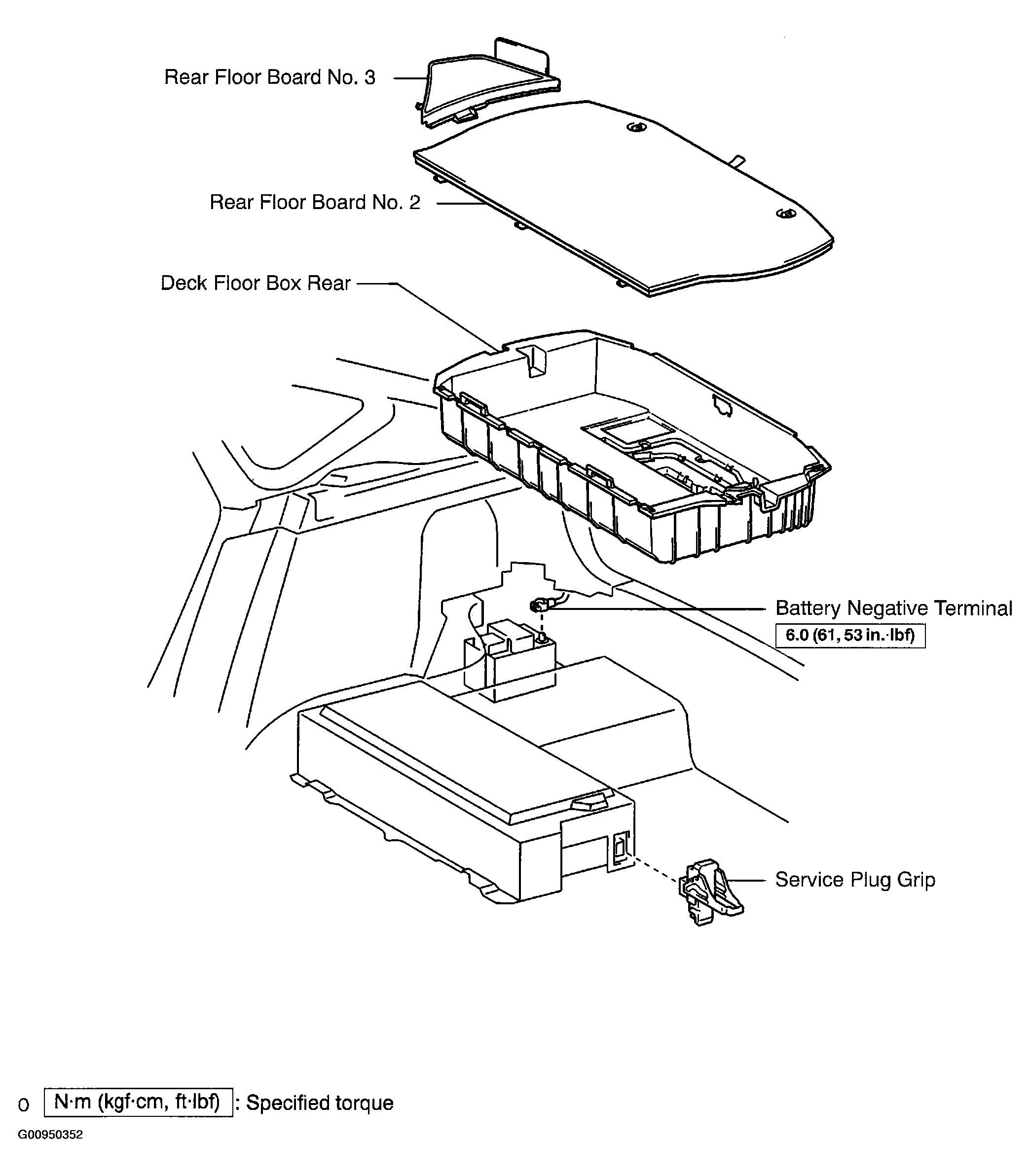

Fig 2: Identifying W/Converter Inverter Assy Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

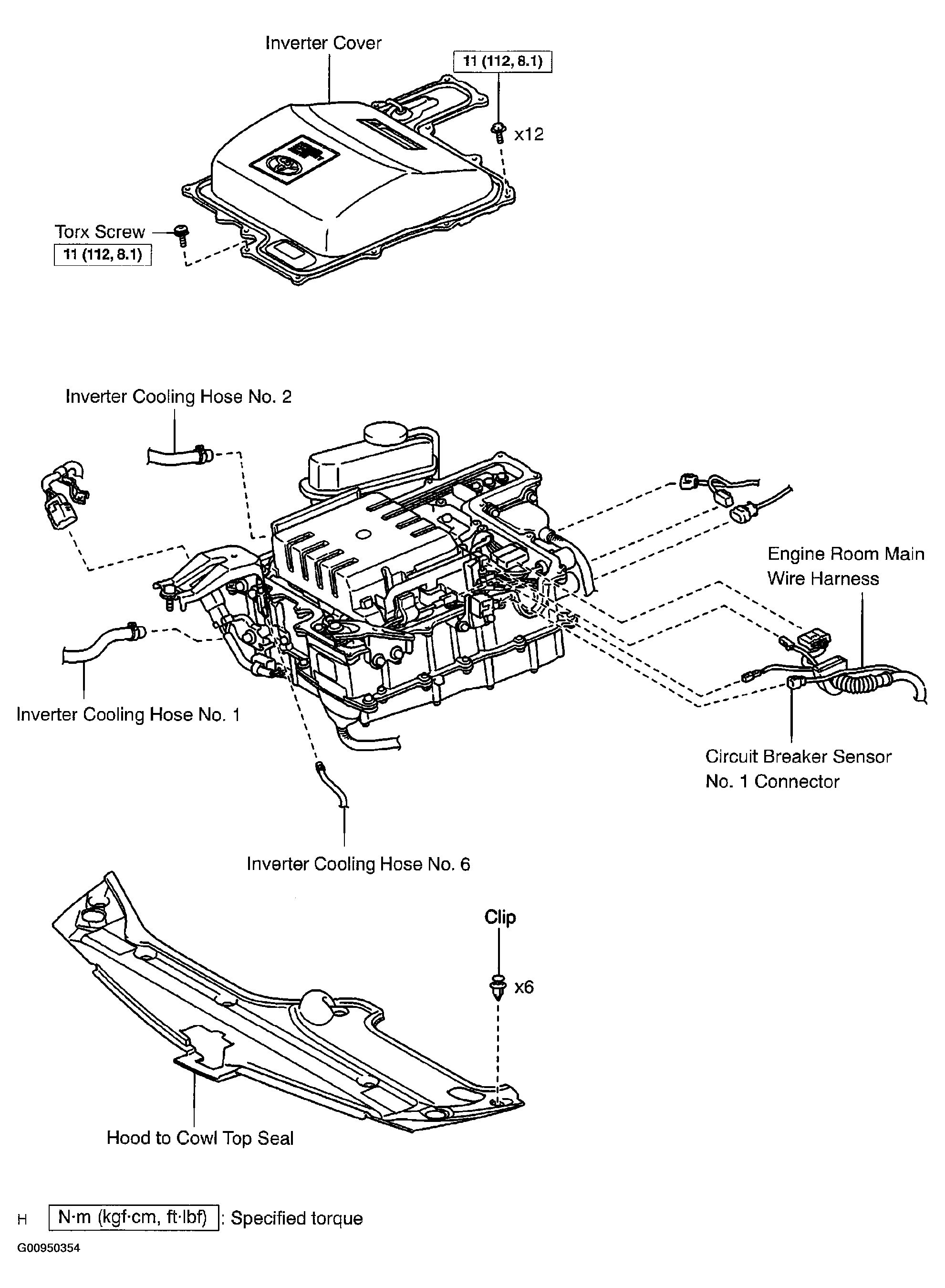

Fig 3: Identifying W/Converter Inverter Assy Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying W/Converter Inverter Assy Components (4 Of 5)

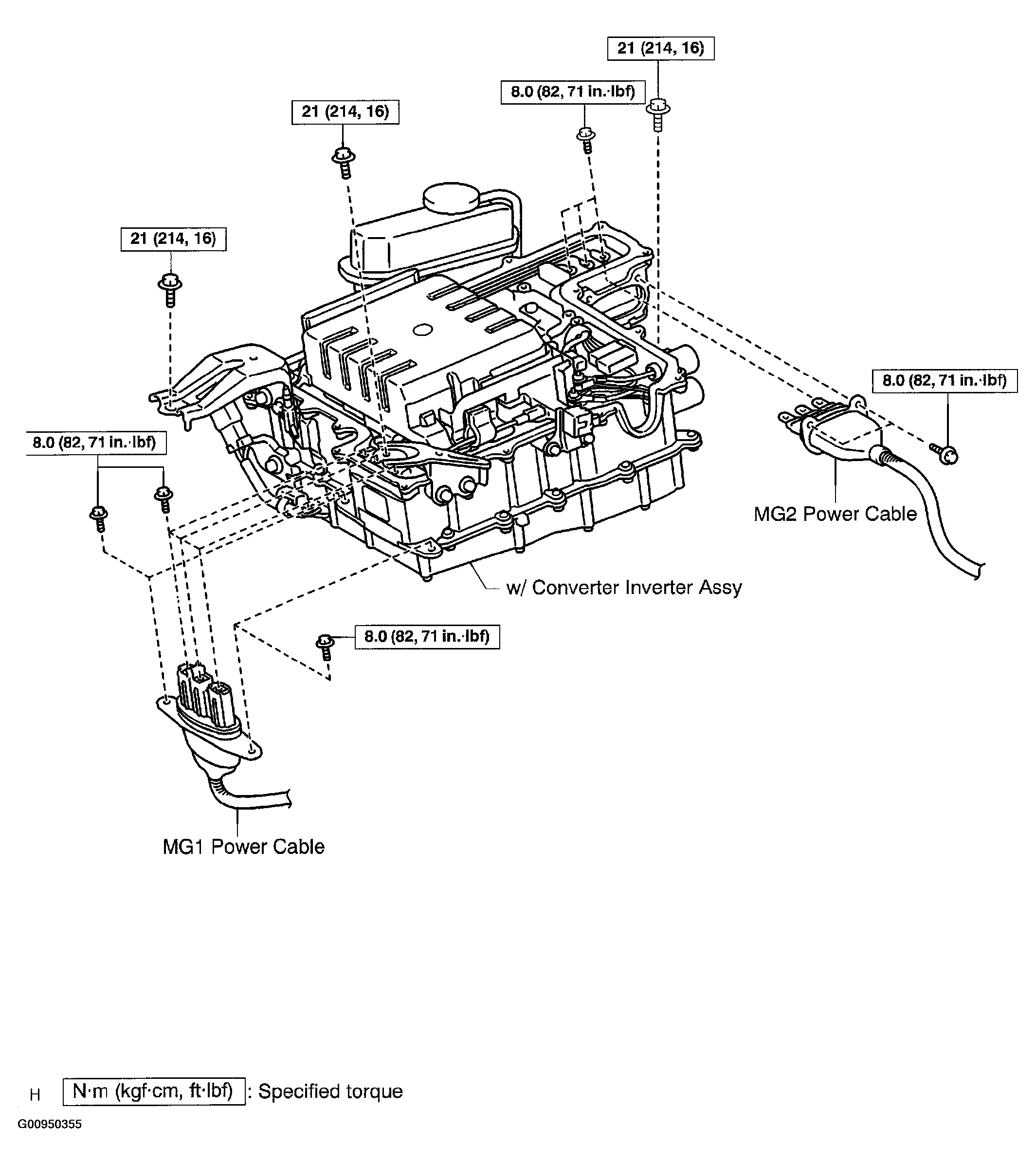

Fig 5: Identifying W/Converter Inverter Assy Components (5 Of 5)
