Section 203 (YAWRATE Sensor): Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not separate the sensor from the bracket.

REMOVE CONSOLE PANEL UPPER REAR (see REPLACEMENT ) in INSTRUMENT PANEL/METER article.
Apply parking brake:
Set the shift lever in the N position.
Turn the shift lever knob sub-assy counterclockwise and remove the shift lever knob sub-assy.
REMOVE CONSOLE PANEL UPPER REAR

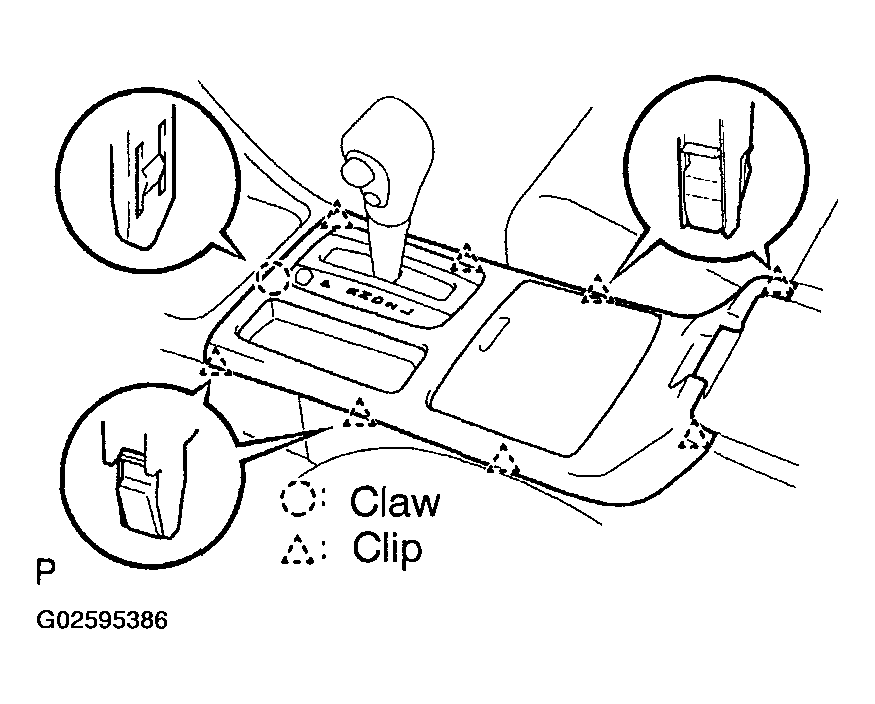

Fig 1: Identifying Console Panel Upper Rear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

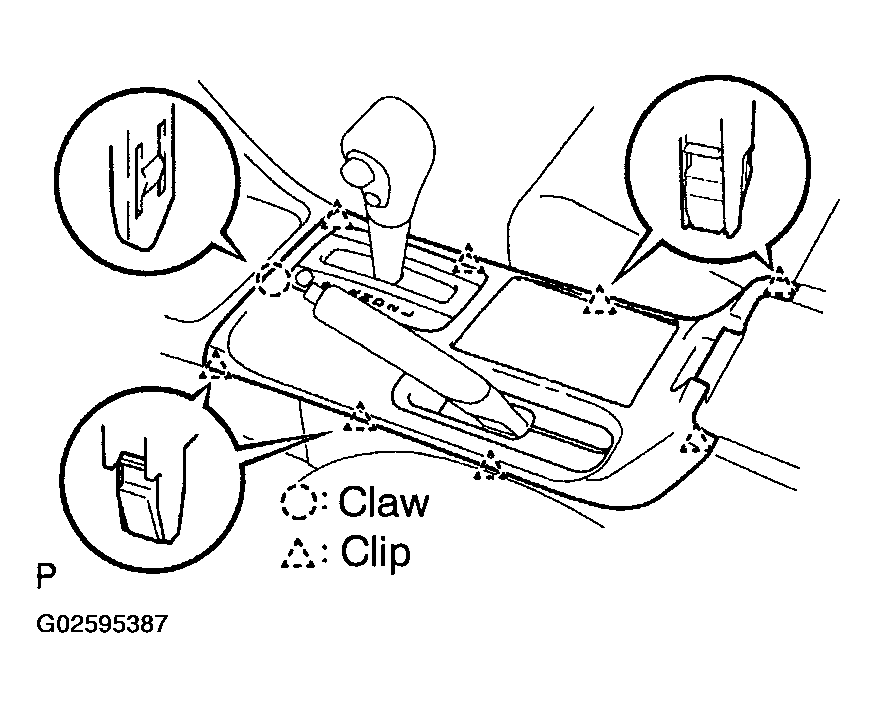

Fig 2: Identifying Console Panel Upper Rear With Hand Parking Brake
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RR CONSOLE BOX (see REPLACEMENT ) in INSTRUMENT PANEL/METER article.
1. TMC made:
  Remove the 2 bolts and 2 screws.
2. TMMK made:
  Remove the 2 bolts < C > and 2 screws < H >.
3. Disengage the 2 claws and remove the RR console box.

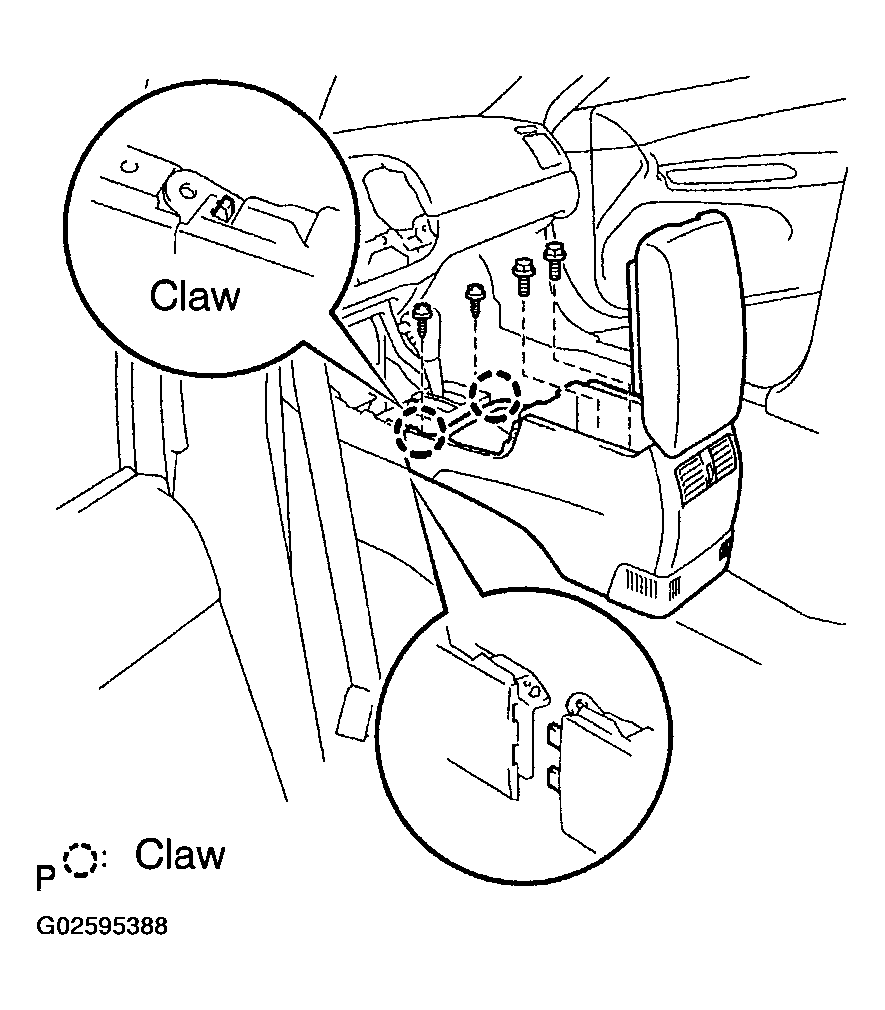

  Fig 3: Removing RR Console Box
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE YAWRATE SENSOR
1. Disconnect the yawrate sensor connector.
2. Remove the 2 bolts and yawrate sensor.

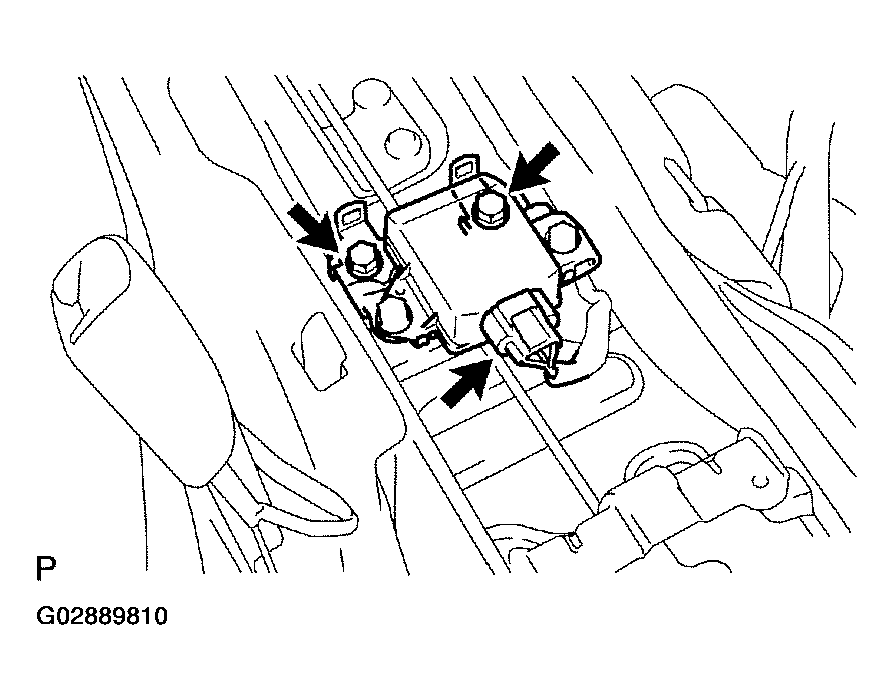

  Fig 4: Removing Bolts And Yawrate Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL YAWRATE SENSOR
1. Install the yawrate sensor with the 2 bolts.
  Torque: 12.5 N.m (127 kgf.cm, 9 ft.lbf)
2. Connect the yawrate sensor connector.

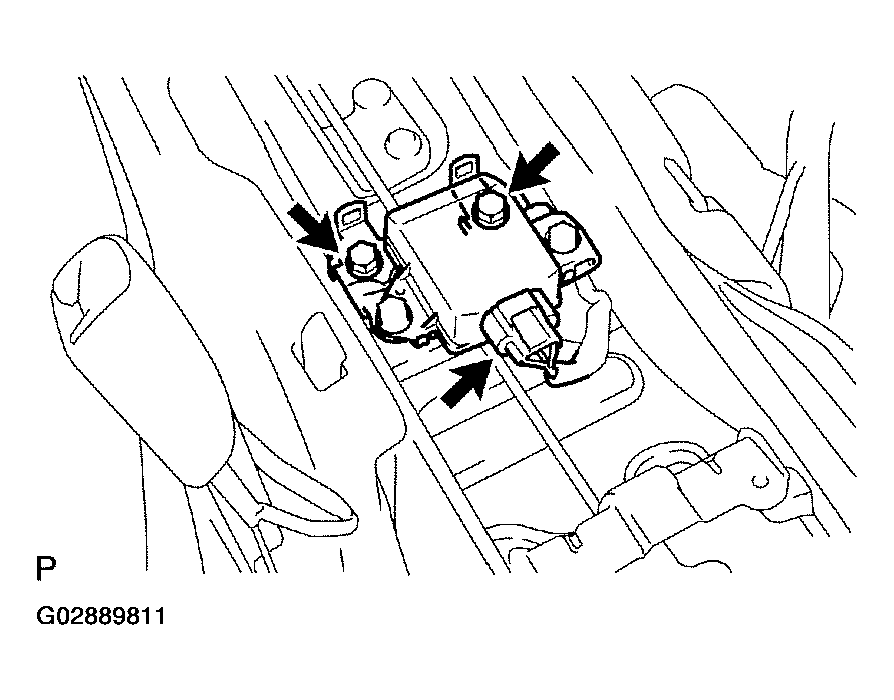

  Fig 5: Connecting Yawrate Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RR CONSOLE BOX (Reverse removal)
INSTALL CONSOLE PANEL UPPER REAR (Reverse removal)
PERFORM YAWRATE SENSOR ZERO POINT CALIBRATION (See PRE-CHECK )
