Center Stop Lamp Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER STOP LAMP ASSY (W/O REAR SPOILER LED)
1. Pull out the center stop light assy shown in the illustration.
2. Disconnect connector.

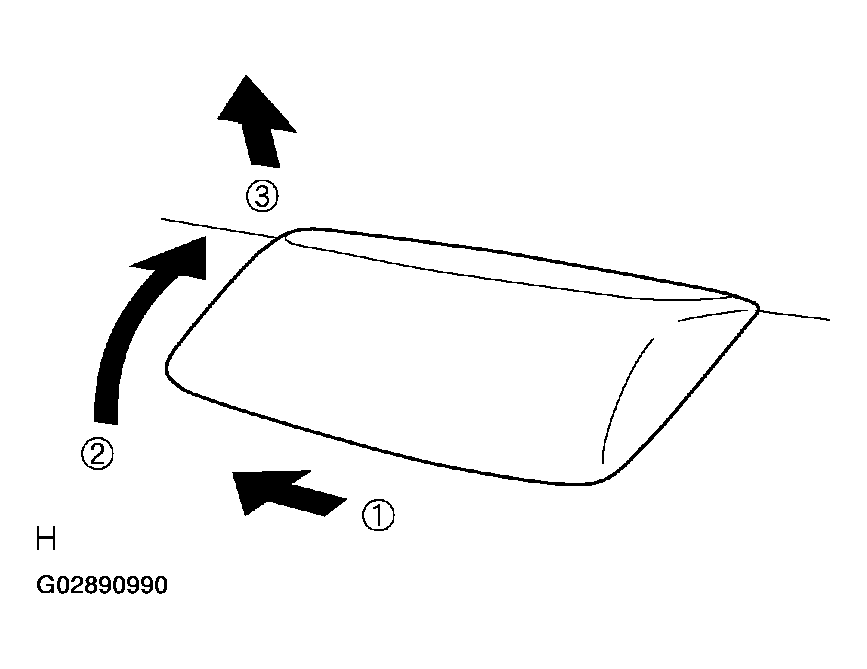

  Fig 1: Removing Center Stop Lamp Assy (W/O Rear Spoiler Led)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT DOOR COVER (W/ REAR SPOILER LED) (See REAR SPOILER SUB-ASSY REPLACEMENT )
REMOVE REAR SPOILER SUB-ASSY (W/ REAR SPOILER LED) (See REAR SPOILER SUB-ASSY )
REMOVE CENTER STOP LAMP ASSY (W/ REAR SPOILER LED)
1. Remove the 2 screws and center stop light assy.

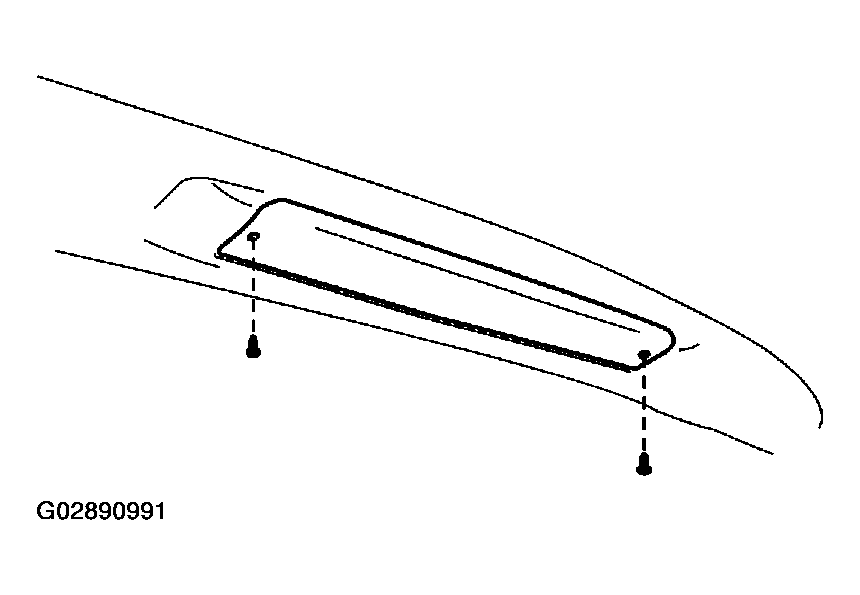

  Fig 2: Removing Luggage Compartment Door Cover (W/ Rear Spoiler Led)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SPOILER SUB-ASSY (W/ REAR SPOILER LED) (See REAR SPOILER SUB-ASSY )
