Fog Lamp Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ENGINE UNDER COVER LH (See REPLACEMENT )
REMOVE FOG LAMP ASSY LH
1. Detach clip and pull out the fog light assy LH forward.

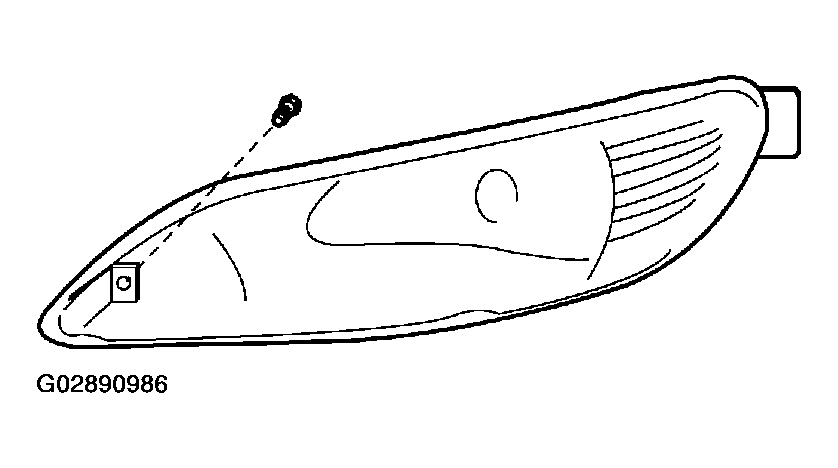

  Fig 1: Removing Fog Lamp Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
