License Plate Lamp Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LUGGAGE COMPARTMENT DOOR COVER (See LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUT )
REMOVE LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUTSIDE (See LUGGAGE COMPARTMENT DOOR GARNISH SUB-ASSY OUT )
REMOVE LICENSE PLATE LAMP ASSY
1. Pull the license plate light assy to the side of vehicle as shown, and release the claw, then disconnect the connector.

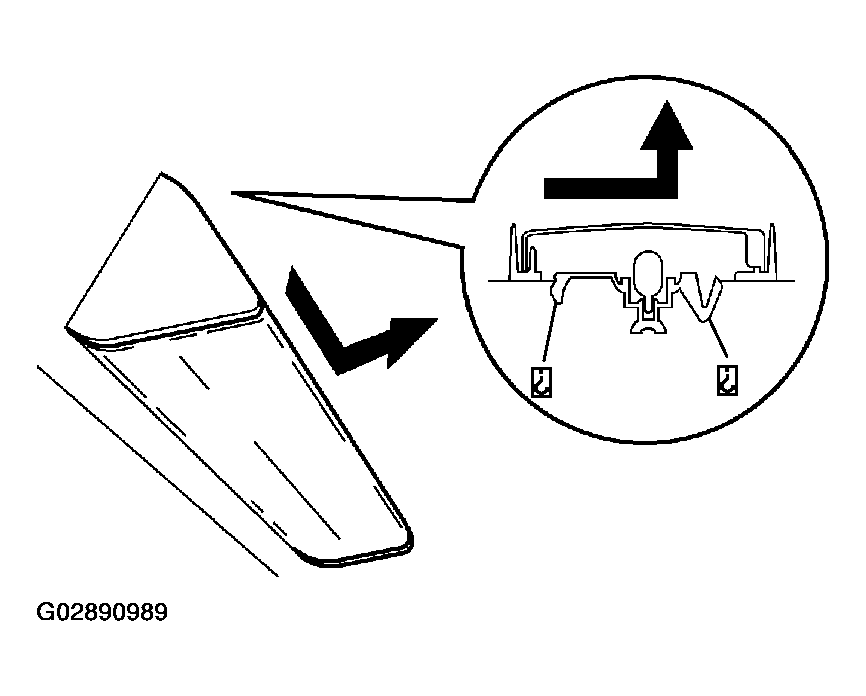

  Fig 1: Removing License Plate Lamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
