On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TURN SIGNAL FLASHER CIRCUIT

Measure voltage between terminal as shown in the chart below.

Fig 1: Identifying Turn Signal Flasher Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEST CONDITIONS

Tester connection	Condition	Specified condition
7 - Ground	Constant	Continuity
1 - Ground	Turn igniton switch ON	Battery positive voltage
1 - Ground	Turn igniton switch OFF	No voltage
4 - Ground	Constant	Battery positive voltage

Connect the connector to turn signal flasher and inspect the wire harness side connector from the back side as shown in the chart below.

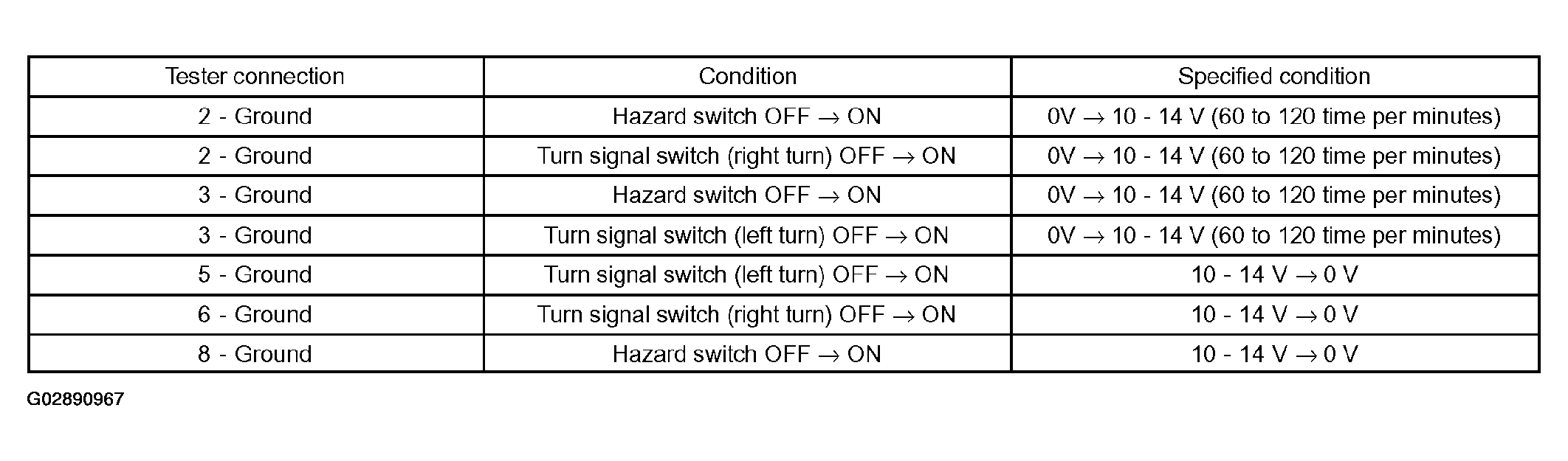

Fig 2: Tester Connection Condition Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
