Rear Combination Lamp Assembly: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR COMBINATION LAMP ASSY LH
1. Remove the service hole cover.
2. Remove the 3 nuts and disconnect the connector of rear combination light.
3. Pull the rear combination light assy to the back of the vehicle, and remove the rear combination light assy.

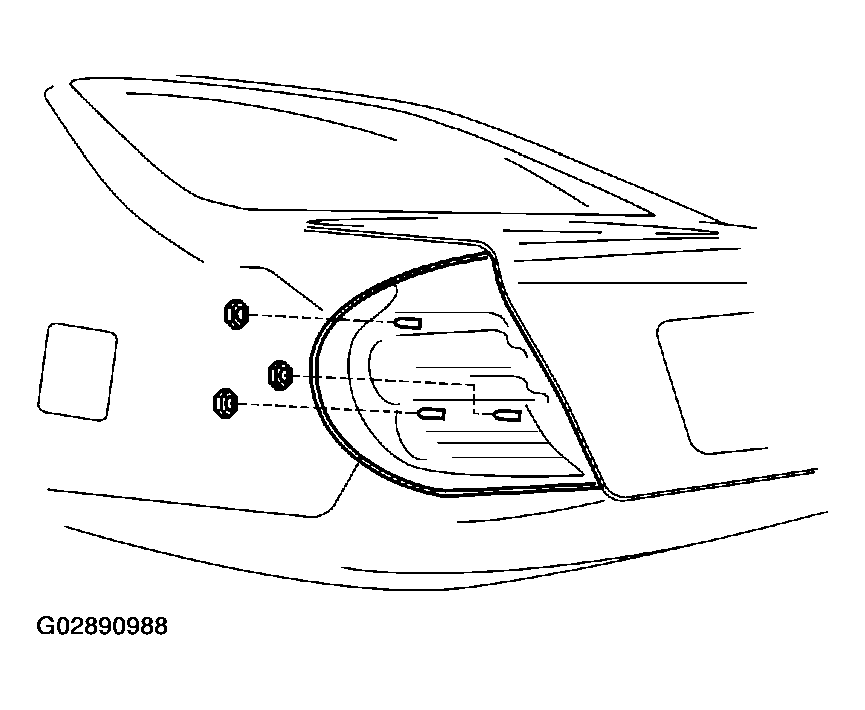

  Fig 1: Removing Rear Combination Lamp Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
