Vehicle Identification And Serial Numbers

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in Fig 1 and Fig 2.

      A: Vehicle Identification Number Plate

      B: Certification Label

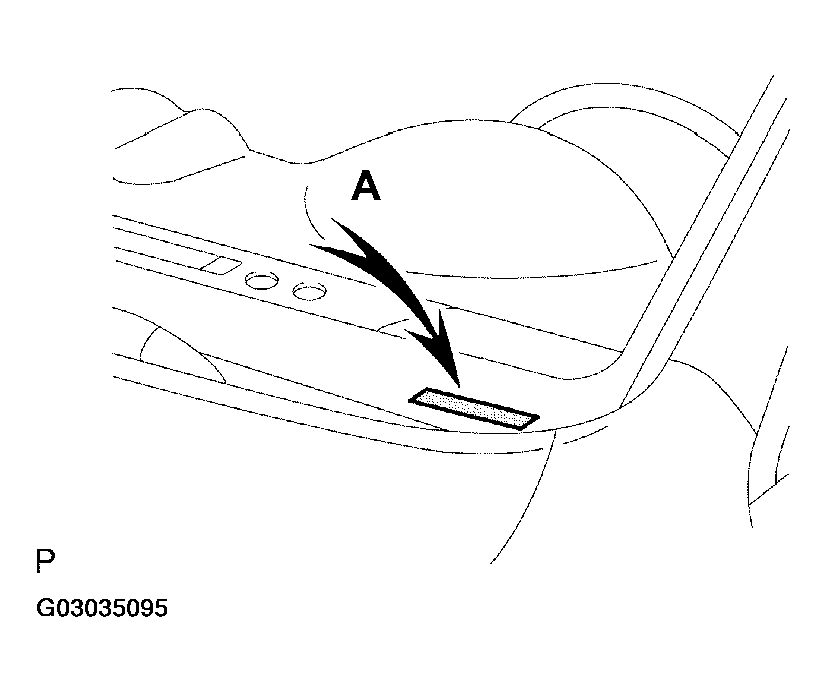

    Fig 1: Identifying Vehicle Identification Number Plate
    G03035095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

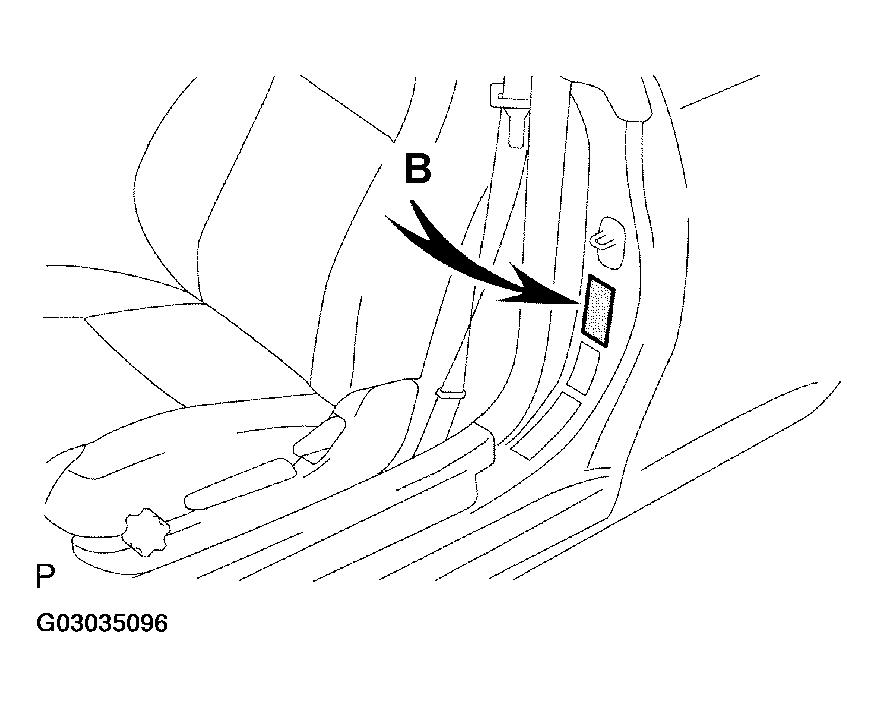

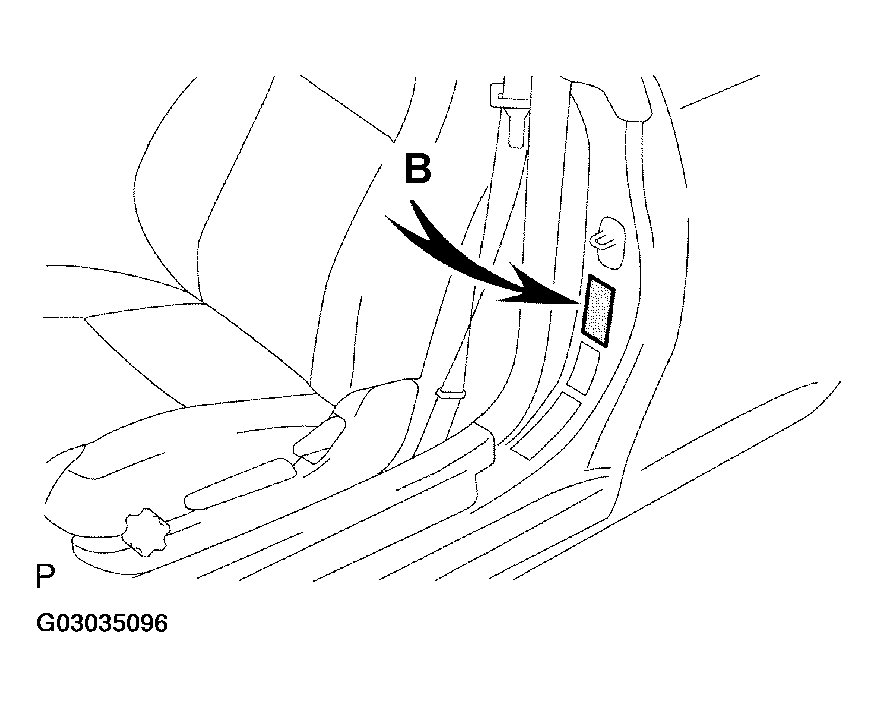

    Fig 2: Identifying Certification Label
    G03035096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in Fig 3 .

      A: 3MZ-FE

      B: 2AZ-FE

      C: U151E, U241E

      D: E351

      E: U151E, U241E

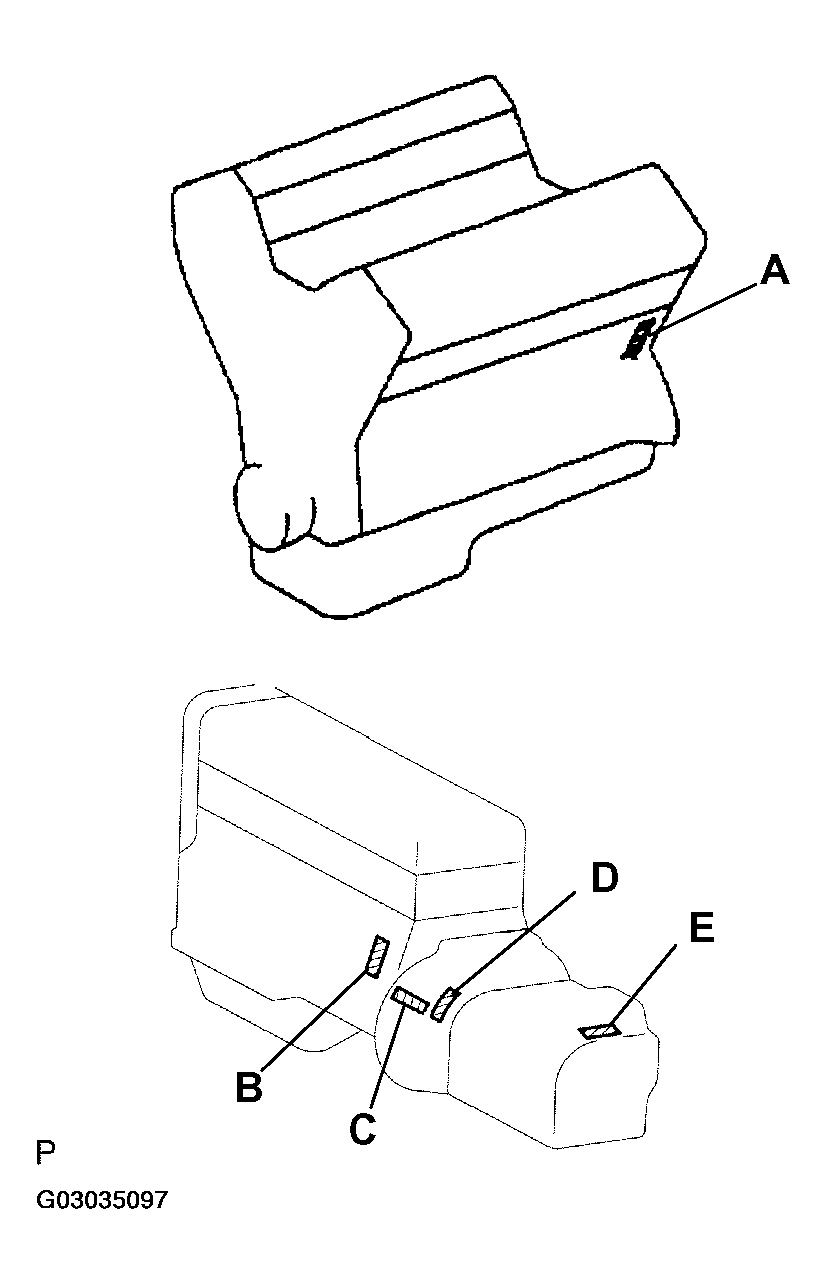

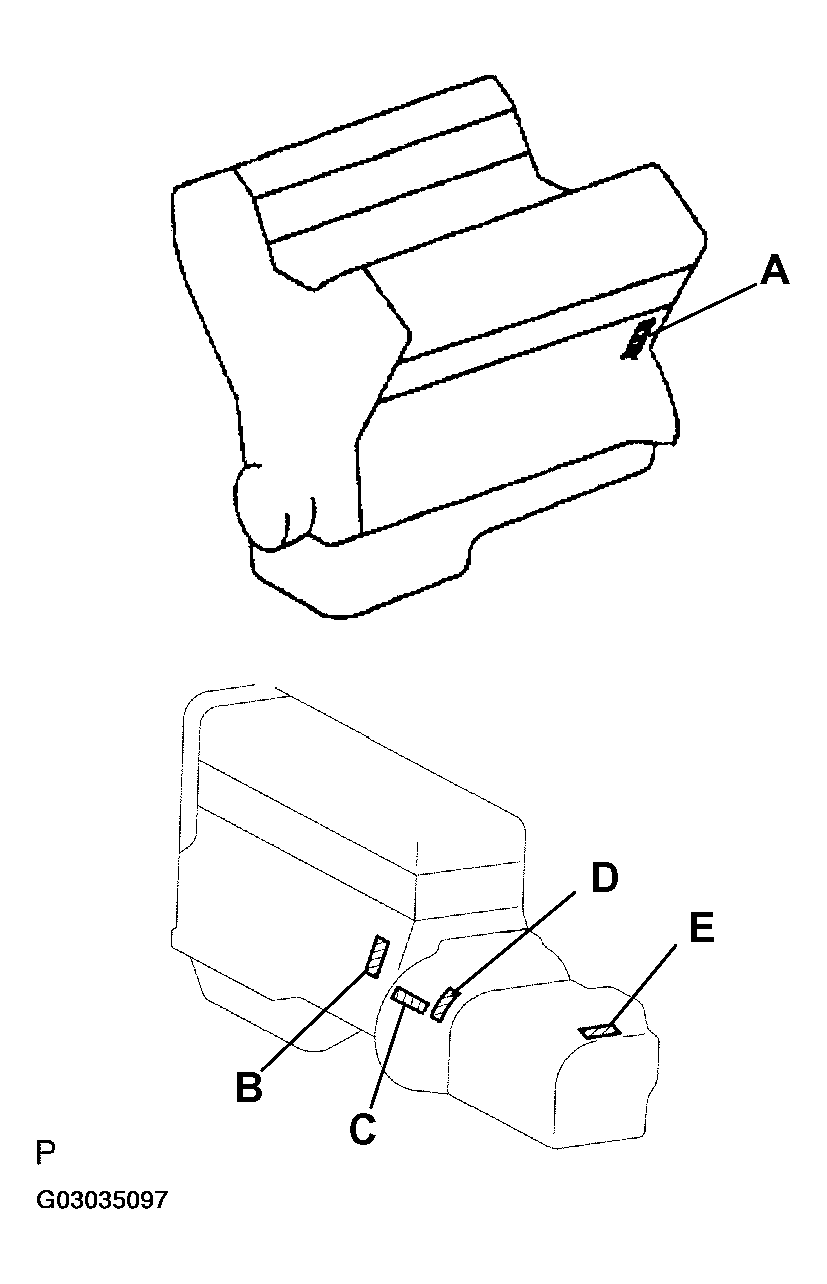

    Fig 3: Identifying Engine Serial Number & Transaxle Serial Number
    G03035097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
