INSPECT INTAKE AIR CONTROL SYSTEM

Using a 3-way connector, connect vacuum gauge to the actuator hose.

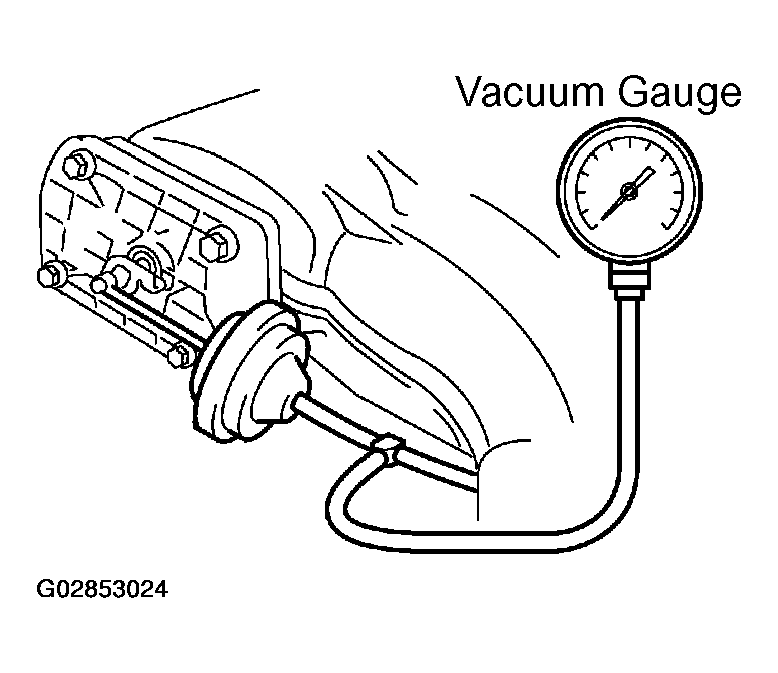

Fig 1: Connecting Vacuum Gauge To Actuator Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Connect the hand-held tester to the DLC3.
Start the engine.
On the hand-held tester, enter the ACTIVE TEST mode.
Standard:

SWITCH CONDITION

Switch Condition	Vacuum
VSV ON	Approx. 27.6 kPa (200 mmHg, 7.9 in.Hg)
VSV OFF	0 kPa(0 mmHg, 0 in.Hg)
