System Diagram

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Intake air amount is determined by the ECM based on signals from various sensors.

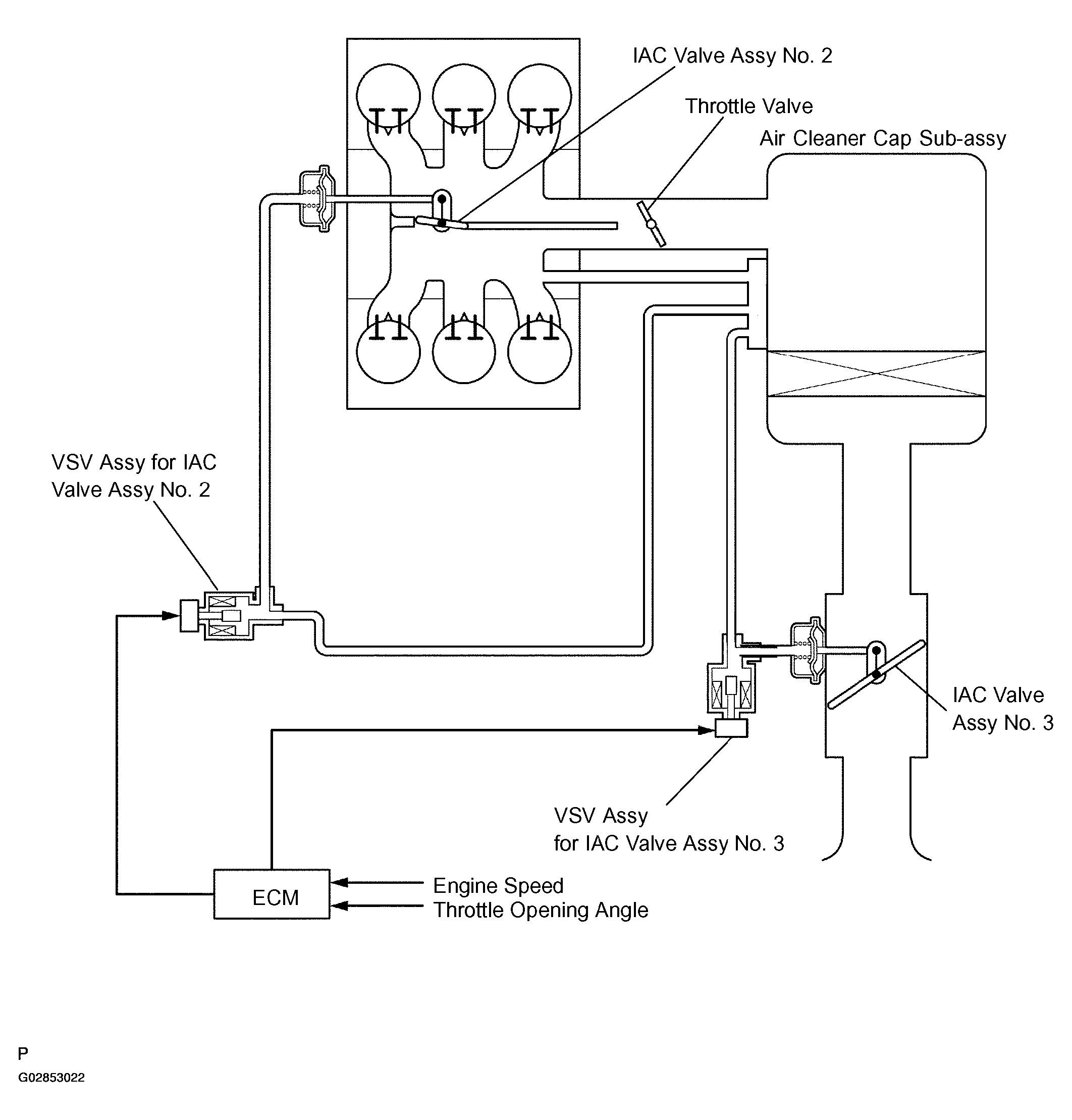

Fig 1: Intake System Diagram

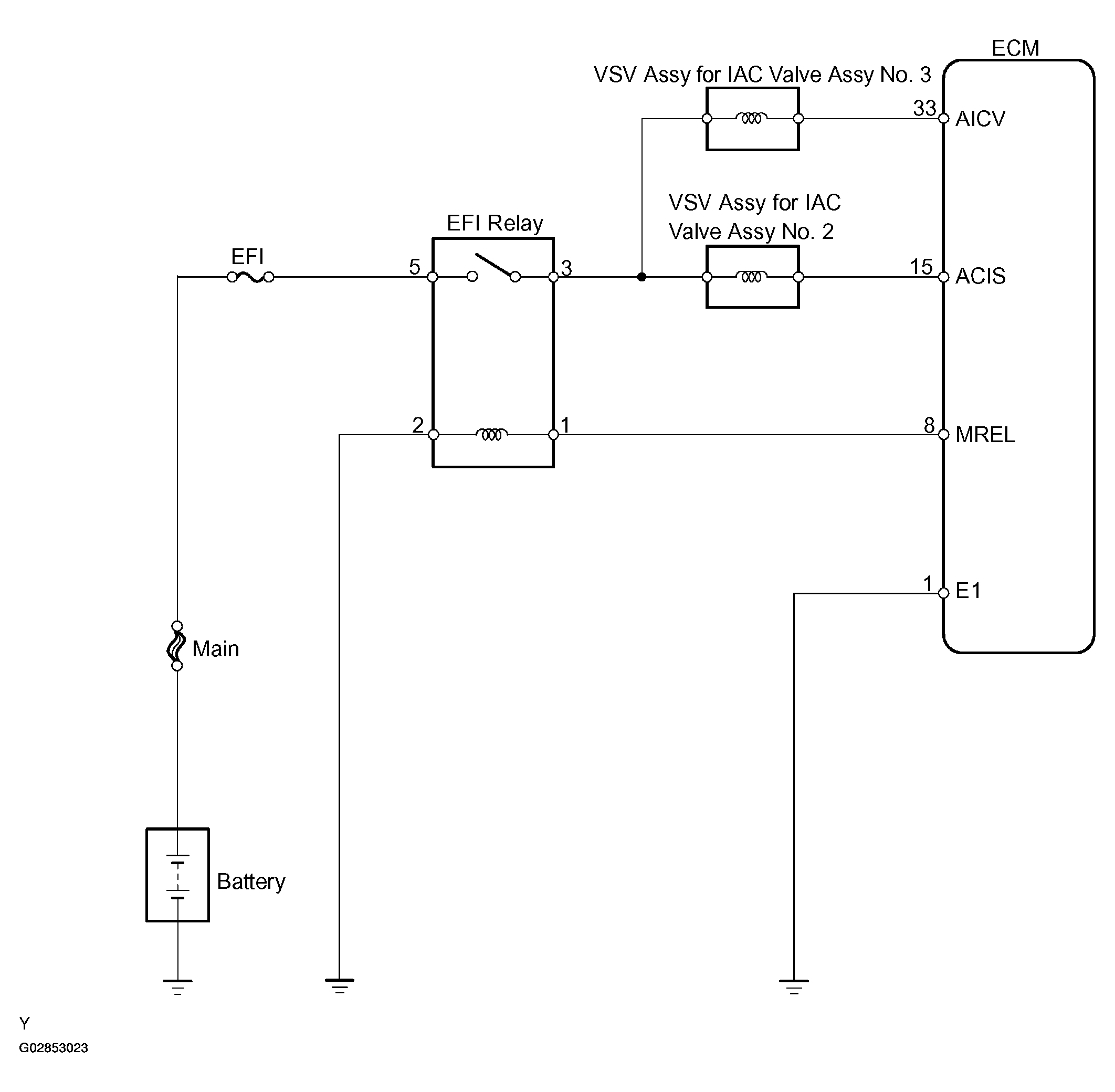

Fig 2: Wiring Diagram - Intake Air Control System
