Section 383 (Front Wheel Alignment): Adjustment

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT TIRE (SEE WHEEL AND TIRE SYSTEM )

MEASURE VEHICLE HEIGHT

Vehicle height:

2AZ-FE Except SPORT:

2AZ-FE EXCEPT SPORT REFERENCE

Front (A - B)	121 mm (4.76 in.)
Rear (D - C)	55 mm (2.17 in.)

2AZ-FE SPORT:

2AZ-FE SPORT REFERENCE

Front (A - B)	123 mm (4.84 in.)
Rear (D - C)	55 mm (2.17 in.)

3MZ-FE Except SPORT 17 inch:

3MZ-FE EXCEPT SPORT 17 INCH REFERENCE

Front (A - B)	124 mm (4.88 in.)
Rear (D - C)	57 mm (2.24 in.)

3MZ-FE Except SPORT 16 inch:

3MZ-FE EXCEPT SPORT 16 INCH REFERENCE

Front (A - B)	124 mm (4.88 in.)
Rear (D - C)	56 mm (2.20 in.)

3MZ-FE SPORT:

3MZ-FE SPORT REFERENCE

Front (A - B)	125 mm (4.92 in.)
Rear (D - C)	58 mm (2.28 in.)

Measuring points:

Ground clearance of front wheel center
Ground clearance of lower suspension arm No. 2 set bolt head center
Ground clearance of strut rod set bolt center
Ground clearance of rear wheel center

NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

HINT:

Bounce the vehicle at the corners up and down to stabilize the suspension and inspect the vehicle height.

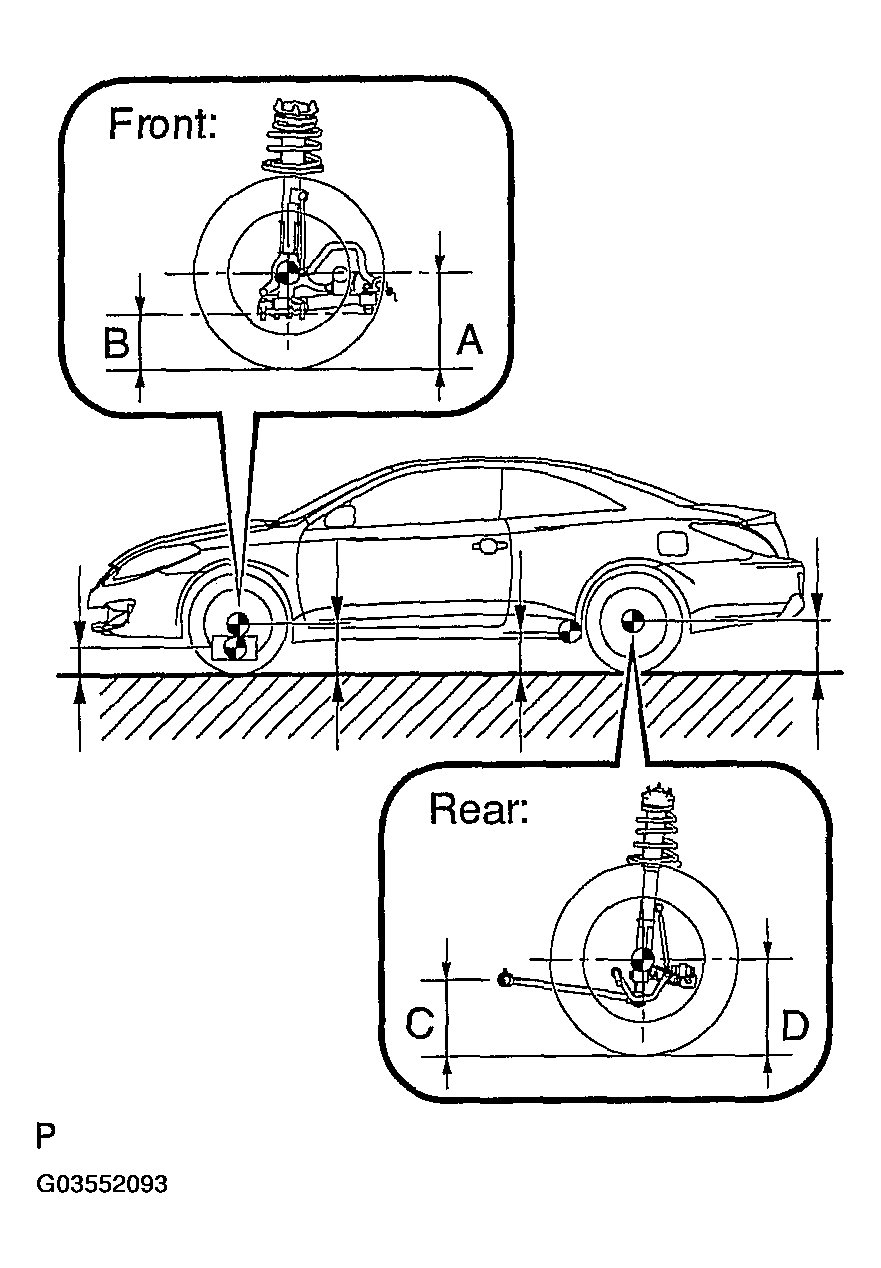

Fig 1: Measuring Vehicle Height

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT TOE-IN
Toe-in:
TOE-IN REFERENCE

Toe-in (total) A + B:0° +/- 12' (0° +/- 0.2°)
C - D: 0 +/- 2 mm (0 +/- 0.08 in.)

HINT:
- Measure "C - D" only when "A + B" cannot be measured.
- If toe-in is not within the specified range, adjust it at the rack ends.

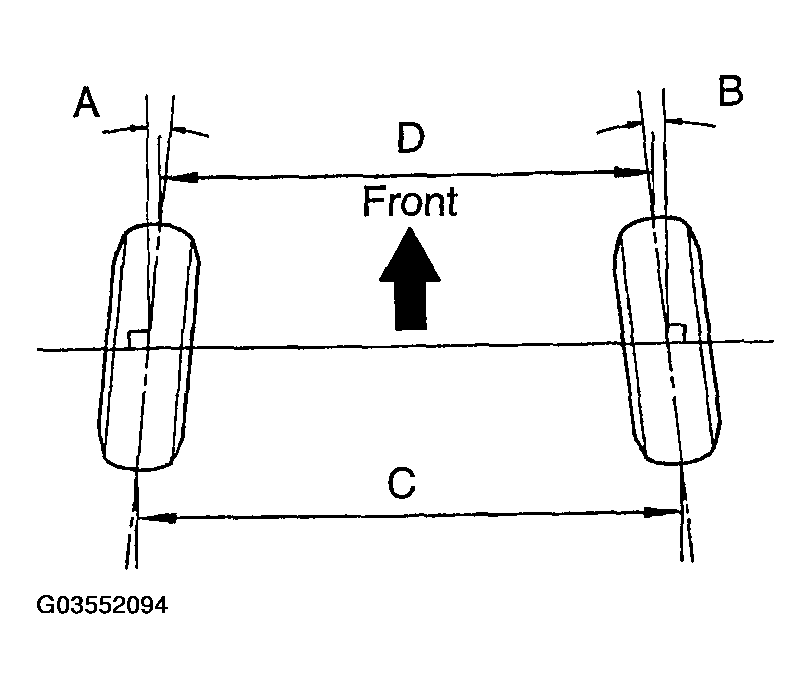

  Fig 2: Inspecting Toe-In
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST TOE-IN
1. Remove the rack boot set clips.
2. Loosen the tie rod end lock nuts.
3. Turn the right and left rack ends by an equal amount to adjust toe-in.
  HINT:

  Try to adjust toe-in to the center of the specified range.
4. Make sure that the lengths of the right and left rack ends are the same.
5. Torque the tie rod end lock nuts.
  Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)
6. Place the boots on the seats and install the clips.
  HINT:

  Make sure that the boots are not twisted.
7. Perform VSC system calibration (SEE DIAGNOSTIC TROUBLE CODE CHART )

  Fig 3: Adjusting Toe-In
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT WHEEL ANGLE

Turn the steering wheel fully left and right and measure the turning angle.

Wheel turning angle:

2AZ-FE Except SPORT:

2AZ-FE EXCEPT SPORT REFERENCE

Inside wheel	36°49' +/- 2° (36.82° +/- 2°)
Outside wheel: Reference	32° 10' (32.17°)

2AZ-FE SPORT:

2AZ-FE SPORT REFERENCE

Inside wheel	36°45' +/- 2° (36.75° +/- 2°)
Outside wheel: Reference	32°08' (32.13°)

3MZ-FE Except SPORT:

3MZ-FE EXCEPT SPORT REFERENCE

Inside wheel	36°43' +/- 2° (36.72° +/- 2°)
Outside wheel: Reference	32°07' (32.12°)

3MZ-FE SPORT:

3MZ-FE SPORT REFERENCE

Inside wheel	36°41' +/- 2° (36.68° +/- 2°)
Outside wheel: Reference	32°06' (32.10°)

If the right and left inside wheel angles differ from the specified range, check and adjust the right and left rack end lengths.

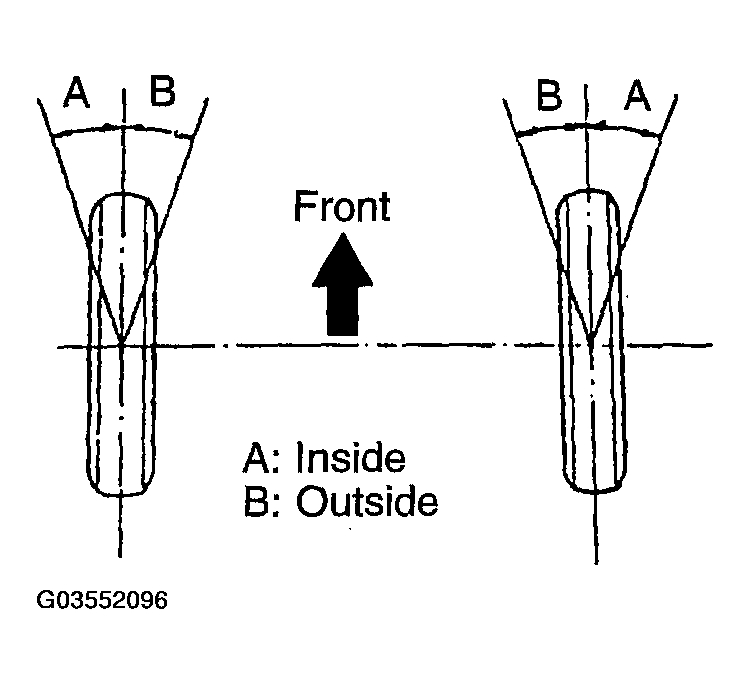

Fig 4: Inspecting Wheel Angle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION

Put the front wheel on the center of the alignment tester.
Install the camber-caster-kingpin gauge at the center of the axle hub or drive shaft.
Inspect the camber, caster and steering axis inclination.

Camber, caster and steering axis inclination:

2AZ-FE Except SPORT:

2AZ-FE EXCEPT SPORT REFERENCE

Camber	Right-left error	-0°44' +/- 45' (-0.73° +/- 0.75°) 45'(0.75°) or less
Caster	Right-left error	2°54' +/- 45' (2.90° +/- 0.75°) 45' (0.75+/-) or less
Steering axis inclination	Right-left error	11°28' +/- 45' (11.47° +/- 0.75°) 45'(0.75°) or less

2AZ-FE SPORT:

2AZ-FE SPORT REFERENCE

Camber	Right-left error	-0°46' +/- 45' (-0.77° +/- 0.75°) 45'(0.75°) or less
Caster	Right-left error	2°56' +/- 45' (2.93° +/- 0.75°) 45' (0.75°) or less
Steering axis inclination	Right-left error	11°30' +/- 45' (11.50° +/- 0.75°) 45'(0.75°) or less

3MZ-FE Except SPORT:

3MZ-FE EXCEPT SPORT REFERENCE

Camber	Right-left error	-0°45' +/- 45' (-0.75° +/- 0.75°) 45' (0.75°) or less
Caster	Right-left error	2°50' +/- 45' (2.83° +/- 0.75°) 45' (0.75°) or less
Steering axis inclination	Right-left error	11°31' +/- 45' (11.52° +/- 0.75°) 45'(0.75°) or less

3MZ-FE SPORT:

3MZ-FE SPORT REFERENCE

Camber	Right-left error	-0°46' +/- 45' (-0.77° +/- 0.75°) 45' (0.75°) or less
Caster	Right-left error	2°53' +/- 45' (2.88° +/- 0.75°) 45' (0.75°) or less
Steering axis inclination	Right-left error	11°33' +/- 45' (11.55° +/- 0.75°) 45' (0.75°) or less

Check the suspension parts for damaged and/or worn out parts if the caster and steering axis inclination are not within the specified range after the camber has been correctly adjusted.

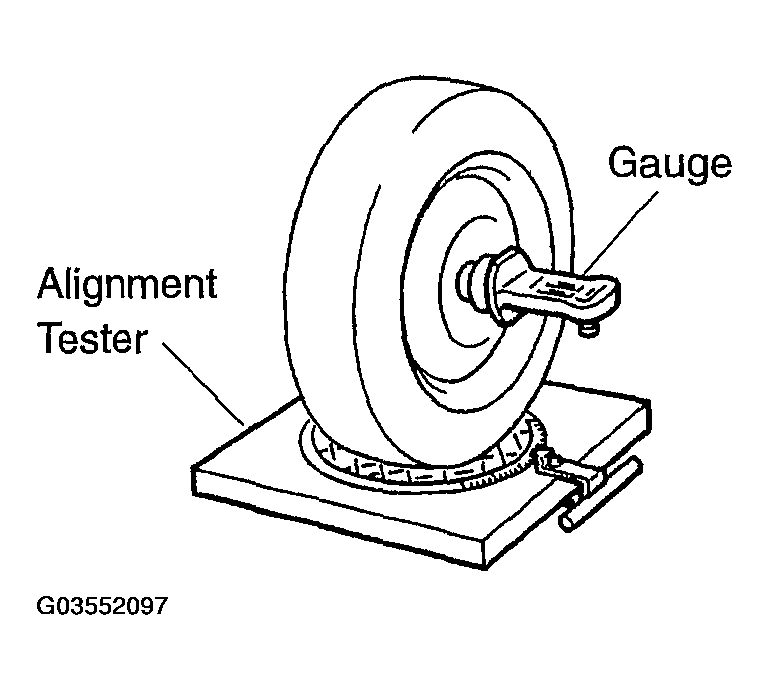

Fig 5: Putting Front Wheel On Center Of Alignment Tester

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ADJUST CAMBER

NOTE: Inspect toe-in after the camber has been adjusted.

Remove the front wheel.
Remove the 2 nuts on the lower side of the shock absorber.
Clean the installation surfaces of the shock absorber and the steering knuckle.
Temporarily install the 2 nuts.

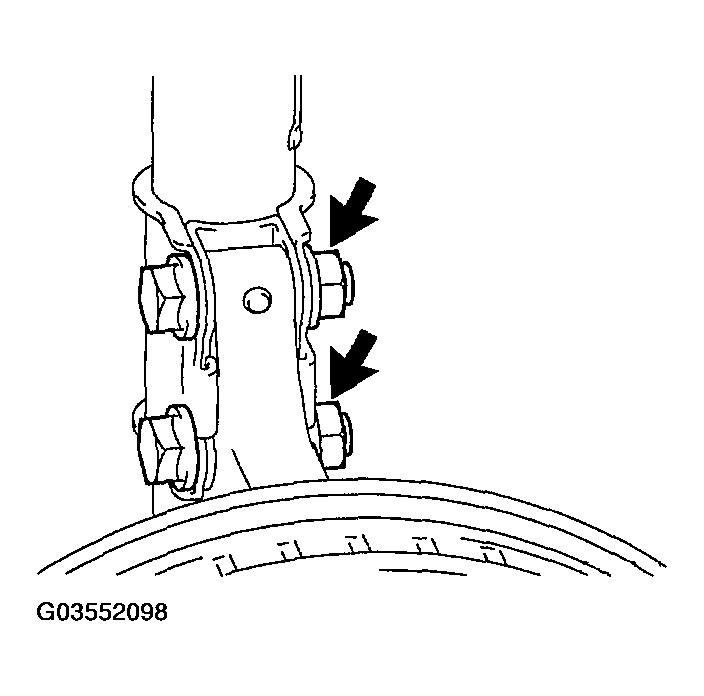

Fig 6: Installing Shock Absorber & Steering Knuckle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Full push or pull the front axle hub in the direction of the required adjustment.
Tighten the nuts.
Torque: 210 N.m (2,140 kgf.cm, 155 ft.lbf)

NOTE: Keep the bolts from rotating and torque the nuts when installing the nuts.
Install the front wheel.
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

Check the camber.

If the measured value is not within the specification, calculate the required adjustment amount using the formula below.

(Camber adjustment amount) = Specified range medium - measured value

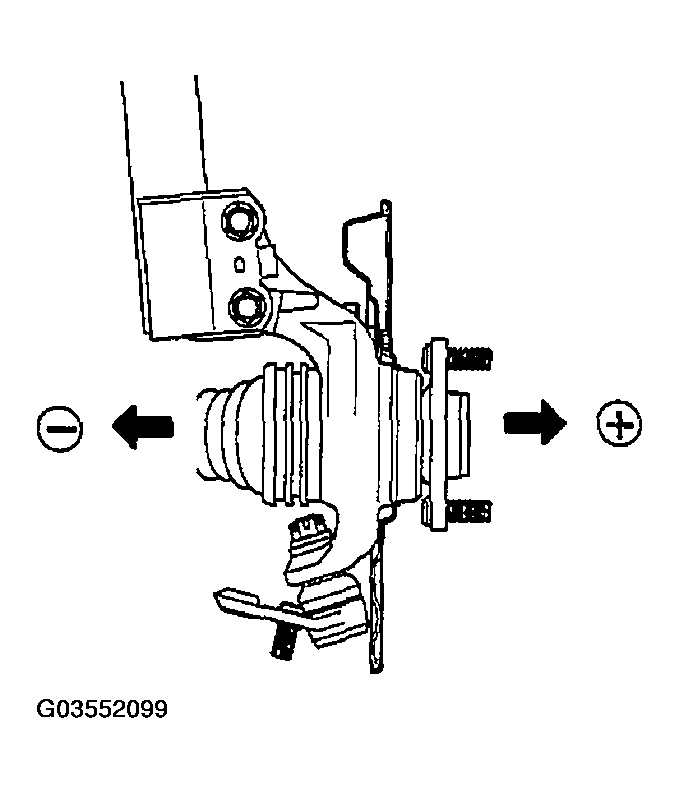

Fig 7: Pushing Or Pulling Front Axle Hub

Check installed bolts combination. Select appropriate bolts from the table below to adjust the camber to within the specified range.

CAMBER ADJUSTING REFERENCE

Move the axle toward (+) in step e)	Refer to 2AZ-FE EXCEPT SPORT REFERENCE (Move the axle toward positive side)
Move the axle toward (-) in step e)	Refer to 2AZ-FE SPORT REFERENCE (Move the axle toward negative side)

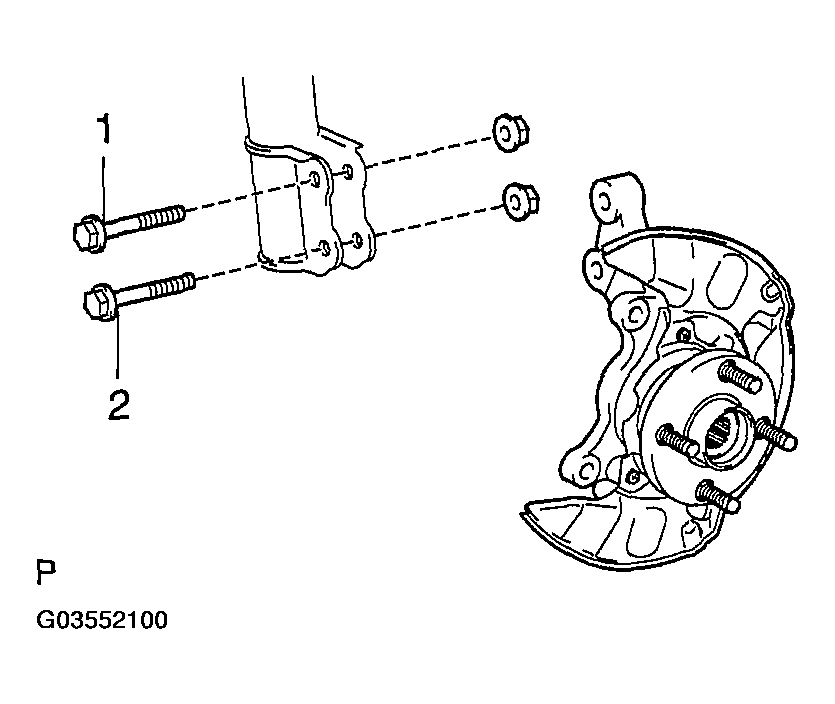

Fig 8: Removing Nut & Bolts

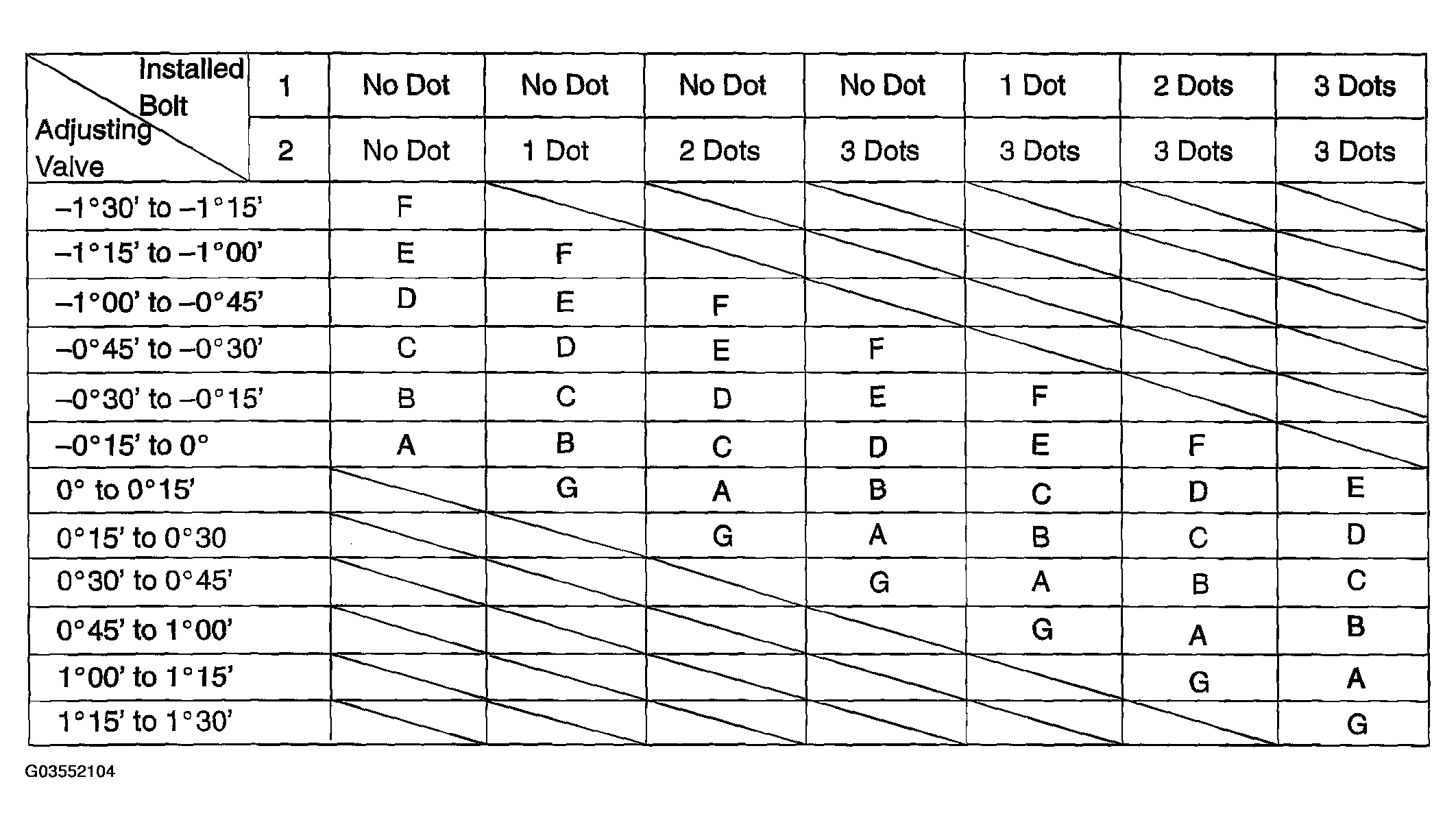

Table 2AZ-FE EXCEPT SPORT REFERENCE (Move the axle toward positive side)

Fig 9: Bolts Adjusting Value Specification Table

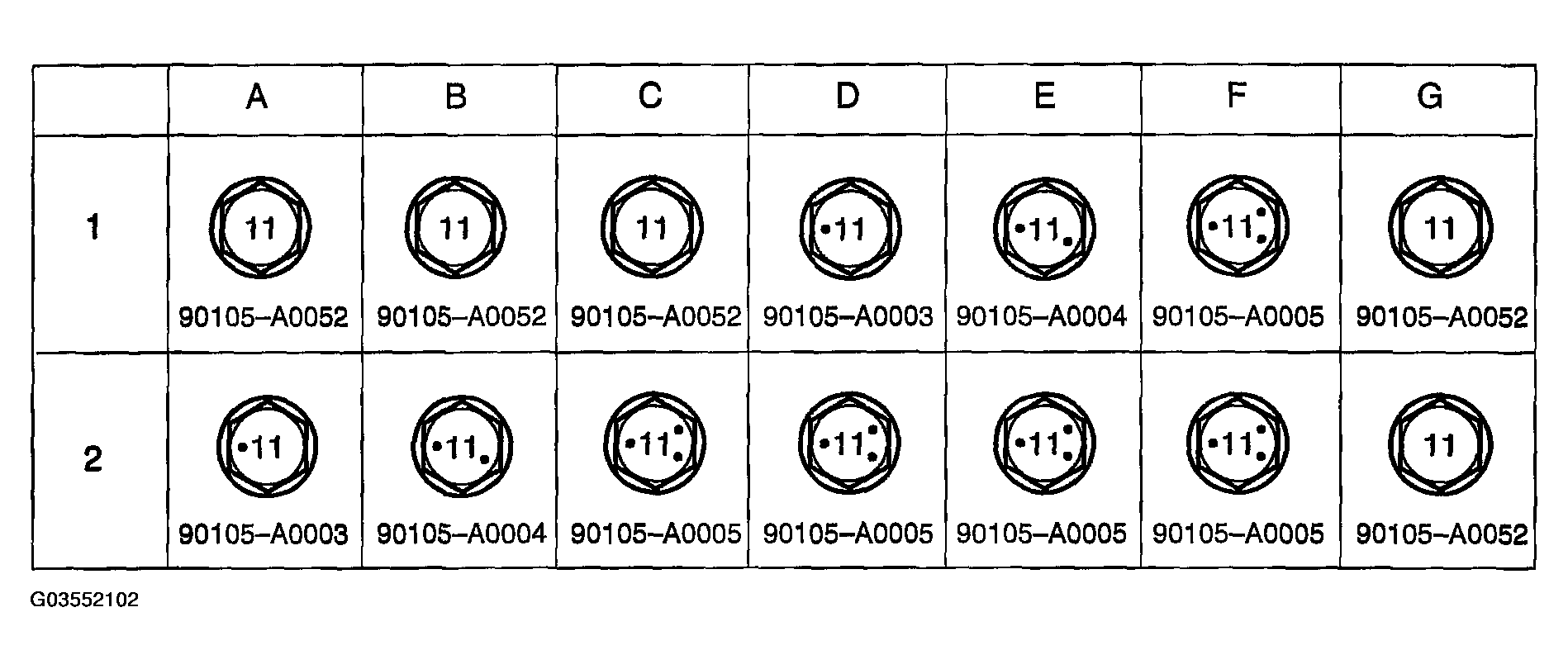

Selected Bolt Combination

Fig 10: Selected Bolt Combination Reference Table

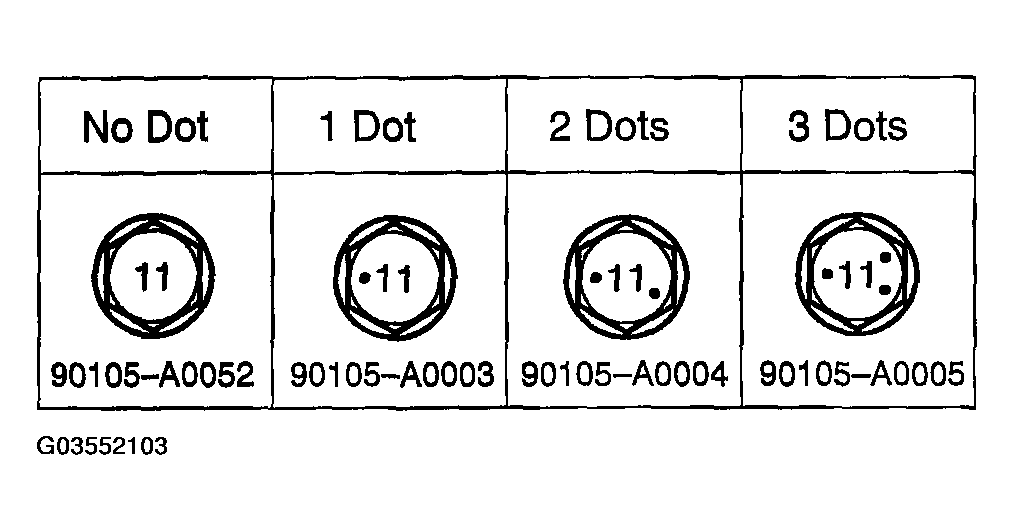

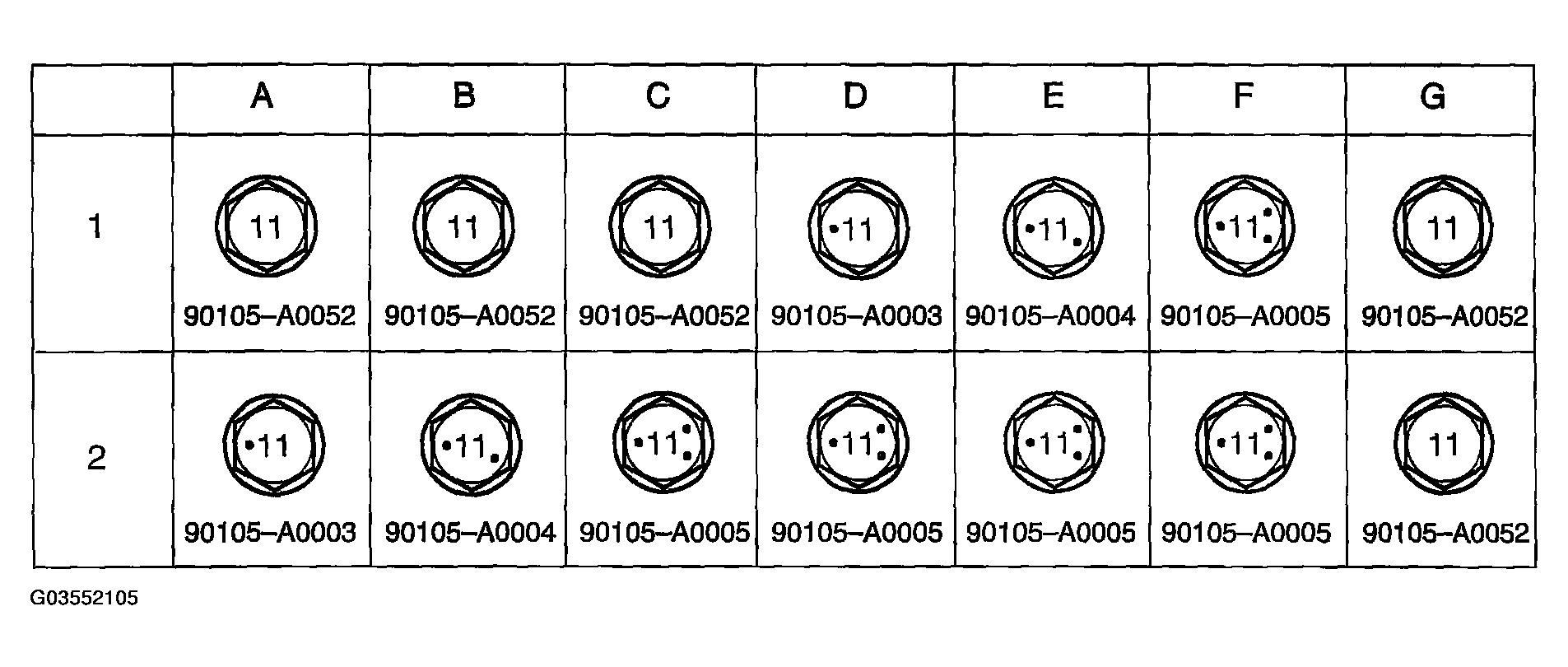

Bolt Distinguishing Mark

Fig 11: Bolt Distinguishing Mark Reference Table

The body and suspension may be damaged if the camber is not correctly adjusted according to the above table.

NOTE: Replace the nut with a new one when replacing the bolt.

Repeat the steps mentioned above. At step ( b), replace 1 or 2 selected bolts.
HINT:

Replace one bolt at a time when replacing 2 bolts.

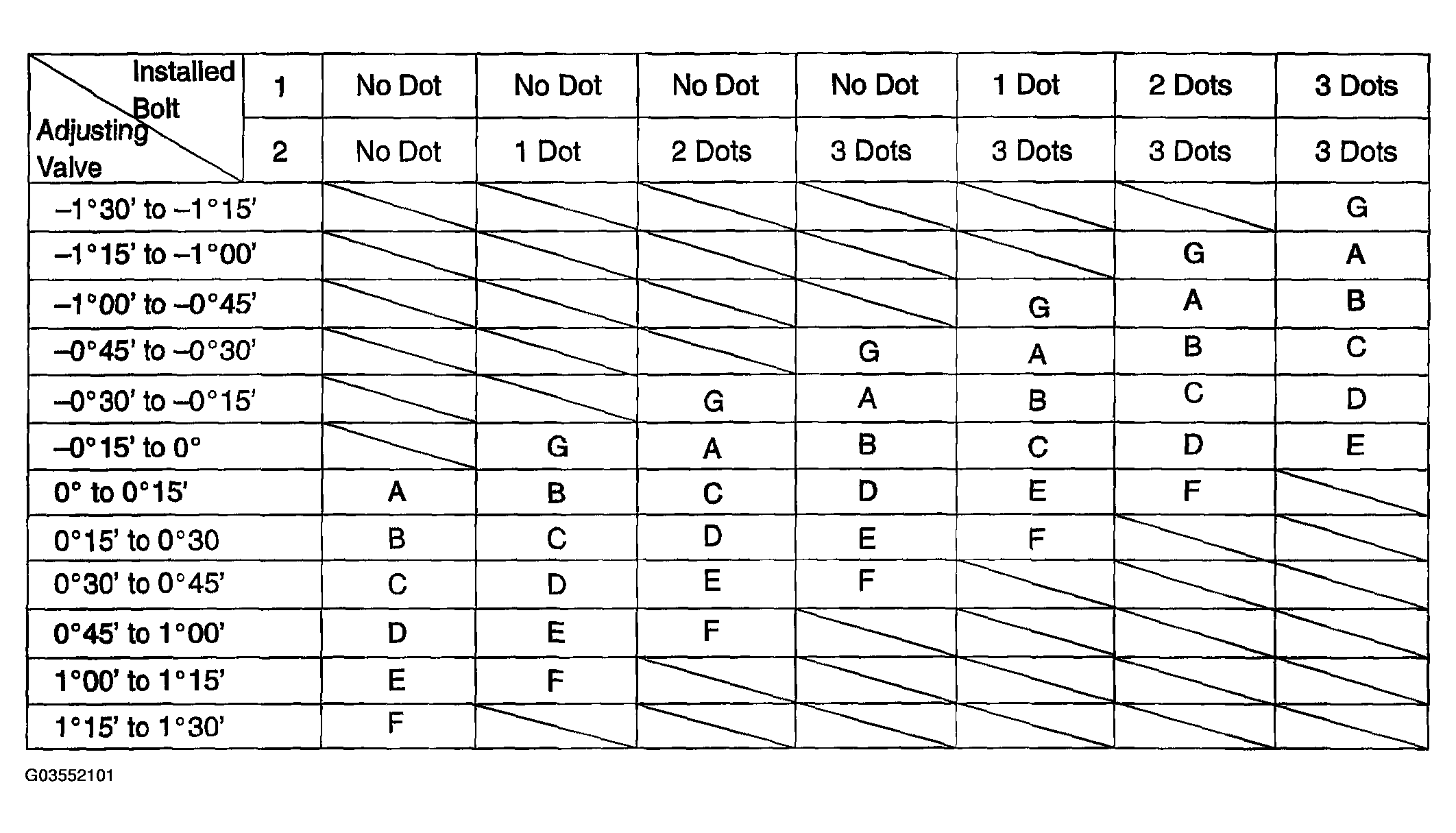

Table (2) (Move the axle toward negative side)

Fig 12: Bolts Adjusting Value Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Selected Bolt Combination

Fig 13: Selected Bolt Combination Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

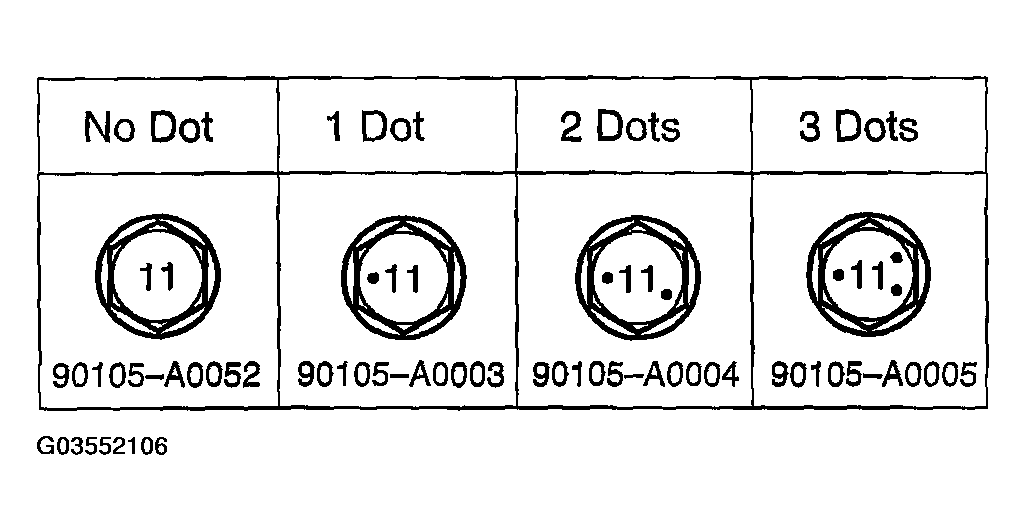

Bolt Distinguishing Mark

Fig 14: Bolt Distinguishing Mark Reference Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The body and suspension may be damaged if the camber is not correctly adjusted according to the above table.

NOTE: Replace the nut with a new one when replacing the bolt.
Repeat the steps mentioned above. At step ( b), replace 1 or 2 selected bolts.
HINT:

Replace one bolt at a time when replacing 2 bolts.
