Combination Meter ASSY: Overhaul

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.
See COMPONENTS

REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PLATE (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (SEE REPLACEMENT )
REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1 (SEE REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (SEE REPLACEMENT )
REMOVE COMBINATION METER ASSY

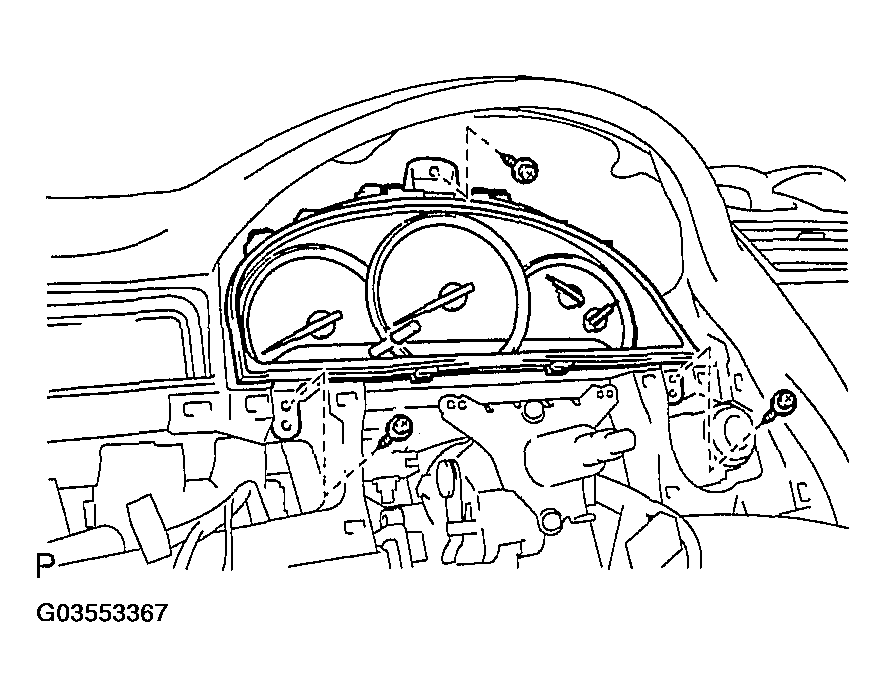

1. Remove the 3 screws.
2. Pull out the combination meter assy, then disconnect the connectors.

  Fig 1: Removing Combination Meter Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS

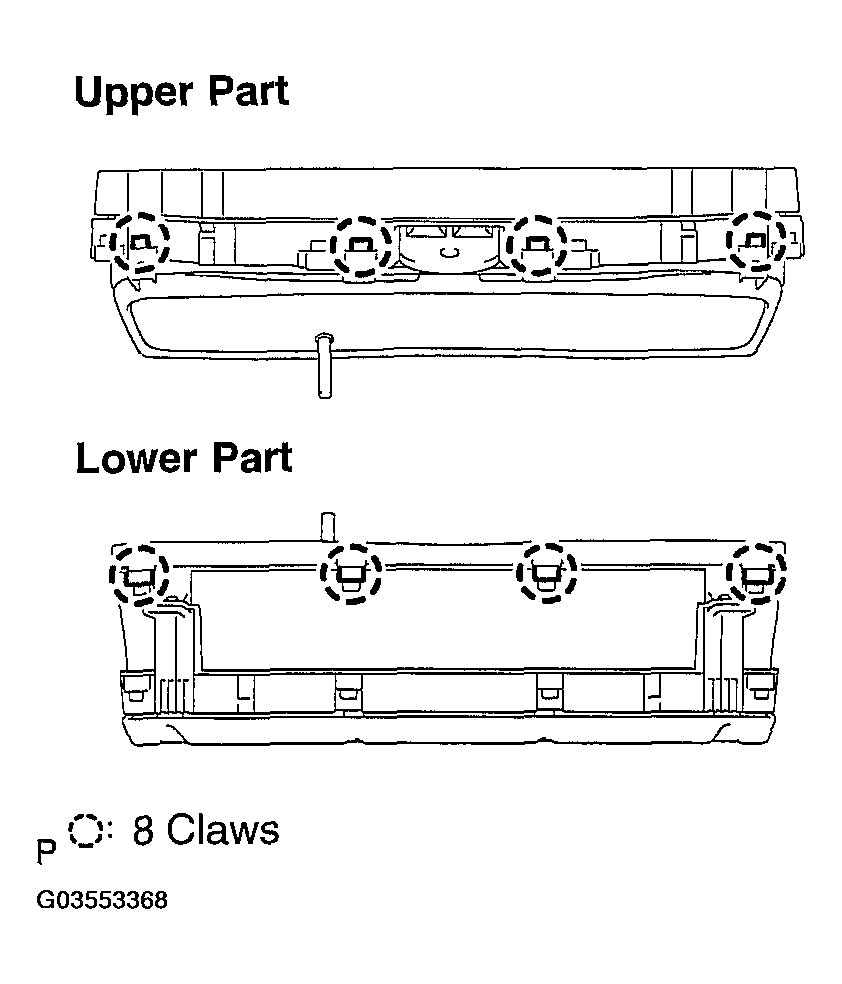

1. Disengage the 8 claws and remove the combination meter glass.

  Fig 2: Removing Combination Meter Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
